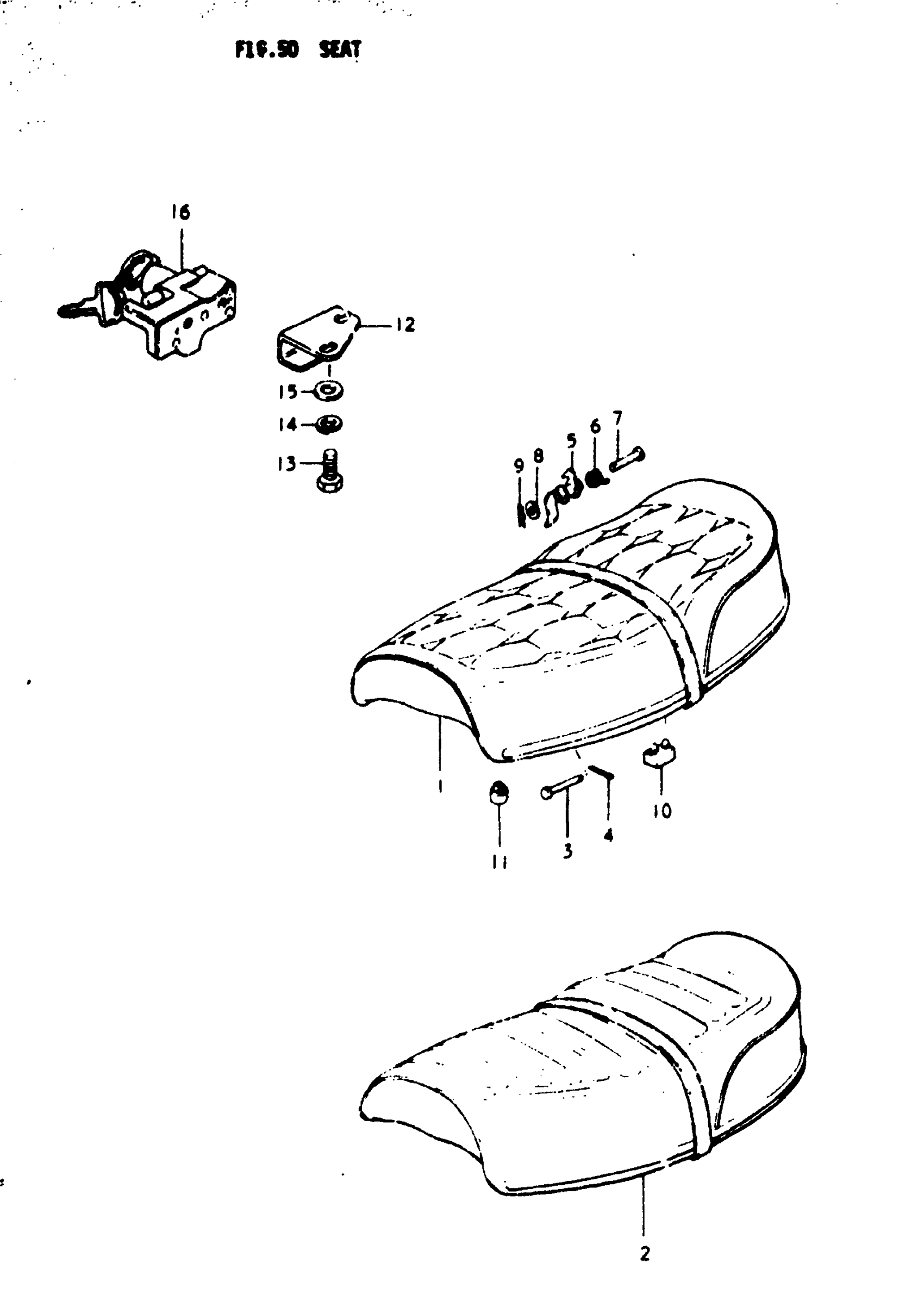

Suzuki GT750 (1977) SEAT Diagram

#

Description
Price

1

SEAT ASSY | K; TO 45100-31200-403 This part replaces 45100-31000-403.

45100-31X00-865

Unavailable

2

SEAT ASSY | L; TO 45100-31201-403

45100-31200-403

Unavailable

2

SEAT ASSY | M,A This part replaces 45100-31201-403.

45100-31X00-865

Unavailable

2

SEAT ASSY | B This part replaces 45100-31201-865.

45100-31X00-865

Unavailable

2

SEAT ASSY | L,M,A,B; OPT This part replaces 45100-31700-403.

45100-31X00-865

Unavailable

3

PIN | K,L,M,A,B

09200-06018

$2.06

4

.COTTER PIN | K,L,M,A,B This part replaces 04111-20158.

04111-2015A

$1.49

5

CLAMP, SEAT | K; TO 45210-33002

45210-33001

Unavailable

6

SPRING | K

09448-15001

Unavailable

7

PIN | K

09200-06018

$2.06

8

WASHER | K This part replaces 08322-21068.

08322-01067

$2.13

9

CLIP | K

09385-06002

Unavailable

10

CUSHION | K,L,M,A,B

09321-08006

$2.90

11

CUSHION | K,L,M,A,B

09321-10001

$2.61

12

PLATE, CLAMP GUIDE | L,M,A,B

45213-36200

Unavailable

13

BOLT | L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

14

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

15

WASHER | L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

16

LOCK ASSY, SEAT | L,M,A; TO 95700-36811 This part replaces 95700-36810.

95700-49811

Unavailable

16

LOCK ASSY, SEAT | B This part replaces 95700-36811.

95700-49811

Unavailable
