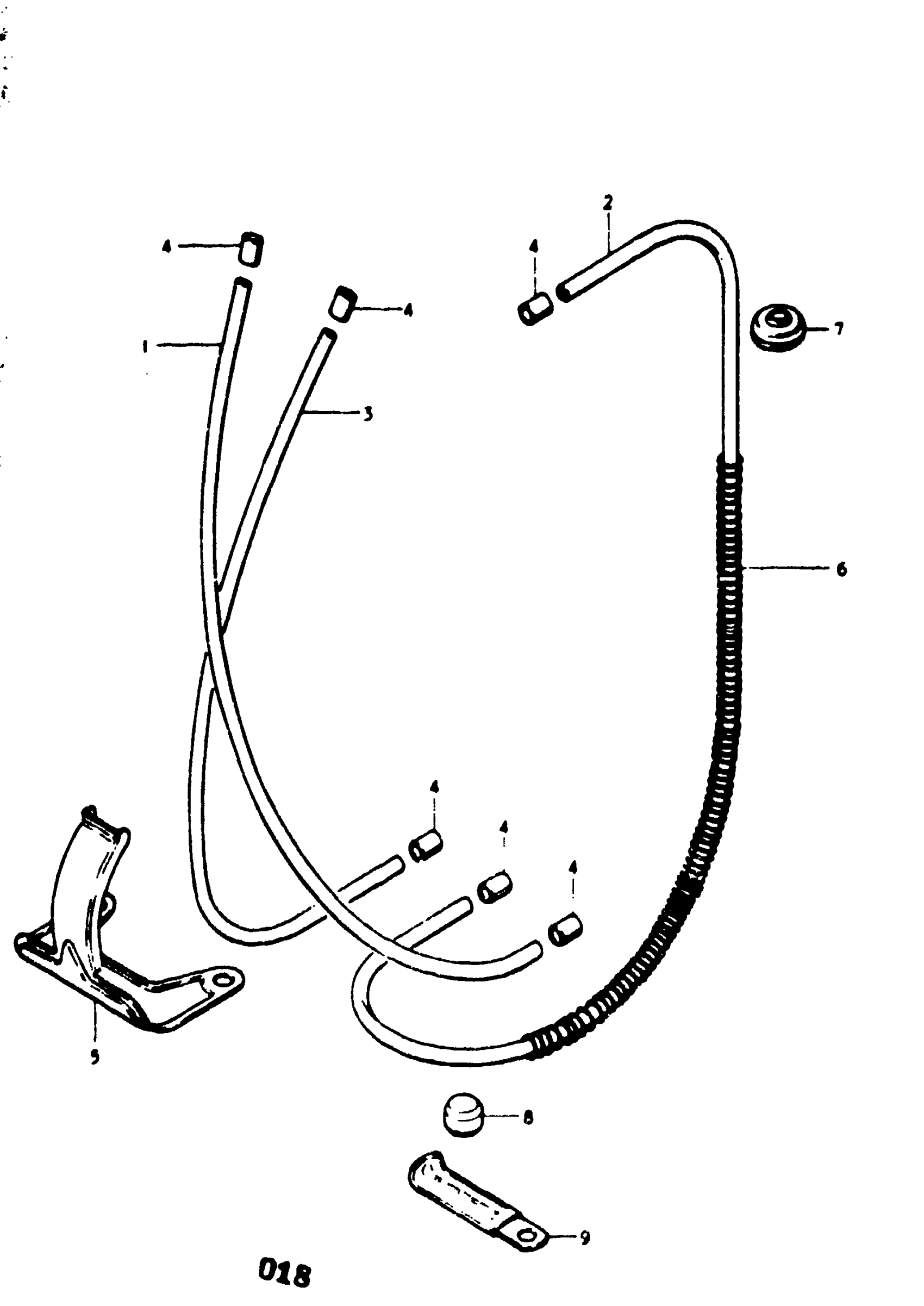

Suzuki GT750 (1977) S.R.I.S. HOSE Diagram

#

Description

Price

1

HOSE(2X5X600) | K,L,M,A; 2x5x395 TO 09343-02009 This part replaces 09343-02006.

09352-20504-600

$6.70

2

HOSE(2X5X600) | K,L,M,A; 2x5x600 F.NO. 31253~ This part replaces 09343-02009.

09352-20504-600

$6.70

3

HOSE(2X5X600) | K,L,M,A; 2x5x240 TO 09343-02009 2PCS:~F.NO. 31253 This part replaces 09343-02005.

09352-20504-600

$6.70

4

CLIP | K,L,M,A,B; FROM 09410-00042

09401-04401

$2.06

5

COVER, S.R.I.S. HOSE HOLDER | K,L,M,A,B; F. NO. 31253~

11446-31000

Unavailable

6

PROTECTOR, S.R.I.S. HOSE (2) | K,L,M,A,B; F. NO. 31253~

16871-31000

Unavailable

7

GROMMET | K,L,M,A,B; F. NO. 31253~

09308-04004

Unavailable

8

PAD, RUBBER | K,L,M,A,B; F. NO. 31253~ This part replaces 11151-18620.

11151-35600

$4.37

9

CLAMP | K,L This part replaces 09403-00069.

09404-06037

Unavailable

9

CLAMP | M,A,B This part replaces 09404-06402.

09404-06039

$1.74
