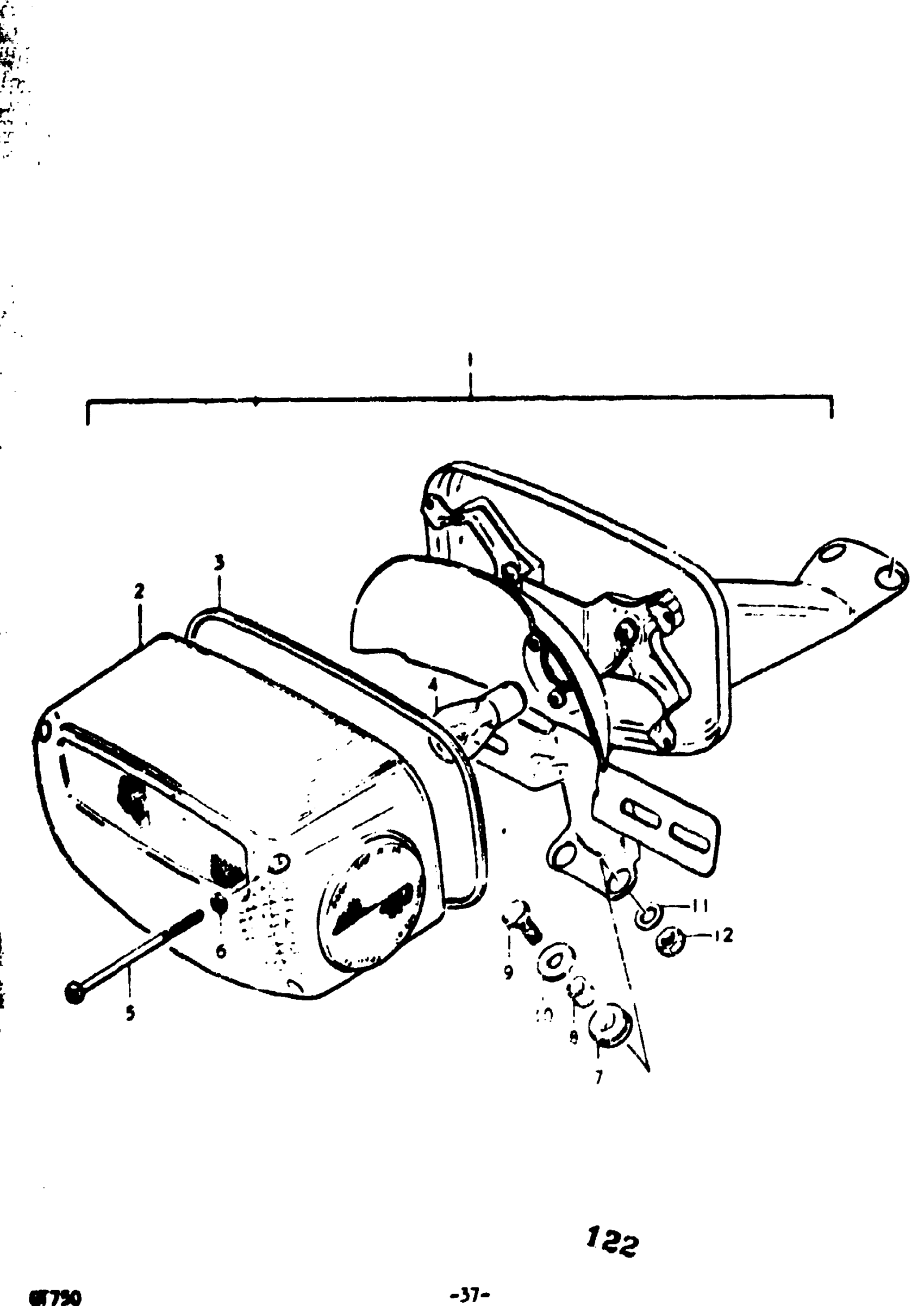

Suzuki GT750 (1977) REAR COMBINATION LAMP (GT750B) Diagram

#

Description

Price

1

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 2 - 8 This part replaces 35710-31210.

35710-31211

Unavailable

2

LENS,RR COMBI L | B This part replaces 35712-45010.

35712-45013

Unavailable

3

GASKET | B

35713-45010

Unavailable

4

BULB | B; 12V, 23/8W

09471-12035

$4.49

5

SCREW 4X55 | B This part replaces 02111-04558.

02112-04558

$1.65

6

GASKET | B

35627-43010

$2.28

7

CUSHION | B

35765-27691

Unavailable

8

SPACER | B This part replaces 35766-15010.

35766-37110

$5.28

9

BOLT, CANISTER | B This part replaces 01112-06168.

01500-06167

$1.97

10

WASHER (6.5X20X1.2) | B; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

11

WASHER | B This part replaces 08322-21068.

08322-01067

$2.13

12

.NUT | B This part replaces 08311-11068.

08310-00067

$2.13
