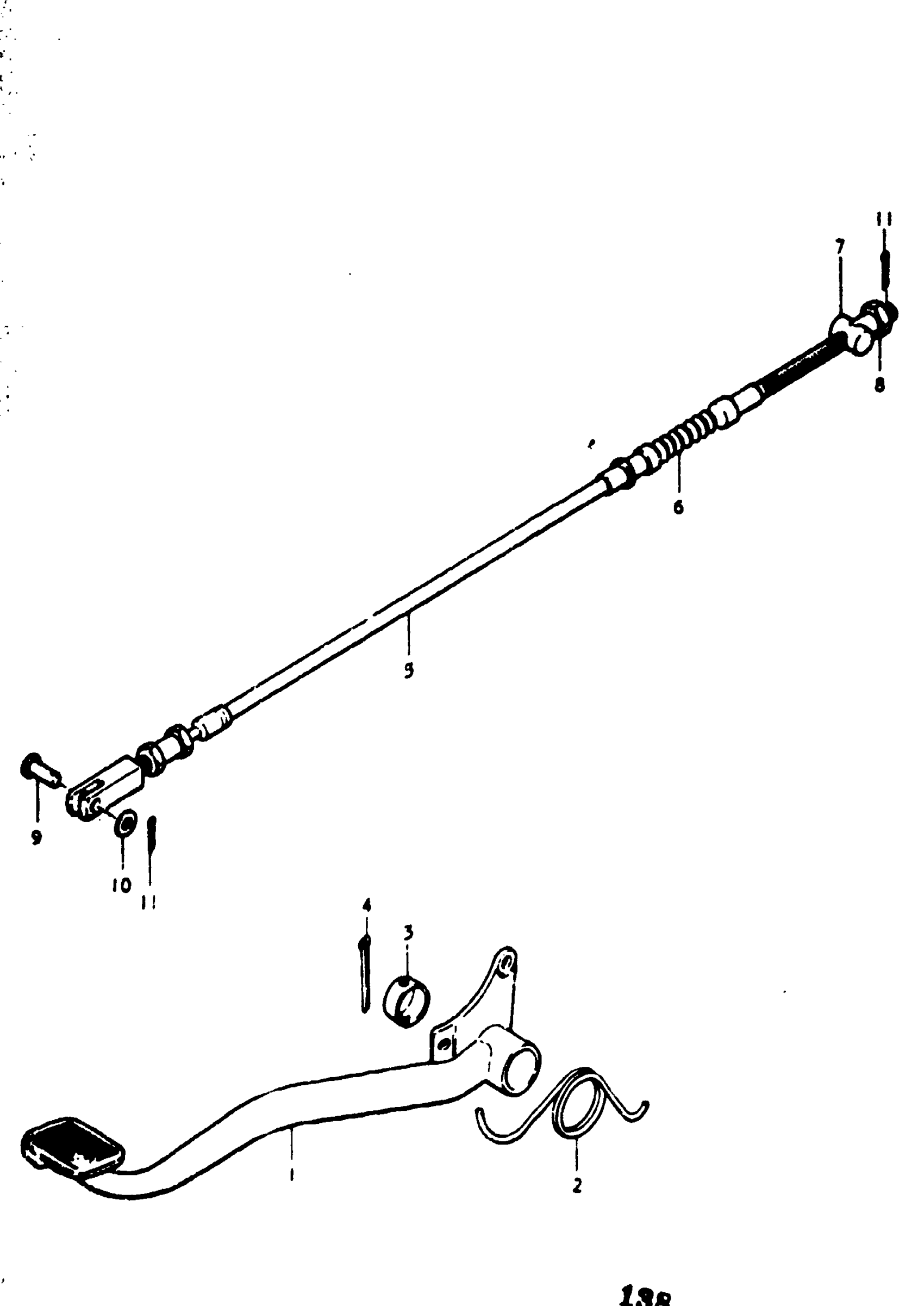

Suzuki GT750 (1977) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE | K,L,M,A,B

43110-31000

Unavailable

2

SPRING | K,L,M,A,B This part replaces 09448-37010.

09448-37010-XC0

$3.93

3

CAP | K

43135-31000

Unavailable

3

CAP | L,M,A,B

43135-31001

Unavailable

4

PIN, COTTER | K,L,M,A,B This part replaces 04111-40408.

04111-4040A

$1.49

5

CABLE ASSY, REAR BRAKE | K,L,M,A,B; Includes Item(s) 6 - 8

58500-31000

Unavailable

6

DUST SEAL | K,L,M,A,B

09287-05001

Unavailable

7

.PIN (13X18) | K,L,M,A,B This part replaces 09209-13003.

09209-13018

$3.42

8

.NUT | K,L,M,A,B This part replaces 09150-06001.

09150-06010

$3.10

9

PIN | K,L,M,A,B

09200-05001

$1.65

10

WASHER | K,L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

11

.COTTER PIN | K,L,M,A,B This part replaces 04111-20158.

04111-2015A

$1.49
