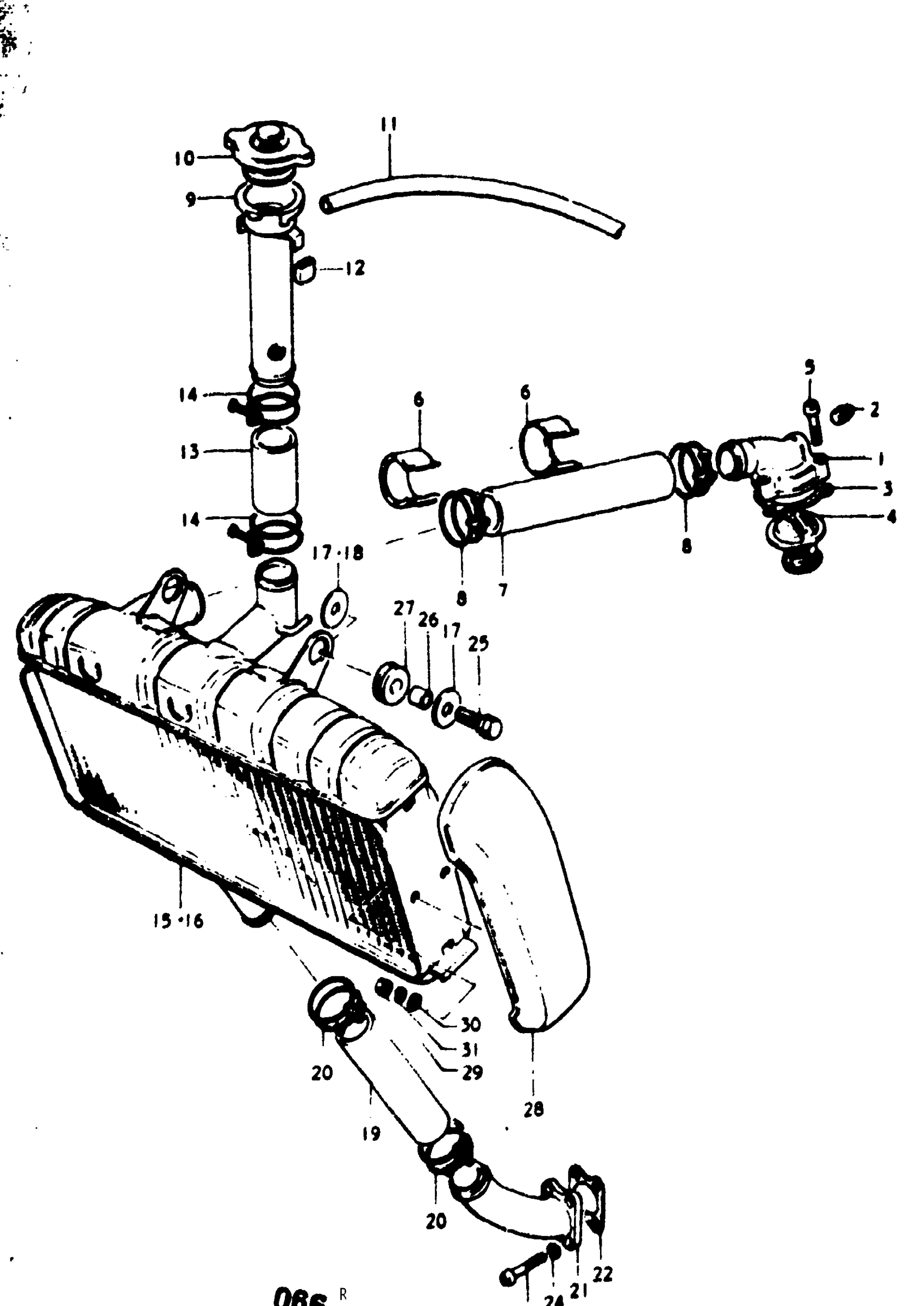

Suzuki GT750 (1977) RADIATOR Diagram

#

Description
Price

1

COVER, THERMOSTAT | K,L,M,A,B; FROM 17661-31000

17661-31002

Unavailable

2

PLUG | L,M,A,B

09246-16001

Unavailable

3

GASKET, THERMOSTAT COVER | K,L,M,A,B

17668-31000

Unavailable

4

THERMOSTAT, WATER | K,L,M,A,B

17670-65020

Unavailable

5

SCREW | K,L,M,A,B

02112-06307

$1.97

6

COVER, RADIATOR HOSE | K,LM,A,B

17856-31000

Unavailable

7

HOSE | K,L,M,A,B; 31x39x215

09343-31001

Unavailable

8

CLAMP | K,L,M,A,B; FROM 09400-00013 TO 09400-40401 This part replaces 09400-40301.

09400-40311

$2.85

9

PIPE, WATER INLET | K,L,M,A; FROM 17710-31010

17710-37010

Unavailable

9

PIPE, WATER INLET | B; Includes Item(s) 10 - 11

17710-31011

Unavailable

10

CAP COMP,RES TA | K,L,M,A,B This part replaces 17780-31010.

17920-78000

$40.10

11

HOSE, WATER OVER FLOW | K,L,M,A,B

17715-31010

Unavailable

12

CUSHION | K,L,M,A,B

09329-01003

$2.72

13

HOSE | K,L,M,A,B This part replaces 09343-31003.

09343-31001

Unavailable

14

CLAMP | K,L,M,A,B; FROM 94000-00013 TO 09400-40401 This part replaces 09400-40301.

09400-40311

$2.85

14

CLAMP | K,L,M,A,B This part replaces 09400-40401.

09400-40311

$2.85

15

RADIATOR SET | K; TO 17700-31830

17700-31813

Unavailable

16

RADIATOR SET | L,M,A,B; Includes Item(s) 17 - 18

17700-31830

Unavailable

17

WASHER, EXHAUST SUPPORT | 4)M,A; 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

18

WASHER AR | 2)M,A; 8.5x29x2

09160-08006

Unavailable

19

HOSE | K,L,M,A,B; 31x29x160 TO 09343-31001 This part replaces 09343-31002.

09343-31001

Unavailable

19

HOSE | K,L,M,A,B; 31x39x215

09343-31001

Unavailable

20

CLAMP | K,L,M,A,B; FROM 09400-00013 TO 09400-40401 This part replaces 09400-40301.

09400-40311

$2.85

20

CLAMP | K,L,M,A,B This part replaces 09400-40401.

09400-40311

$2.85

21

CONNECTOR, WATER INLET | K,L,M,A,B

17854-31000

Unavailable

22

GASKET, INLET CONNECTOR | K,L,M,A,B

17855-31000

Unavailable

23

SCREW | K,L,M,A,B This part replaces 02112-06258.

02112-06257

$1.78

24

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

25

BOLT | K,L,M,A,B

09111-08010

Unavailable

26

SPACER, TAIL COVER RR RR | K,L,M,A,B; 8.6x13.8x9 This part replaces 09180-08050.

09180-08199

$2.12

27

CUSHION | K,L,M,A,B This part replaces 09320-13005.

09320-13025

$2.72

28

COVER, RADIATOR SIDE | K

17760-31600

Unavailable

29

NUT | K This part replaces 08311-11058.

08310-00057

$1.84

30

WASHER | K This part replaces 08322-11058.

08322-01057

$2.13

31

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

$1.84
