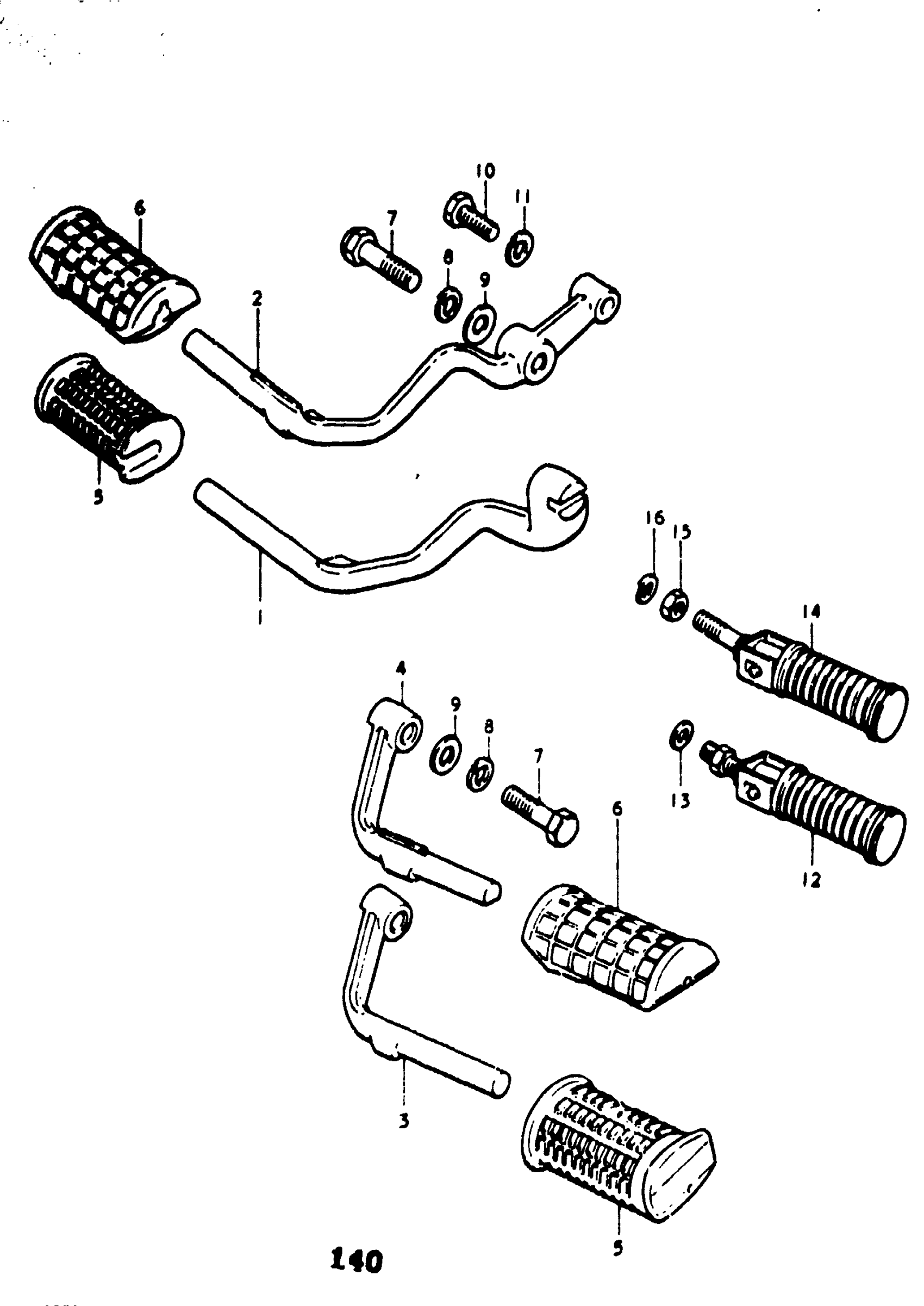

Suzuki GT750 (1977) POOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH | K

43511-31000

Unavailable

2

BAR, FRONT FOOTREST RH | L,M,A,B

43511-31200

Unavailable

3

BAR, FRONT FOOTREST LH | K; TO 43521-31200

43521-31000

Unavailable

4

BAR, FRONT FOOTREST LH | L,M,A,B

43521-31200

Unavailable

5

RUBBER | K

43551-31000

Unavailable

6

RUBBER | L,M,A,B

43551-36000

$20.10

7

BOLT | K,L; L:48

09104-12011

Unavailable

7

BOLT | M,A,B; L:45

09100-12101

Unavailable

8

LOCK WASHER | K,L,M,A,B This part replaces 08321-21128.

08321-01127

$2.06

9

WASHER | K This part replaces 08322-21128.

08322-01127

$1.84

10

BOLT | L,M,A,B This part replaces 01122-08358.

01500-0835B

$3.04

11

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

12

FOOTREST ASSY, PILLION | K

43600-31000

Unavailable

13

WASHER | K This part replaces 08322-11108.

08322-01107

$2.15

14

FOOTREST, PILLION | L; 12 SCREW TO 43600-33101 This part replaces 43600-33100.

43600-33101

Unavailable

14

FOOTREST ASSY, PILLION | L,M,A,B; (WITH 10 SCREW FITTINGS)

43600-33101

Unavailable

15

NUT, FIXED DRIVE FACE | L; 12 SCREW TO 43600-33101 (WITH 10SCREW FITTINGS) This part replaces 08312-31128.

09140-12039

$3.05

15

NUT | L,M,A,B; 12 SCREW TO 43600-33101 (WITH 10 SCREW FITTINGS) This part replaces 08312-32108.

08310-00107

$2.19

16

LOCK WASHER | L; 12 SCREW TO 43600-33101 (WITH 10SCREW FITTINGS) This part replaces 08321-21128.

08321-01127

$2.06

16

LOCK WASHER | L,M,A,B; 10SCREW This part replaces 08321-21108.

08321-01107

$1.84
