PISTON - CRANKSHAFT

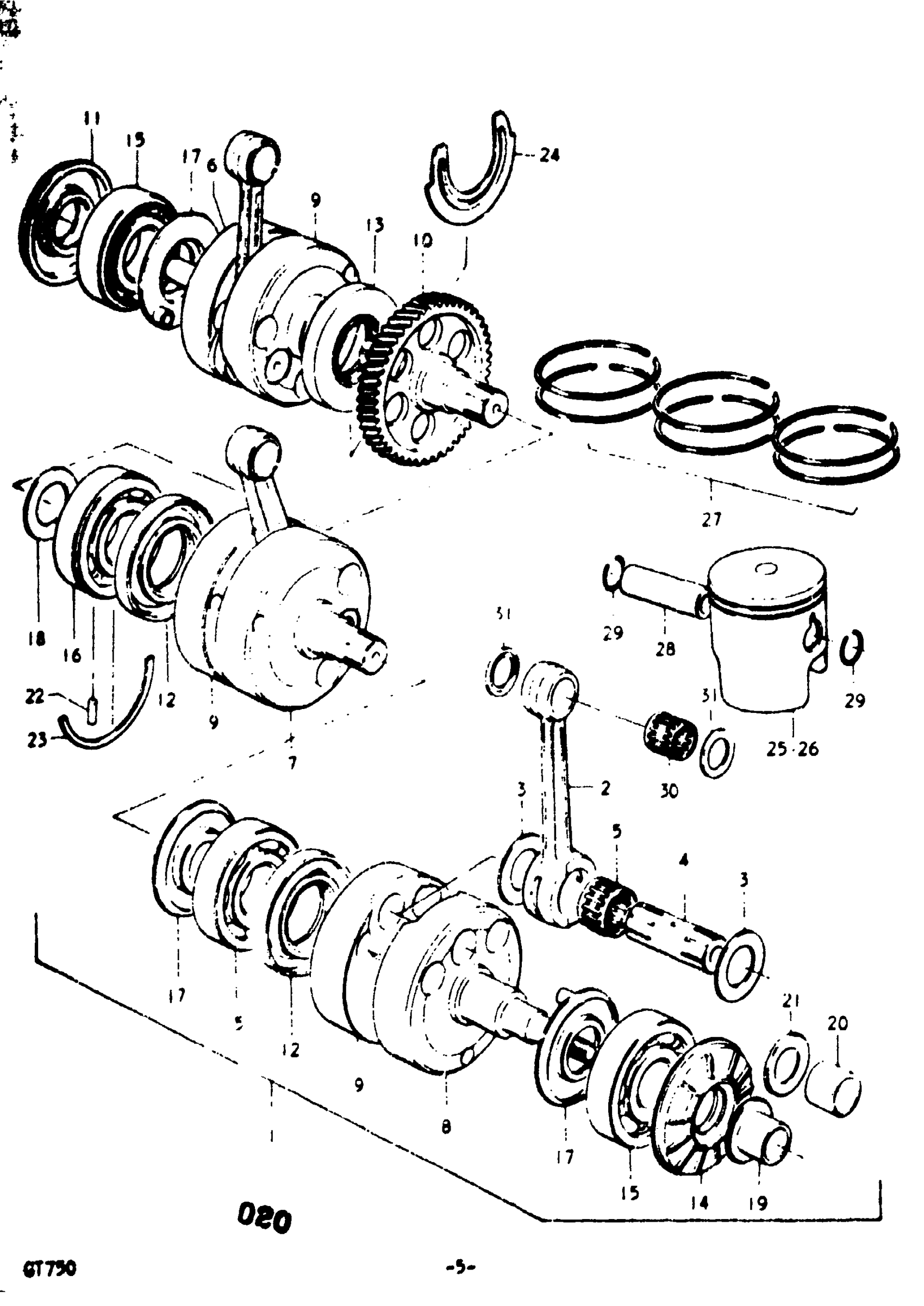

Suzuki GT750 (1977) PISTON - CRANKSHAFT Diagram
#
1
NO DESCRIPTION AVAILABLE | K,L,M,A; FROM 12200-31834 This part replaces 12200-31835.
12200-31004
Unavailable
1
NO DESCRIPTION AVAILABLE | B; SEE NOTE 2.; Includes Item(s) 2 - 21 This part replaces 12200-31842.
12200-31004
Unavailable
2
ROD, CONNECTING
12161-31000
Unavailable
2
ROD, CONNECTING | L,M,A,B
12161-31001
Unavailable
3
THRUST WASHER | K; 24x40x1.0
09160-24012
Unavailable
3
THRUST WASHER | L,M,A,B; 24x29x2
09160-24014
Unavailable
4
PIN, CRANK | K,L,M,A,B
12211-15000
Unavailable
6
CRANKSHAFT, RH | K,L,M,A,B
12221-31001
Unavailable
7
CRANKSHAFT, MIDDLE | K,L,M,A,B
12231-31001
Unavailable
8
CRANKSHAFT, LH | K,L,M,A; TO 12241-31004
12241-31003
Unavailable
8
CRANKSHAFT, LH | B
12241-31004
Unavailable
9
CRANK WEB, LH | K,L,M,A,B
12242-31001
Unavailable
10
SHAFT, PRIMARY DRIVE | K,L,M,A,B; NT:49
12251-31001
Unavailable
11
OIL SEAL | K,L,M,A,B
09289-25006
Unavailable
12
OIL SEAL | K,L,M,A,B
09289-38001
Unavailable
13
OIL SEAL | K,L,M,A,B; FROM 09289-38003
09289-38008
Unavailable
14
OIL SEAL | K,L,M,A,B
09289-30001
Unavailable
15
BEARING | K,L,M,A,B
09269-30007
Unavailable
16
BEARING | K,L,M,A,B
09262-30013
Unavailable
17
PLATE, OIL GUIDE | K,L,M,A,B
12511-31000
Unavailable
18
THRUST WASHER | K,L,M,A,B; 30x58x1.0
09160-30014
Unavailable
19
BUSHING | K; ~F.NO.12172 TO 09300-20014 SEE NOTE 3.
09301-20001
Unavailable
20
BUSHING | L,M,A,B; 20x25x20
09300-20014
Unavailable
21
WASHER | L,M,A,B; 20x40x2.5
09160-20026
Unavailable
23
C RING | K,L,M,A,B
09390-78002
Unavailable
24
C RING | K,L
09390-78003
Unavailable
25
PISTON, RH | K; TO 12110-31001 This part replaces 12110-31000.
12110-31002
Unavailable
25
PISTON, RH | L,M; TO 12110-31002
12110-31001
Unavailable
25
PISTON, RH | A,B
12110-31002
Unavailable
25
PISTON SET | K; OS:0.5 TO 12110-31711 OPT This part replaces 12110-31710.
12103-31830-050
Unavailable
25
PISTON, RH | L,M,A; OS:0.5 TO 12110-31712 OPT
12110-31711
Unavailable
25
PISTON SET | A,B; OS:0.5 OPT This part replaces 12110-31712.
12103-31830-050
Unavailable
25
PISTON SET, OS: | K; OS:1.0 TO :2110-31721 OPT This part replaces 12110-31720.
12103-31830-100
Unavailable
25
PISTON SET, OS: | L,M; OS:1.0 TO 12110-31722 OPT This part replaces 12110-31721.
12103-31830-100
Unavailable
25
PISTON SET, OS: | A,B; OS:1.0 OPT This part replaces 12110-31722.
12103-31830-100
Unavailable
26
PISTON, LH & MIDDLE | K; TO 12120-31001 This part replaces 12120-31000.
12120-31002
Unavailable
26
PISTON, LH & MIDDLE | L,M; TO 12120-31002 This part replaces 12120-31001.
12120-31002
Unavailable
26
PISTON, LH & MIDDLE | A,B
12120-31002
Unavailable
26
PISTON SET,OS:0 | K; OS:0.5 TO 12120-31711 OPT This part replaces 12120-31710.
12103-31870-050
$160.90
26
PISTON SET,OS:0 | L,M; OS:0.5 TO 12120-31712 OPT This part replaces 12120-31711.
12103-31870-050
$160.90
26
PISTON SET,0S: | K; OS:1.0 TO 12120-31721 OPT This part replaces 12120-31720.
12103-31870-100
Unavailable
26
PISTON SET,0S: | L,M; OS:5.0 TO 12120-31722 OPT This part replaces 12120-31721.
12103-31870-100
Unavailable
26
PISTON SET,0S: | A,B; OS:1.0 OPT This part replaces 12120-31722.
12103-31870-100
Unavailable
27
RING SET, PISTON | K,L,M,A,B; OS:0.5 OPT FROM 12149-31719
12140-30010-050
Unavailable
27
RING SET, PISTON | K,L,M,A,B; CS:1.0 OPT FROM 12149-31720
12140-30010-100
Unavailable
30
BEARING (18X23X24) | K,L,M,A This part replaces 09263-18005.
09263-18021
Unavailable
30
BEARING (18X23X24) | B This part replaces 09263-18009.
09263-18021
Unavailable
