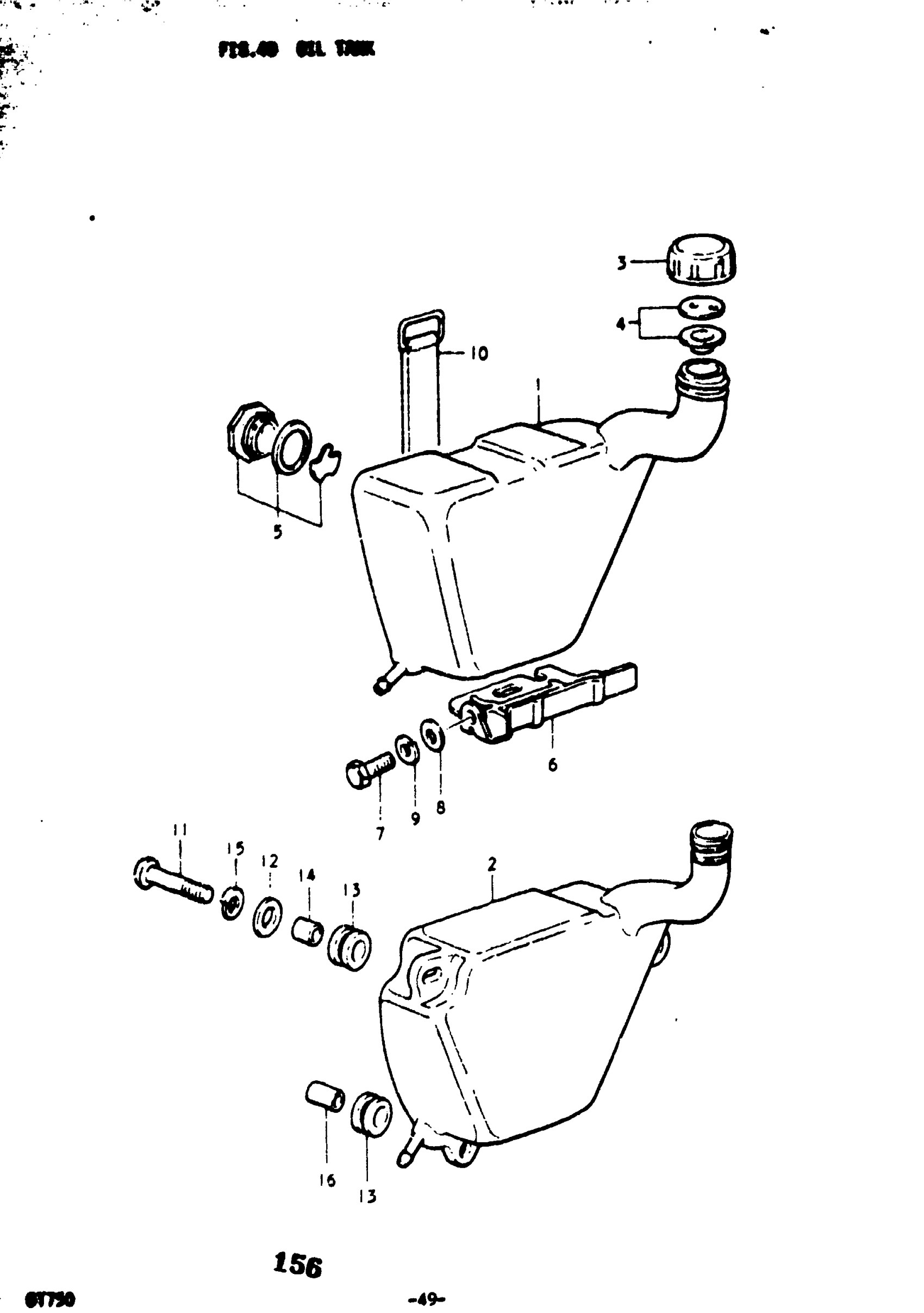

Suzuki GT750 (1977) OIL TANK Diagram

#

Description
Price

1

TANK, OIL | K

44611-31000

Unavailable

2

TANK, OIL | L,M,A,B

44611-31200

Unavailable

3

CAP, OIL TANK | K This part replaces 44651-05000.

44651-05003

$5.05

3

CAP, OIL TANK | L,M,A,B This part replaces 44651-05001.

44651-05003

$5.05

4

GASKET SET | K; TO 44600-35820 This part replaces 44660-33808.

44600-30833

$5.42

4

GASKET SET | L,M,A; TO 44600-35821 This part replaces 44600-35820.

44600-30833

$5.42

4

GASKET SET | B This part replaces 44600-35821.

44600-30833

$5.42

5

OIL LEVEL INSPE | B; TO 44600-31830 This part replaces 44640-31807.

44600-31832

$11.07

5

OIL LEVEL INSPE | L,M,A,B This part replaces 44600-31830.

44600-31832

$11.07

6

HOLDER, OIL TANK | K

44820-31000

Unavailable

7

BOLT | K This part replaces 01112-06128.

01500-06127

$1.97

8

WASHER | K This part replaces 08322-21068.

08322-01067

$2.13

9

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

10

BAND | K

09462-00055

$6.09

11

SCREW | L,M,A,B This part replaces 02112-06208.

02112-06207

$1.78

12

WASHER | L,M,A,B; 6.5x18x1.6 This part replaces 09160-06007.

09160-06084

$1.78

13

CUSHION | L,M,A,B This part replaces 09320-10008.

09320-10075

$1.93

14

SPACER (6.5X10X10) | L,M,A,B This part replaces 09180-06030.

09180-06310

$1.91

15

LOCK WASHER | L,M,A This part replaces 08321-21068.

08321-01067

$2.13

16

SPACER | L,M,A,B

09180-06036

Unavailable
