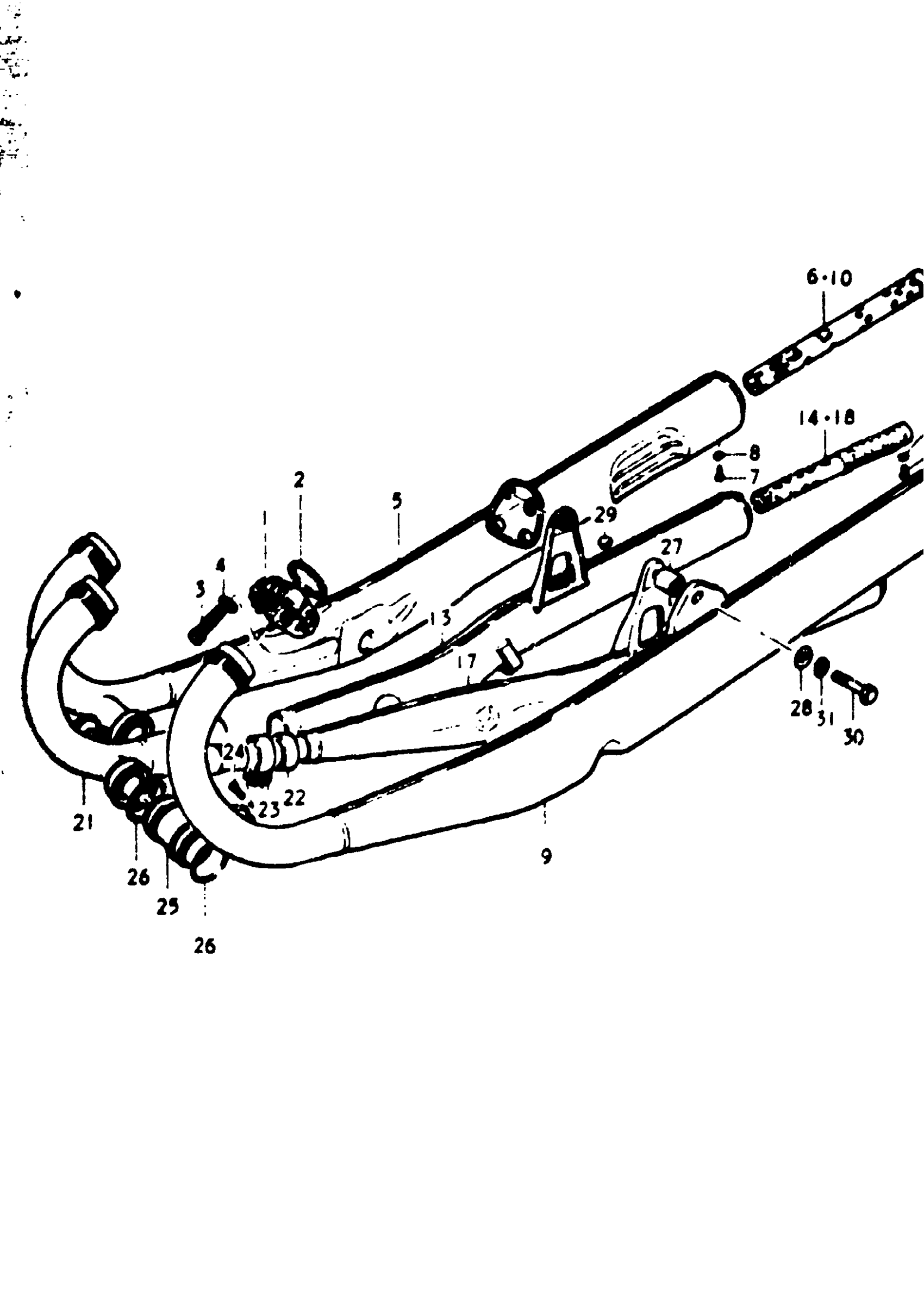

Suzuki GT750 (1977) MUFFLER (GT750L Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | L,M,A,B; FROM 14182-31001 This part replaces 14182-31000.

14182-31001

Unavailable

2

GASKET,EXHAUST | L,M,A,B This part replaces 14181-15010.

14181-15020

Unavailable

3

BOLT | L,M,A,B This part replaces 01221-08357.

01204-08357

$2.09

4

.LOCK WASHER | L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

5

NO DESCRIPTION AVAILABLE | L This part replaces 14301-31201.

14301-31201-H01

Unavailable

5

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 6 This part replaces 14301-31620.

14301-31620-H01

Unavailable

6

PIPE, BAFFLE RH | L,M,A,B

14510-31000

Unavailable

7

BOLT | L,M,A,B; Includes Item(s) 8

09128-05101

$1.49

8

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

9

NO DESCRIPTION AVAILABLE | L This part replaces 14302-31201.

14302-31201-H01

Unavailable

9

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 10 - 12 This part replaces 14302-31620.

14302-31620-H01

Unavailable

10

PIPE, BAFFLE LH | L,M,A,B

14510-31000

Unavailable

11

BOLT | L,M,A,B

09128-05101

$1.49

12

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

13

NO DESCRIPTION AVAILABLE | L This part replaces 14303-31200.

14303-31620-H01

Unavailable

13

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 14 - 16 This part replaces 14303-31620.

14303-31620-H01

Unavailable

14

PIPE, BAFFLE CENTER | L,M,A,B

14610-31000

Unavailable

15

BOLT | L,M,A,B

09128-05101

$1.49

16

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

17

NO DESCRIPTION AVAILABLE | L This part replaces 14304-31200.

14304-31620-H01

Unavailable

17

NO DESCRIPTION AVAILABLE | M,A,B; Includes Item(s) 18 - 20 This part replaces 14304-31620.

14304-31620-H01

Unavailable

18

PIPE, BAFFLE CENTER | L,M,A,B

14610-31000

Unavailable

19

BOLT | L,M,A,B

09128-05101

$1.49

20

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

21

PIPE, EXHAUST | L

14170-31000

Unavailable

21

PIPE, EXHAUST | M,A,B

14170-31620

Unavailable

22

CONNECTOR, CENTER MUFFLER | L,M,A,B This part replaces 14771-06080.

14771-06090

$10.14

23

CLAMP | L,M,A,B

09402-36708

Unavailable

24

SCREW | L,M,A,B This part replaces 02112-06208.

02112-06207

$1.78

25

PIPE, EXHAUST COUPLER | L

14211-31001

Unavailable

26

O-RING | L This part replaces 09280-44003.

09280-43002

$2.12

27

BUSH MUFFLER | L,M,A,B This part replaces 09319-10016.

09319-10029

Unavailable

28

WASHER | L,M,A,B This part replaces 08322-21108.

08322-01107

$2.15

29

CUSHION | L,M,A,B

09321-10007

$2.71

30

BOLT | L,M,A,B This part replaces 01122-10558.

01500-1055A

$3.55

31

LOCK WASHER | L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84
