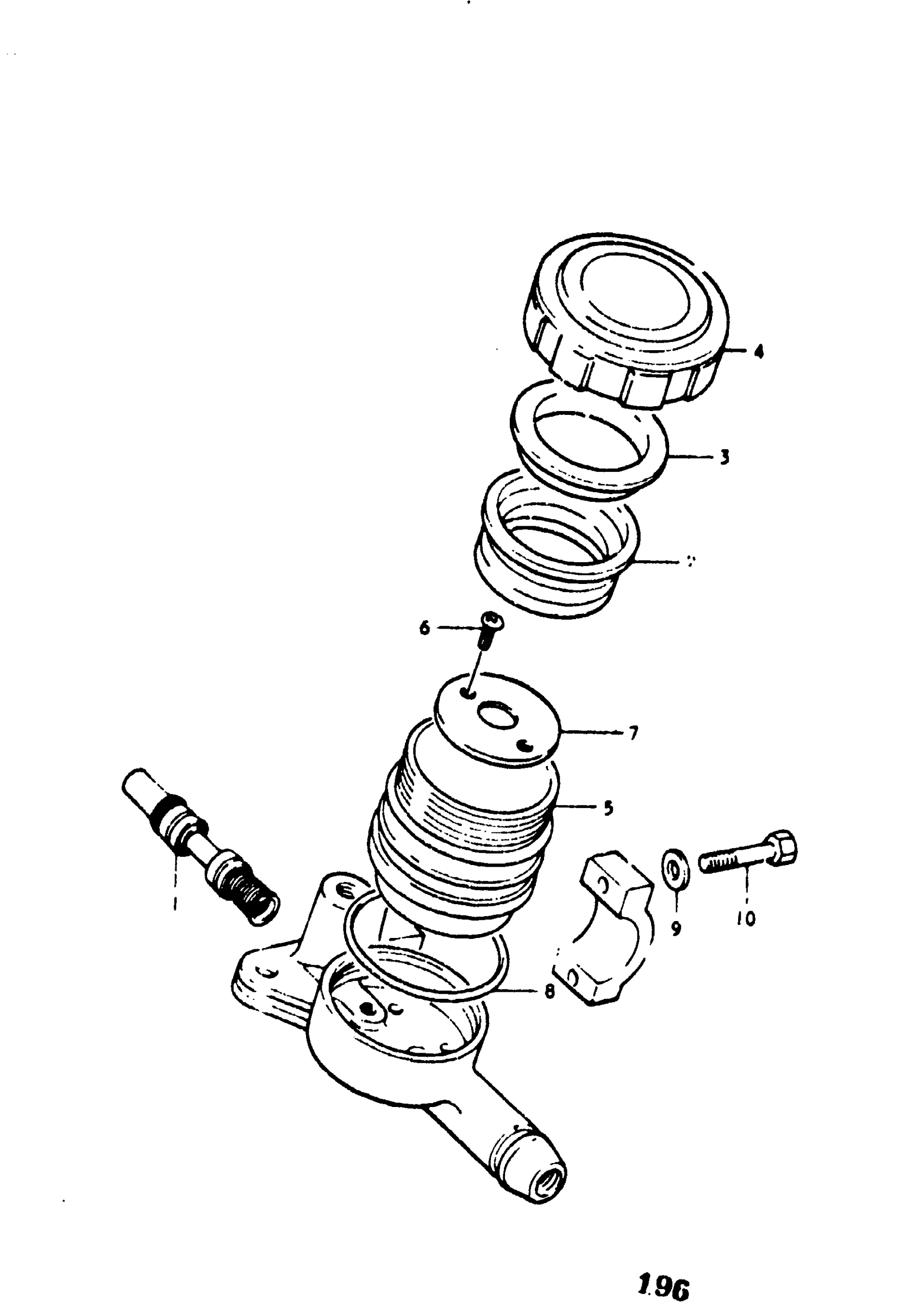

Suzuki GT750 (1977) MASTER CYLINDER (GT750L Diagram

#

Description
Price

CYLINDER ASSY, MASTER | L; TO 59600-31621 (WITH 56741-31700)

59600-31620

Unavailable

NO DESCRIPTION AVAILABLE | M,A,B; FROM 59600-31621; Includes Item(s) 1 - 4 This part replaces 59600-31622.

59600-316V0

Unavailable

1

PISTON & CUP SET | L,M,A,B This part replaces 59600-31827.

59600-45811

Unavailable

2

DIAPHRAGM | L,M,A,B This part replaces 59667-18440.

59667-18441

$10.28

3

PLATE | L,M,A,B

59668-18441

$4.52

4

CAP, RESERVOIR | L,M,A; FROM 59669-33600~F.NO.64259TO 59669-33602

59669-33601

Unavailable

4

CAP | B; Includes Item(s) 5 - 10 This part replaces 59669-33602.

59669-07D00

$31.72

5

RESERVIOR | L,M,A; ~F.NO.64259 TO 59687-33603 This part replaces 59687-33602.

59687-45000

Unavailable

5

RESERVIOR | B This part replaces 59687-33603.

59687-45000

Unavailable

6

SCREW | L,M,A,B This part replaces 09125-03105.

09125-03105-XC0

$2.23

7

PLATE, RESERVOIR | L,M,A,B This part replaces 59685-33600.

59685-33601

Unavailable

8

O RING | L,M,A,B

59686-33600

Unavailable

9

WASHER | L,M,A,B This part replaces 08322-21068.

08322-01067

$2.13

10

BOLT | L,M,A,B This part replaces 01112-06258.

01500-06257

$1.97
