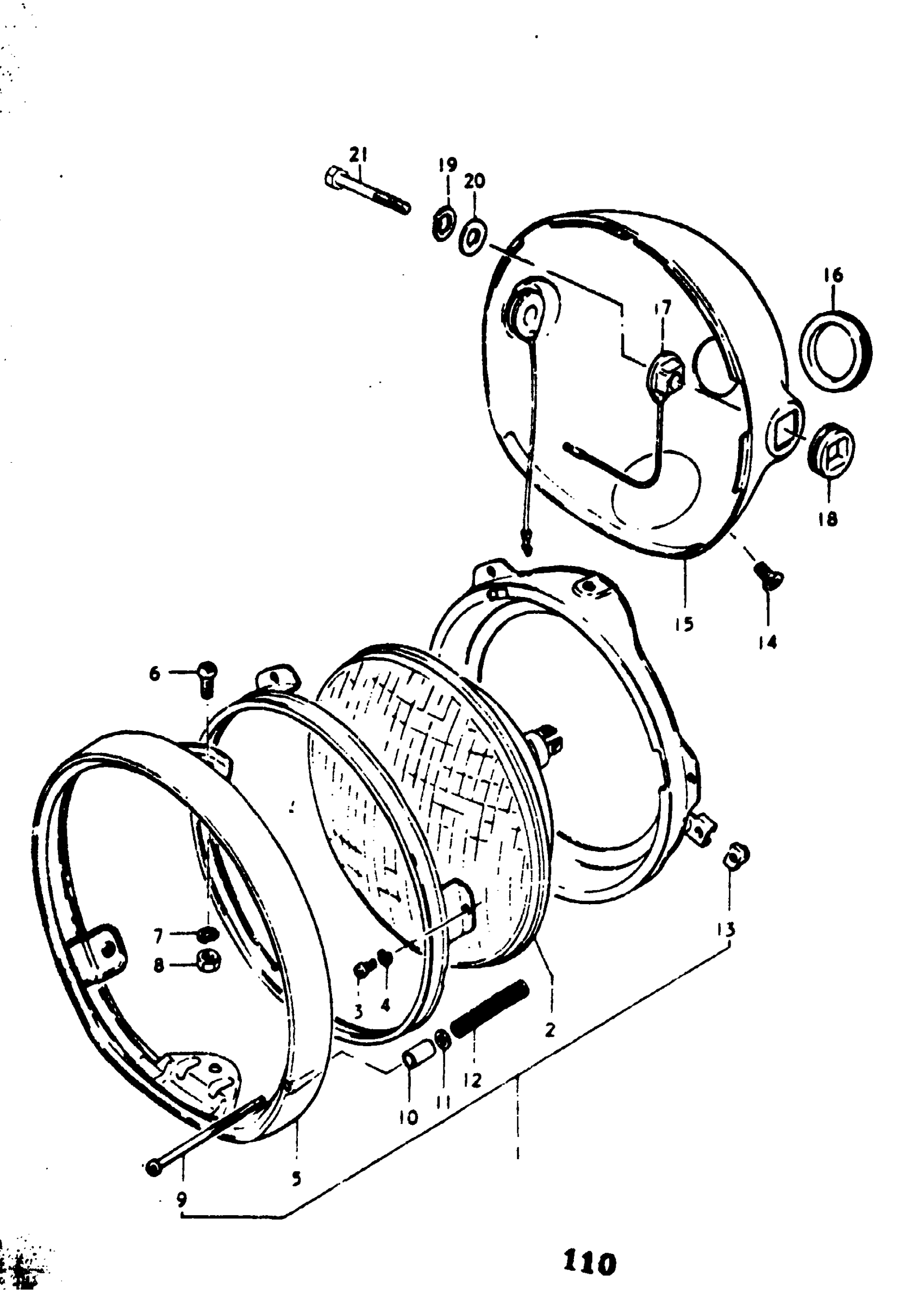

Suzuki GT750 (1977) HEADLAMP [ UP TO F.NO.37422 (GT750K) ] Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K; ~F.NO. 37422 TO 35100-34610 (WITH 51810-31031-195; Includes Item(s) 2 - 13 This part replaces 35100-31610.

35100-34610

Unavailable

2

UNIT | K; OR 51810-31031-126

35121-31610

Unavailable

3

SCREW | K This part replaces 02111-04087.

02112-04087

$1.49

4

LOCK WASHER | K This part replaces 08321-21048.

08321-0104A

$1.84

5

RIM | K

35111-31610

Unavailable

6

SCREW | K

02112-05107

$1.49

7

LOCK WASHER | K This part replaces 08321-21058.

08321-0105A

$1.84

8

NUT | K This part replaces 08311-11058.

08310-00057

$1.84

9

SCREW | K

35151-31610

Unavailable

10

SPACER | K

35165-31610

Unavailable

11

WASHER | K This part replaces 08322-21048.

08322-01047

$1.86

12

SPRING | K

35154-31610

Unavailable

13

NUT | K

35152-15611

$3.25

14

SCREW | K This part replaces 02231-05128.

02122-05127

$1.93

15

NO DESCRIPTION AVAILABLE | K This part replaces 51810-31030-707.

51810-31030-737

Unavailable

15

NO DESCRIPTION AVAILABLE | K; Includes Item(s) 16 - 18 This part replaces 51810-31030-708.

51810-31030-737

Unavailable

16

CUSHION | K

51827-31030

Unavailable

17

SPACER | K

51821-31030

Unavailable

18

GROMMET | K; TO 51845-31031

51845-31030

Unavailable

19

LOCK WASHER | K This part replaces 08321-21108.

08321-01107

$1.84

20

WASHER | K This part replaces 08322-11108.

08322-01107

$2.15

21

BOLT 10X30 CROW | K This part replaces 01221-10307.

01204-10307

$2.06
