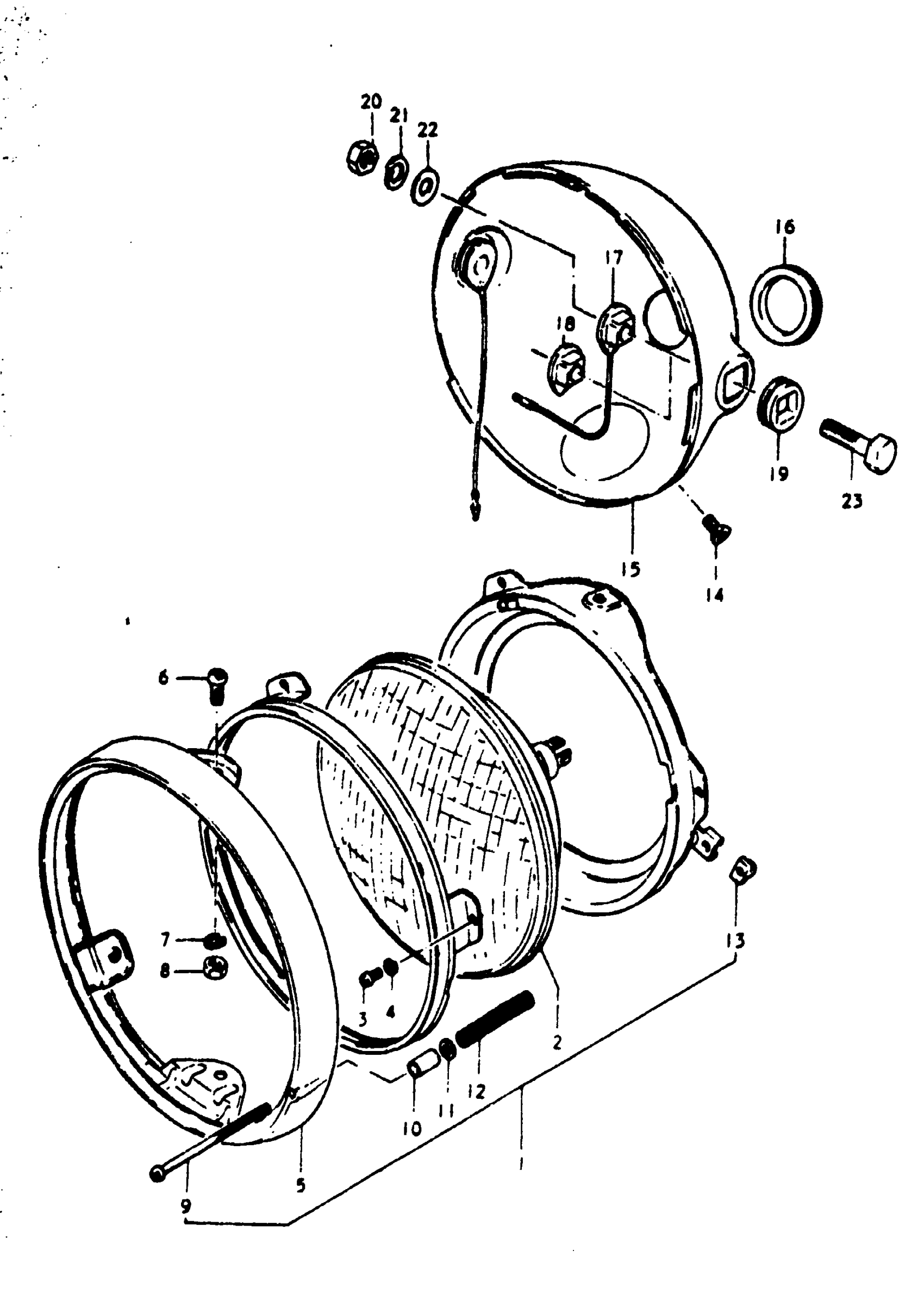

Suzuki GT750 (1977) HEADLAMP [ FROM F.NO.37423. (GT750K Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,L,M,A,B; F.NO.37423~; Includes Item(s) 2 - 13

35100-34610

Unavailable

2

UNIT | K,L,M,A,B

35121-31610

Unavailable

3

SCREW | K,L,M,A,B This part replaces 02111-04087.

02112-04087

$1.49

4

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

5

RIM | K,L,M,A,B

35111-34030

Unavailable

6

SCREW | K,L,M,A,B

02112-05107

$1.49

7

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

8

NUT | K,L,M,A,B This part replaces 08311-11058.

08310-00057

$1.84

9

SCREW | K,L,M,A,B

35151-31610

Unavailable

10

SPACER | K,L,M,A,B

35165-31610

Unavailable

11

WASHER | K,L,M,A,B This part replaces 08322-21048.

08322-01047

$1.86

12

SPRING | K,L,M,A,B

35154-31610

Unavailable

13

NUT | K,L,M,A,B

35152-15611

$3.25

14

SCREW | K,L,M,A,B This part replaces 02231-05128.

02122-05127

$1.93

15

HOUSING, HEADLAMP | K

51810-31031-707

Unavailable

15

HOUSING, HEADLAMP | K

51810-31031-708

Unavailable

15

HOUSING, HEADLAMP | L,M,A

51810-34130

Unavailable

15

HOUSING, HEADLAMP | B; Includes Item(s) 16 - 19 This part replaces 51810-34133-291.

51810-34134-291

Unavailable

16

CUSHION | K,L,M,A,B

51827-31030

Unavailable

17

SPACER | K,L,M,A

51821-31030

Unavailable

18

SPACER | B

51821-37000

Unavailable

19

GROMMET | K,L,M,A,B; FROM 51845-31030

51845-31031

$4.52

20

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

21

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

22

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

23

BOLT 10X30 CROW | K,L,M,A,B This part replaces 01221-10307.

01204-10307

$2.06
