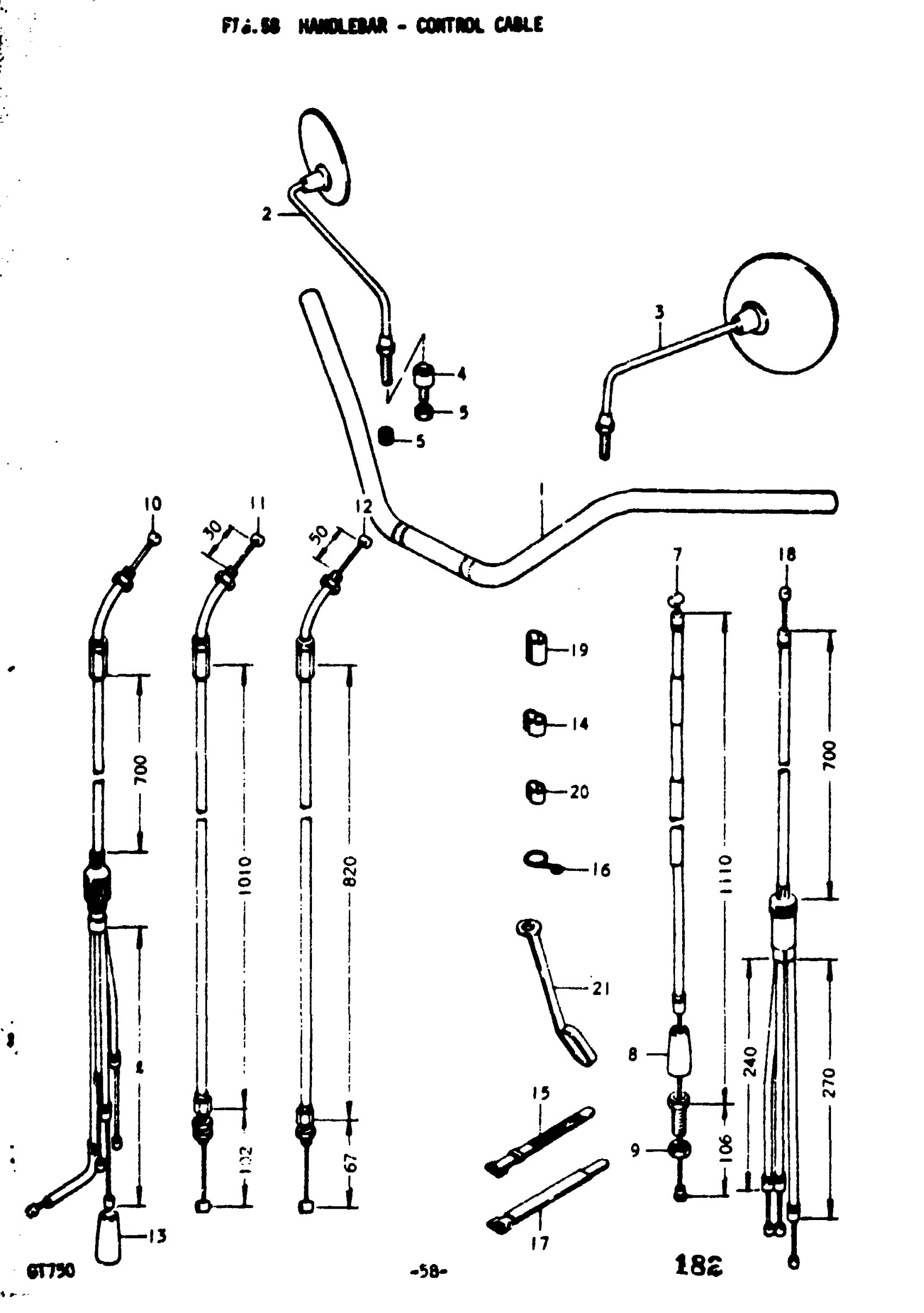

Suzuki GT750 (1977) HANDLEBAR - CONTROL CABLE Diagram

HANDLEBAR | K,L,M,A,B

56111-31000

Unavailable

MIRROR ASSY,RR | K,L; 8 SCREW This part replaces 56500-31010.

56500-23412

$70.29

MIRROR ASSY,RR | M,A,B; 8 SCREW FROM 56700-31000 This part replaces 56500-31011.

56500-31014

$48.02

MIRROR ASSY,RR | K,L; 8SCREW FROM 56700-31000 This part replaces 56600-31010.

56600-23412

$82.68

MIRROR ASSY,RR | M,A,B; 8SCROW FROM 56700-31000 This part replaces 56600-31011.

56600-31014

$48.02

CUSHION, REAR VIEW MIRROR | L; 8SCREW FROM 56700-31000 This part replaces 56700-36000.

56700-32000

Unavailable

CUSHION, REAR VIEW MIRROR | M,A,B; 8SCREW FROM 56700-31000 This part replaces 56700-31001.

56700-45400

$21.90

NUT | L; 8SCREW FROM 56700-31000

09140-08009

Unavailable

NUT | M,A,B; 10SCREW FROM 56700-31000 This part replaces 08312-32108.

08310-00107

$2.19

SPACER | K,L; CHANGEABLE 10SCREW/8SCREW

56741-31700

Unavailable

CABLE ASSY, CLUTCH | K,L,M,A,B; L:1110, L:106; Includes Item(s) 8 - 9 This part replaces 58200-31000.

58200-31001

Unavailable

BOOT | K,L,M,A,B

09287-10001

Unavailable

NUT | K,L,M,A,B This part replaces 08312-11088.

08310-00087

$2.13

CABLE ASSY, THROTTLE | K; L:700, x:470

58300-31001

Unavailable

CABLE ASSY, THROTTLE NO.1 | L,M,A,B; L1:1010, L2:30, L3:102

58300-31200

Unavailable

CABLE ASSY, THROTTLE NO.2 | L,M,A,B; L1:820, L2:50, L3:67

58300-31600

$33.43

SEAL,DUST | K This part replaces 09287-07002.

09287-07006

$2.30

CLIP | K

09408-00005

Unavailable

BAND | K,L,M,A,B

09407-12402

$3.04

CLAMP | L,M,A,B

09403-13401

$2.30

CLAMP | L,M,A,B; TO 09407-18301 L:140 This part replaces 09407-14301.

09407-18302

$2.28

CLAMP | L,M,A,B; L:180 This part replaces 09407-18301.

09407-18302

$2.28

CABLE ASSY, STARTER | K; L1:700, L2:240 L3:270

58400-31000

Unavailable

CLIP | K

09408-00001

Unavailable

CLIP | K

09408-00002

$2.30

CLIP | K

36652-31000

Unavailable
