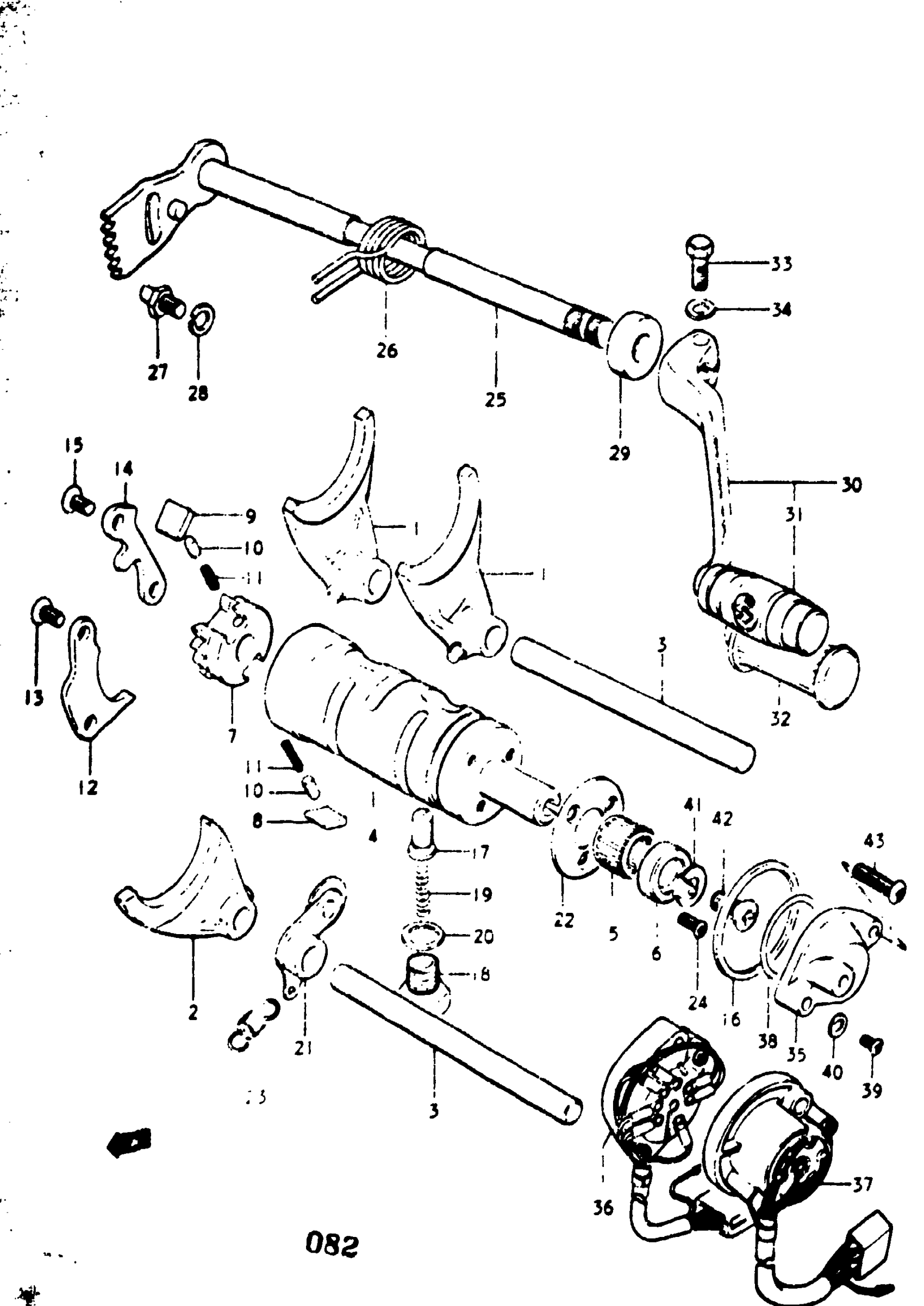

Suzuki GT750 (1977) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING | K,L,M,A,B

25211-31000

Unavailable

2

FORK, GEAR SHIFTING | K,L,M,A,B

25231-31000

Unavailable

3

SHAFT, GEAR SHIFT FORK NO.1 | K,L,M,A,B This part replaces 25411-31000.

25411-18900

$23.07

4

CAM, SHIFTING | K; TO 25310-31910 This part replaces 25310-31000.

25310-31910

Unavailable

4

CAM, SHIFTING | L,M,A,B

25310-31910

Unavailable

5

BEARING | K,L,M; W:16 FOR 11300-31850

09263-16006

Unavailable

5

BEARING | A,B; W:12 FOR 11300-31851

09263-16012

Unavailable

6

OIL SEAL | A,B; W:12 FOR 11300-31851

09284-16002

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN | K,L,M,A,B This part replaces 25322-11000.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1 | K,L,M,A,B This part replaces 25323-11000.

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2 | K,L,M,A,B This part replaces 25324-11000.

25324-34201

$7.22

10

PIN | K,L,M,A,B

09261-05003

$1.54

11

SPRING | K,L,M,A,B

09440-04003

$1.54

12

LIFTER, PAWL | K,L,M,A,B

25331-11001

$6.38

13

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

$1.84

14

GUIDE, CAM | K,L,M,A,B

25341-31000

Unavailable

15

SCREW | K,L,M,A,B This part replaces 02122-06128.

02122-06127

$1.84

16

THRUST WASHER | K,L,M,A,B; 40x45x1

09160-40001

Unavailable

17

STOPPER, GEAR SHIFT CAM NO.2 | K,L,M,A; TO 25351-30010 This part replaces 25351-30000.

25351-30010

$11.95

17

STOPPER, GEAR SHIFT CAM NO.2 | B

25351-30010

$11.95

18

HOLDER, SPRING | K,L,M,A,B

25354-30000

$9.17

19

SPRING | K,L,M,A,B

09440-06014

Unavailable

20

WASHER | K,L,M,A,B

09168-14004

$1.83

21

STOPPER, CAM | K,L,M,A,B

25350-31000

Unavailable

22

PLATE, CAM STOPPER | K,L,M,A This part replaces 25381-20000.

25381-20001

Unavailable

22

PLATE, CAM STOPPER | B

25381-20001

Unavailable

23

SPRING | K,L,M,A,B

09443-09006

Unavailable

24

.SCREW | K,L,M,A,B This part replaces 02121-04127.

02122-0412A

$1.93

25

SHAFT, GEAR SHIFTING | K,L; TO 25510-31001 This part replaces 25510-31000.

25510-31001

Unavailable

25

SHAFT, GEAR SHIFTING | M,A,B

25510-31001

Unavailable

26

SPRING | K,L

09444-26001

$5.88

26

SPRING | M,A,B This part replaces 09444-26012.

09444-26013

$3.10

27

STOPPER, ARM | K,L,M,A,B This part replaces 25671-01000.

25671-01011

$4.48

28

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

29

OIL SEAL (12X22X9) | K,L,M,A,B This part replaces 09285-12002.

09285-12006

$6.32

30

LEVER ASSY, GEAR SHIFTING | K

25600-31000

Unavailable

30

LEVER ASSY, GEAR SHIFTING | L,M,A,B; FROM 25600-33002; Includes Item(s) 31 - 32 This part replaces 25600-33003.

25600-44000

Unavailable

31

.RUBBER,GEAR SHIFT PEDAL | K This part replaces 25652-03201.

25652-16510

$3.74

32

.RUBBER,GEAR SHIFT PEDAL | L,M,A,B This part replaces 25652-16500.

25652-16510

$3.74

33

BOLT, REAR | K,L,M,A,B This part replaces 01122-08208.

01500-08207

$2.53

34

.LOCK WASHER | K,L,M,A This part replaces 08321-21088.

08321-01087

$2.13

35

SWITCH ASSY, GEAR SHIFTING | K

37721-15002

Unavailable

36

SWITCH ASSY, GEAR SHIFTING | L,M; FROM 37710-31210 TO 37710-31212

37710-31211

Unavailable

37

SWITCH ASSY, GEAR SHIFTING | A,B

37710-31212

Unavailable

38

O RING | K,L,M,A,B

09280-28002

$2.08

39

SCREW | K This part replaces 02111-03048.

02112-03047

$2.15

40

WASHER | K This part replaces 08322-21038.

08322-01037

$1.93

41

CONTACT, SWITCH | K; TO 37711-05101 This part replaces 37711-05100.

37711-05101

$4.21

42

SCREW | K This part replaces 02122-06128.

02122-06127

$1.84

42

SCREW | L,M This part replaces 02122-06168.

02122-06167

$1.49

43

SCREW | K,L,M,A,B This part replaces 02111-05207.

02112-05207

$1.97
