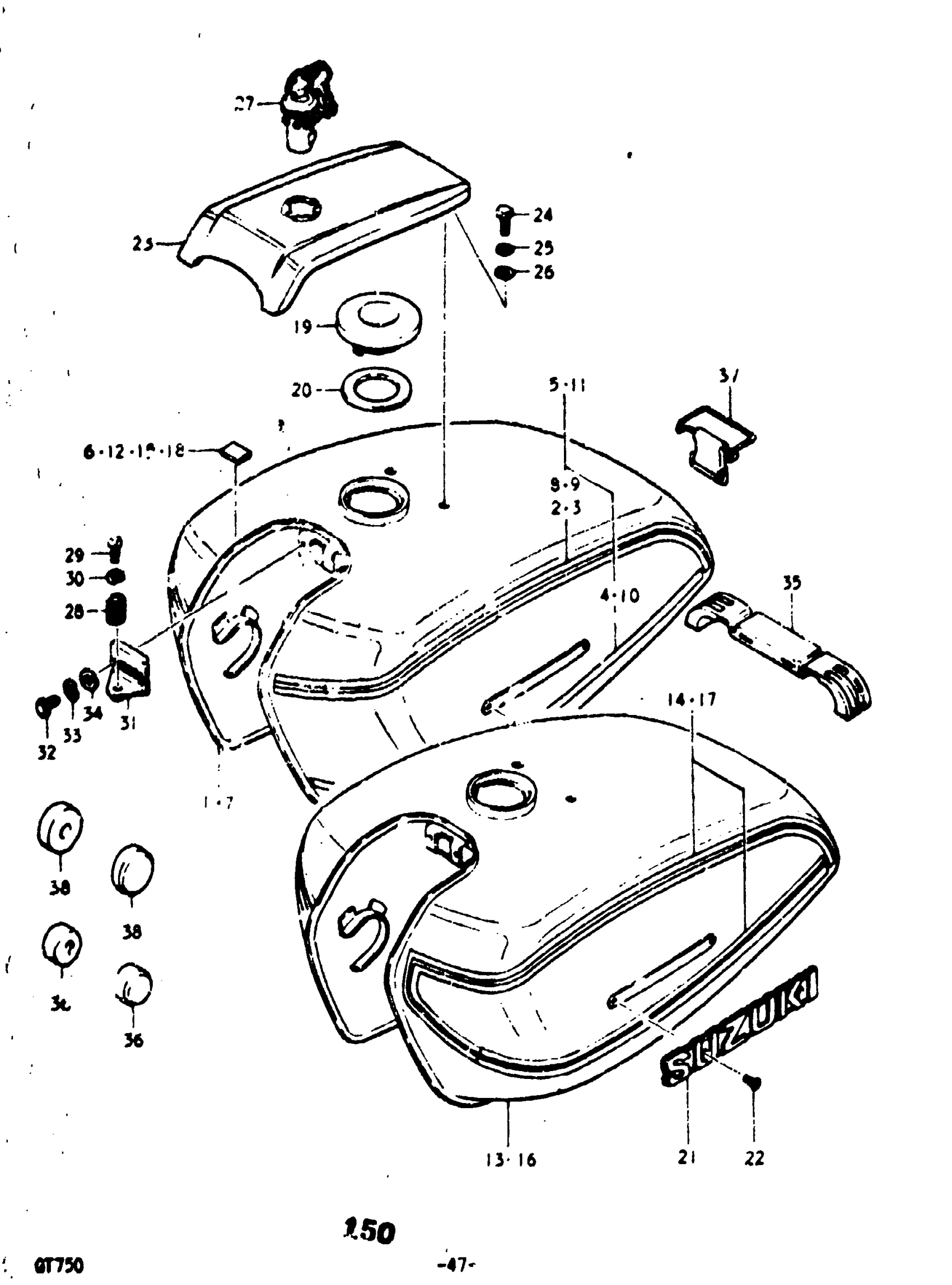

Suzuki GT750 (1977) FUEL TANK (GT750A & B) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 2 - 6 This part replaces 44110-31660-797.

44110-31660-13L

Unavailable

2

TAPE SET, STRIPING | A; TO 68101-31810 This part replaces 68115-31630-998.

68101-31810

Unavailable

3

TAPE SET, STRIPING | A; TO 68101-31810 This part replaces 68125-31630-998.

68101-31810

Unavailable

4

TAPE SET, STRIPING | A; TO 68101-31810 This part replaces 68116-31630-764.

68101-31810

Unavailable

5

TAPE SET, STRIPING | A

68101-31810

Unavailable

6

CUSHION | A This part replaces 44276-37000.

44276-37002

$3.12

7

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 8 - 12 This part replaces 44110-31660-00T.

44110-31660-13L

Unavailable

8

TAPE, STRIPING (1) RH | A; TO 68100-31890

68115-31630-60D

Unavailable

9

TAPE, STRIPING (1) LH | A; TO 68100-31890

68125-31630-60D

Unavailable

10

TAPE SET, STRIPING | A; TO 68100-31890 This part replaces 68116-31630-019.

68100-31890

Unavailable

11

TAPE SET, STRIPING | A

68100-31890

Unavailable

12

CUSHION | A This part replaces 44276-37000.

44276-37002

$3.12

13

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 14 - 15 This part replaces 44110-31680-019.

44110-31660-13L

Unavailable

14

TAPE SET | B

68101-31840-61U

Unavailable

15

CUSHION | B This part replaces 44276-37000.

44276-37002

$3.12

16

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 17 - 18 This part replaces 44110-31680-03G.

44110-31660-13L

Unavailable

17

TAPE SET | B

68101-31840-61R

Unavailable

18

CUSHION | B This part replaces 44276-37000.

44276-37002

$3.12

19

CAP FUEL TANK | A,B This part replaces 44210-23300.

44200-23810

$49.39

20

GASKET | A,B

85413-70000

$4.40

21

EMBLEM | A,B

68111-31610

Unavailable

22

SCREW | A,B This part replaces 09127-03002.

02122-0306B

$2.26

23

COVER, FUEL TANK FRONT | A,B; FROM 44270-31620-019

44270-31620

Unavailable

24

BOLT | A,B This part replaces 01112-06108.

01500-06107

$2.06

25

LOCK WASHER | A,B This part replaces 08321-21068.

08321-01067

$2.13

26

.WASHER | A,B This part replaces 08322-11068.

08322-0106B

$2.26

27

LOCK, FRONT COVER | A,B

44280-37010

$58.13

28

SPRING | A,B

09446-17001

$2.84

29

SCREW | A,B This part replaces 02111-05108.

02112-05107

$1.49

30

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

31

TANK FR COVER H | A,B This part replaces 44290-37000.

44290-3700V

Unavailable

32

BOLT | A,B This part replaces 01112-05108.

01500-0510B

$1.80

33

LOCK WASHER | A,B This part replaces 08321-21058.

08321-0105A

$1.84

34

WASHER | A,B This part replaces 08322-11058.

08322-01057

$2.13

35

CUSHION, FUEL TANK REAR | A,B

44541-31600

Unavailable

36

STOPPER | A,B

09329-10009

Unavailable

37

BAND | A,B

09462-00049

Unavailable

38

CUSHION | A,B This part replaces 09329-10007.

09329-10026

$2.23
