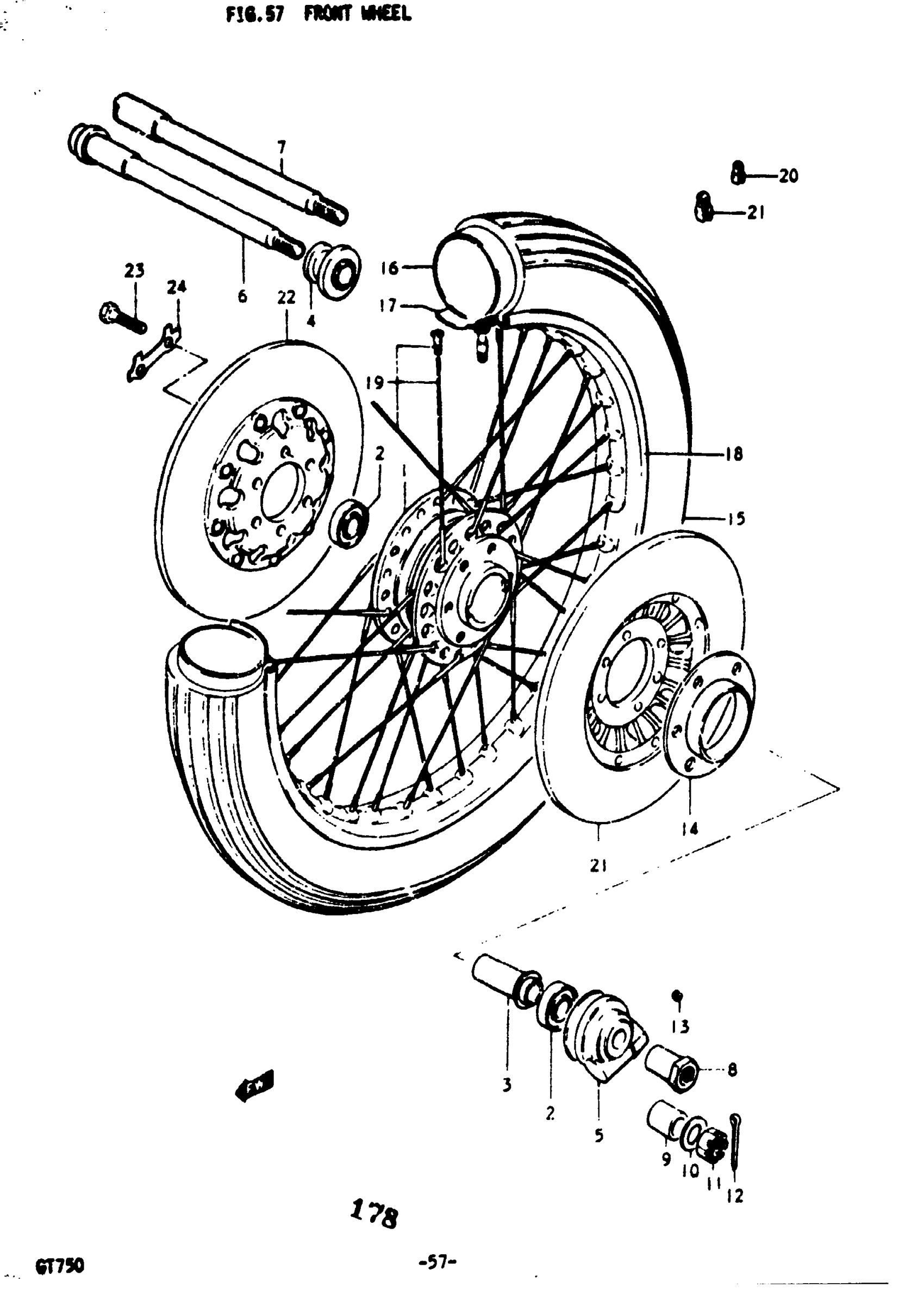

Suzuki GT750 (1977) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | K,L,M,A,B; FROM 54100-18830; Includes Item(s) 2 - 3 This part replaces 54100-18831.

54111-47002

Unavailable

2

BEARING | K,L,M,A,B This part replaces 08123-63020.

08123-6302B

$22.74

3

SPACER | K,L,M,A,B

54730-18400

$20.45

4

SPACER, AXLE, RH | K,L,M; TO 54740-18401 This part replaces 54740-18400.

54740-18402

Unavailable

4

SPACER, AXLE, RH | A,B This part replaces 54740-18401.

54740-18402

Unavailable

5

BOX ASSY,SPEEDO | K,L,M,A This part replaces 54600-34000.

54600-08C01

Unavailable

5

BOX ASSY,SPEEDO | B This part replaces 54600-34001.

54600-08C01

Unavailable

6

AXLE, FRONT | K; L:237

54711-31700

Unavailable

6

AXLE,FRONT | L; L:249 TO 54711-33002 SEE NOTE This part replaces 54711-31701.

54711-3300V

Unavailable

7

AXLE,FRONT | M,A,B; L:235 This part replaces 54711-33002.

54711-3300V

Unavailable

8

NUT, FRONT AXLE | K

54721-31000

Unavailable

9

SPACER | K; SEE NOTEK,L; SEE NOTE

09180-15034

Unavailable

10

WASHER | L,M,A,B This part replaces 08322-21128.

08322-01127

$1.84

11

NUT | L,M,A,B This part replaces 08314-31128.

08314-3112A

$2.41

12

PIN | L,M,A,B This part replaces 04111-30308.

04111-3030A

$1.49

13

OIL SEAL | K,L

09289-06001

$4.58

14

DUST SEAL | K,L,M,A,B

54871-31000

Unavailable

15

TIRE | K,L,M,A,B; 3.25-19 FROM 55100-31012

55100-31600

Unavailable

16

TUBE | K,L,M,A,B; 3.25-19 This part replaces 55200-15010.

55200-44611

$33.73

17

PROTECTOR, WHEEL INNER TUBE FRONT | K,L,M,A,B; 22-19 This part replaces 55261-15010.

55261-15020

$3.15

18

RIM | K,L,M,A,B; 1.85-19

55311-34020

Unavailable

19

SPOKE SET | K,L,M,A,B This part replaces 55320-34805.

55320-45000

Unavailable

20

BALANCER WHEEL (15G) | (0~3)M,A; 20G This part replaces 55411-11000.

55411-26G00

$7.73

21

BALANCER WHEEL (30G) | (0~3)M,A; 30G This part replaces 55412-11000.

55413-41F00

$7.50

22

DISK, FRONT BRAKE | K,L,M,A; FROM 59210-34000 TO 59210-37001

59210-37000

Unavailable

22

DISK, FRONT BRAKE | B

59210-37001

Unavailable

23

BOLT | K,L,M,A,B

09100-08094

$2.71

24

WASHER | K,L,M,A,B

09169-08016

$2.41
