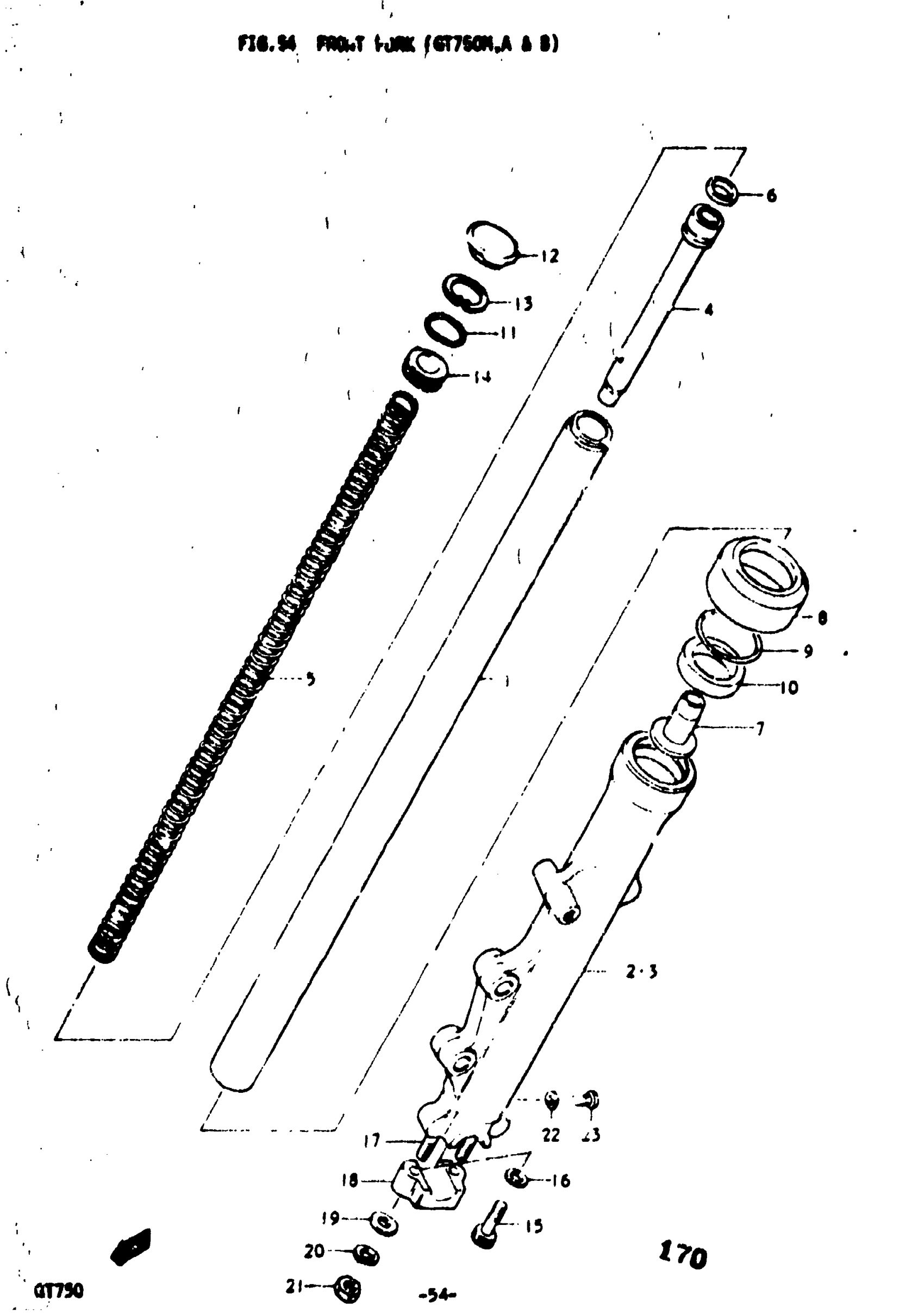

Suzuki GT750 (1977) FRONT FORK (GT750M Diagram

#

Description
Price

DAMPER ASSY, RH | M,A,B

51103-31231

Unavailable

DAMPER ASSY, LH | M,A,B; Includes Item(s) 1 - 23

51104-31231

Unavailable

1

TUBE | M,A,B

51110-31232

Unavailable

2

OUTER TUBE, RH | M,A,B

51130-31231

Unavailable

3

OUTER TUBE, LH | M,A,B

51140-31231

Unavailable

4

INNER TUBE | M,A,B

51146-31230

Unavailable

5

SPRING | M,A,B

51171-31231

Unavailable

6

RING | M,A,B

51196-31230

Unavailable

7

PIECE, OIL LOCK | M,A,B

51195-31230

Unavailable

8

DUST SEAL | M,A,B This part replaces 51571-31231.

51571-20520

Unavailable

9

RING, STOPPER | M,A,B This part replaces 51156-31231.

51156-01A00

$4.34

10

SEAL, OIL | M,A,B; 35x48x13 This part replaces 51153-34730.

51153-19D10

$22.96

11

O RING | M,A,B

51181-31030

$4.37

12

CAP | M,A,B

51189-31230

$9.37

13

CIRCLIP | M,A,B

08331-41309

$2.83

14

SEAT, SPRING | M,A,B

51172-31230

Unavailable

15

BOLT | M,A,B This part replaces 51147-31030.

51147-48130

$4.34

16

O RING | M,A,B This part replaces 51148-31030.

51148-36011

$3.56

17

BOLT,STUD | M,A,B; FROM 51137-31030 This part replaces 01421-08258.

01421-0825A

$2.03

18

HOLDER | M,A,B

51132-31030

Unavailable

19

WASHER | M,A,B This part replaces 08322-21088.

08322-01087

$2.13

20

.LOCK WASHER | M,A,B This part replaces 08321-21088.

08321-01087

$2.13

21

NUT | M,A,B This part replaces 08311-11088.

08310-00087

$2.13

22

SASKET | M,A,B

51183-33030

Unavailable

23

SCREW | M,A,B This part replaces 02111-04067.

02112-0406B

$1.55
