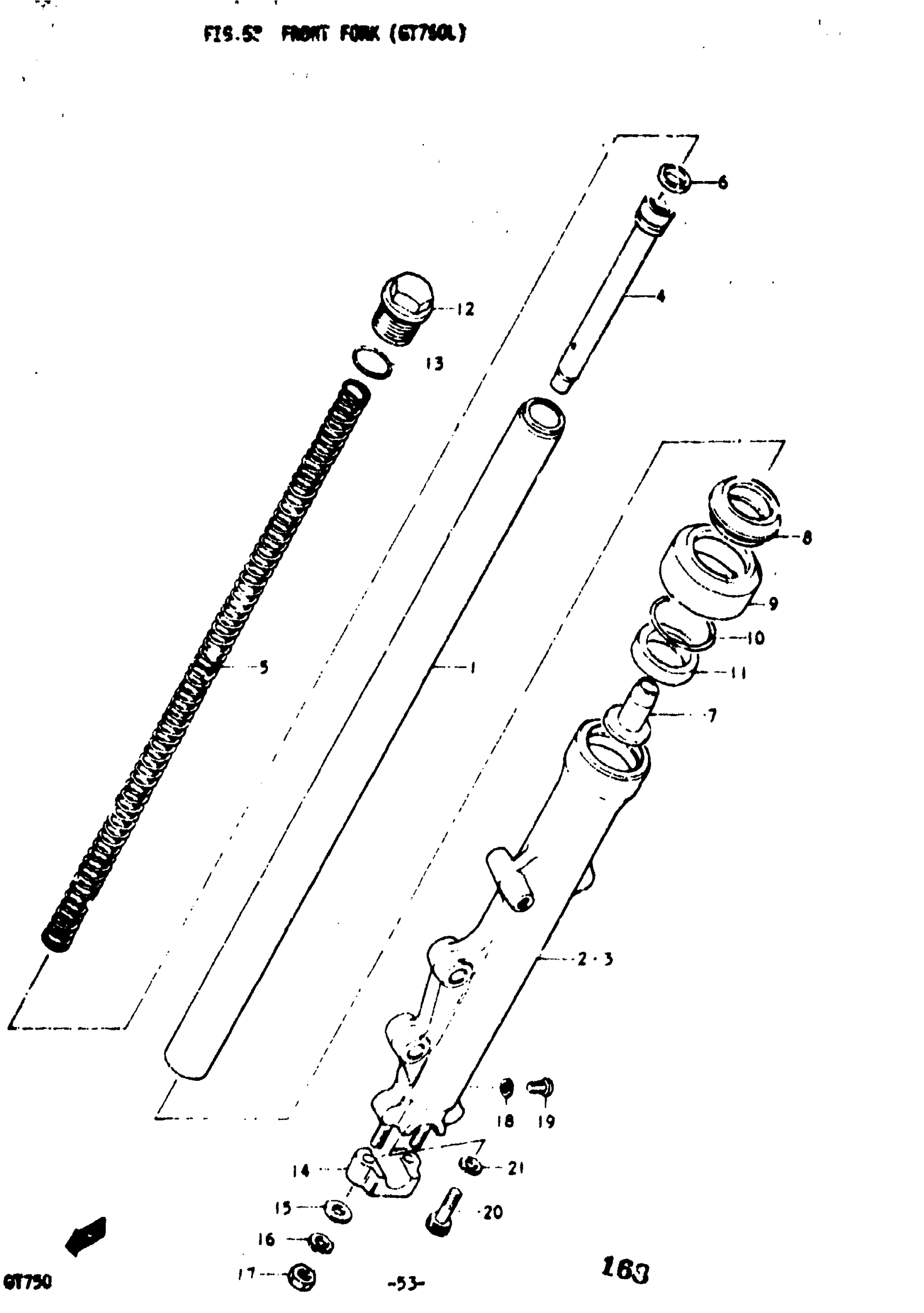

Suzuki GT750 (1977) FRONT FORK (GT750L) Diagram

#

Description
Price

DAMPER ASSY, RH | L

51103-31230

Unavailable

DAMPER ASSY, LH | L

51104-31230

Unavailable

1

TUBE | L

51110-31203

Unavailable

2

OUTER TUBE, RH | L

51131-31230

Unavailable

3

OUTER TUBE, LH | L; Includes Item(s) 4 - 7

51141-31230

Unavailable

4

INNER, TUBE | L

51146-31230

Unavailable

5

SPRING | L This part replaces 51171-31230.

51171-31231

Unavailable

6

RING | L

51196-31230

Unavailable

7

PIECE, OIL LOCK | L

51195-31230

Unavailable

8

DUST SEAL | L; Includes Item(s) 9 - 21 This part replaces 51571-31230.

51571-20520

Unavailable

9

CASE COVER | L

51572-31230

Unavailable

10

RING, STOPPER | L; TO 51156-3,231 This part replaces 51156-31230.

51156-01A00

$4.34

11

SEAL, OIL | L; 36x48x13 This part replaces 51153-34730.

51153-19D10

$22.96

12

BOLT | L

51351-31030

Unavailable

13

O RING | L

51181-31030

$4.37

14

HOLDER | L

51132-31030

Unavailable

15

WASHER | L This part replaces 08322-21088.

08322-01087

$2.13

16

.LOCK WASHER | L This part replaces 08321-21088.

08321-01087

$2.13

17

NUT | L This part replaces 08311-11088.

08310-00087

$2.13

18

GASKET | L

51183-33030

Unavailable

19

SCREW | L This part replaces 02111-04067.

02112-0406B

$1.55

20

BOLT | L This part replaces 51147-31030.

51147-48130

$4.34

21

O RING | L This part replaces 51148-31030.

51148-36011

$3.56
