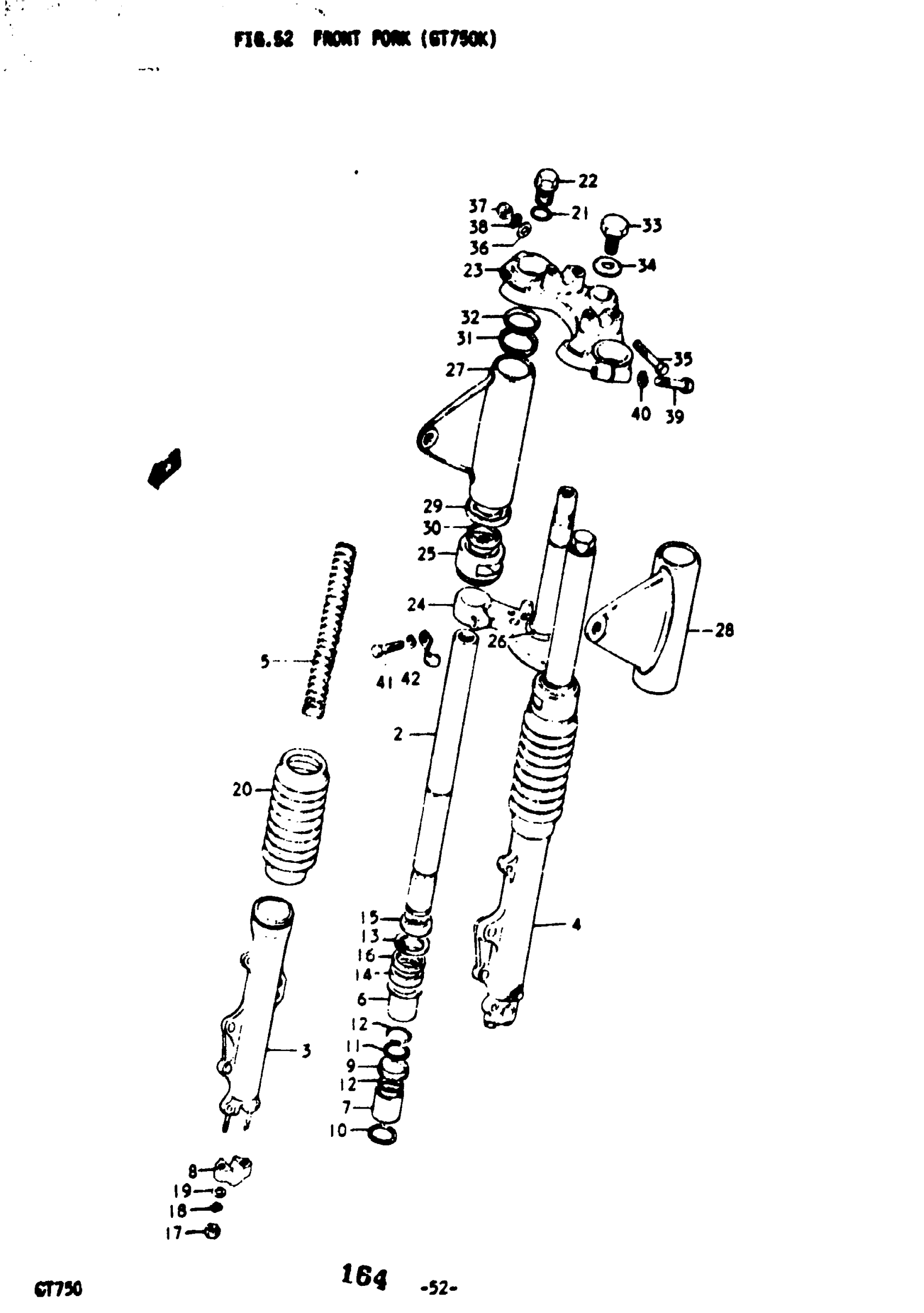

Suzuki GT750 (1977) FRONT FORK (GT750K) Diagram

#

Description
Price

1

DAMPER ASSY, RH | K; TO 51103-31731

51103-31730

Unavailable

1

DAMPER ASSY, RH | K; F.NO. 11610~

51103-31732

Unavailable

1

DAMPER ASSY, LH | K; TO 51104-31731

51104-31730

Unavailable

1

DAMPER ASSY, LH | K; F.NO. 11610~; Includes Item(s) 2 - 22

51104-31732

Unavailable

2

TUBE, INNER | K

51111-31030

Unavailable

3

TUBE, OUTER RH | K; TO 51130-34731

51130-34730

Unavailable

4

TUBE, OUTER LH | K; TO 51140-31731

51140-31730

Unavailable

5

SPRING, FRONT FORK | K

51171-31033

Unavailable

6

GUIDE, INNER TUBE | K

51152-31030

Unavailable

7

PISTON, INNER TUBE | K

51112-31030

Unavailable

8

HOLDER, AXLE | K

51132-31030

Unavailable

9

DAMPER | K

51114-31030

Unavailable

10

SNAP RING, PLSTON | K

51119-31030

Unavailable

11

RING, VALVE STOPPER | K

51118-31030

Unavailable

12

RING, PISTON STOPPER | K

51116-31030

Unavailable

13

CIRCLIP | K

51156-31030

Unavailable

14

SEAL, OIL | K This part replaces 51153-34730.

51153-19D10

$22.96

15

DUST SEAL | K; F.NO. 11610~

51173-31030

Unavailable

16

RING | K This part replaces 51158-34730.

51158-45440

Unavailable

17

NUT | K This part replaces 08311-11088.

08310-00087

$2.13

18

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

19

WASHER | K This part replaces 08322-21088.

08322-01087

$2.13

20

BOOT | K

51571-33030

Unavailable

21

O RING | K; 23x0.8

51181-31030

$4.37

22

CAP, INNER TUBE | K

51351-31030

Unavailable

23

BRACKET, FORK UPPER | K

51311-31700-019

Unavailable

24

BRACKET, FORK LOWER | K

51410-34000

Unavailable

25

GUIDE, BOOTS | K

51570-31000

Unavailable

26

OUTER RACE | K

51621-33001

$16.25

27

BRACKET, HEADLAMP RH | K; TO 51530-31701-707

51530-31700-707

Unavailable

27

BRACKET, HEADLAMP RH | K; TO 51530-31701-708

51530-31700-708

Unavailable

28

BRACKET, HEADLAMP LH | K; TO 51540-31701-707

51540-31700-707

Unavailable

28

BRACKET, HEADLAMP LH | K; TO 51540-31701-708

51540-31700-708

Unavailable

29

SEAT, HEADLAMP BRACKET | K

51551-31000

Unavailable

30

CUSHION, HEADLAMP BRACKET | K

51553-31000

Unavailable

31

CAP, HEADLAMP BRACKET | K

51555-31000

Unavailable

32

CUSHION, HEADLAMP BRACKET | K

51556-31000

Unavailable

33

BOLT, UPPER BRACKET | K

09104-10005

Unavailable

34

WASHER, UPPER BRACKET | K

09160-10036

Unavailable

35

BOLT | K This part replaces 01122-08508.

01500-08507

$3.05

36

WASHER | K This part replaces 08322-11088.

08322-01087

$2.13

37

NUT | K This part replaces 08312-12087.

08310-00087

$2.13

38

.LOCK WASHER | K This part replaces 08321-21088.

08321-01087

$2.13

39

BOLT | K This part replaces 01121-10407.

01500-10407

$3.55

40

LOCK WASHER | K This part replaces 08321-21108.

08321-01107

$1.84

41

BOLT | K This part replaces 01122-10408.

01500-10407

$3.55

42

LOCK WASHER | K This part replaces 08321-21108.

08321-01107

$1.84
