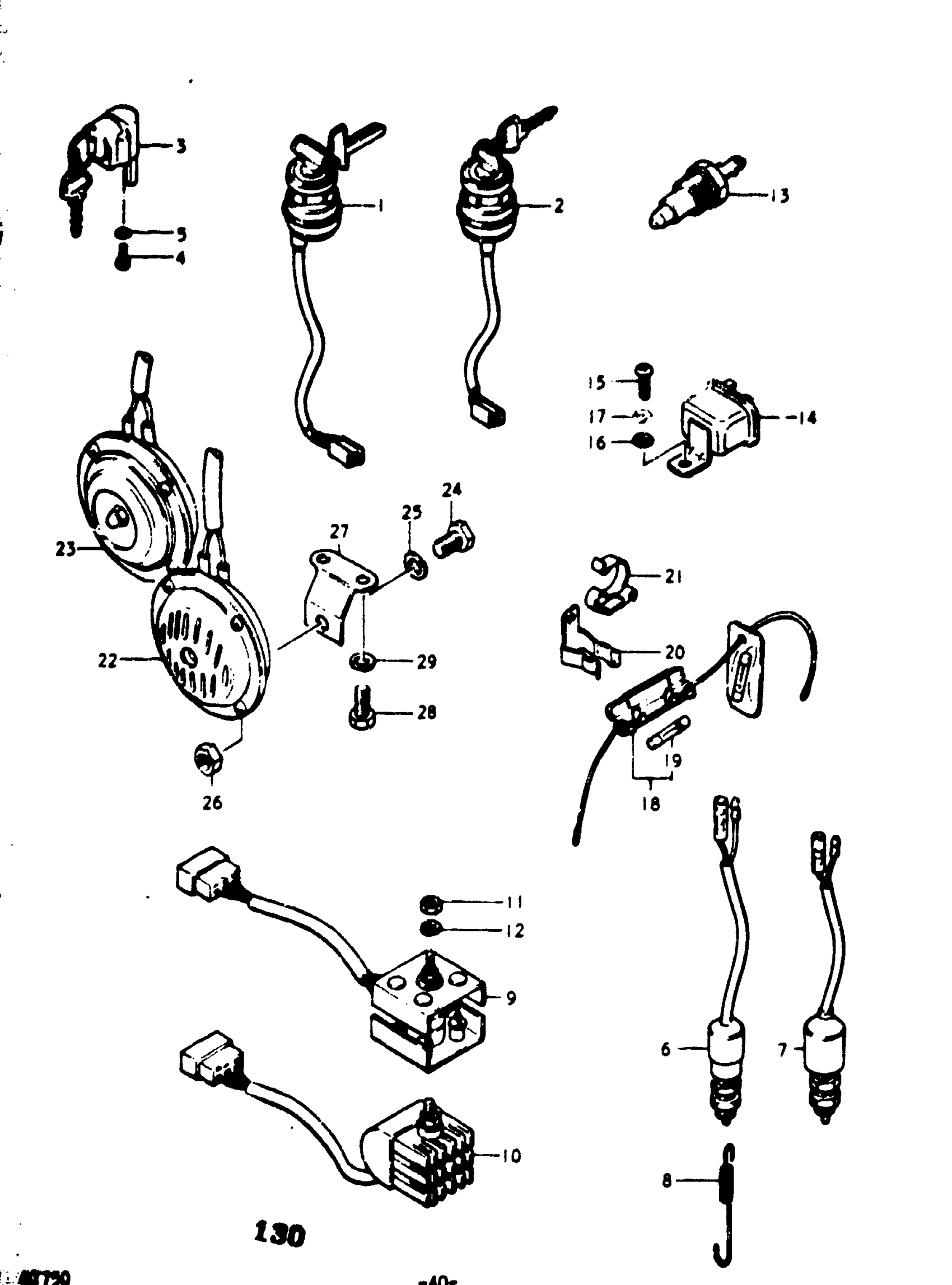

Suzuki GT750 (1977) ELECTRICAL Diagram

#

Description
Price

1

SWITCH ASSY IGN | K,L,M; TO 37110-31013 This part replaces 37110-31012.

37110-31017

Unavailable

2

SWITCH ASSY IGN | A; ~F.NO. 69781 TO 37110-31015 This part replaces 37110-31013.

37110-31017

Unavailable

2

SWITCH ASSY IGN | A,B This part replaces 37110-31015.

37110-31017

Unavailable

3

LOCK ASSY, STEERING | K,L,M,A,B This part replaces 51900-33810.

51900-33811

Unavailable

4

SCREW | K,L,M,A,B This part replaces 02111-05257.

02112-05257

$1.49

5

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

6

SWITCH, REAR BRAKE LAMP | K,M,A,B This part replaces 37740-19051.

37740-48071

$19.18

7

SWITCH ASSY, BRAKE LAMP | L; TO 37740-19051

37740-11010

Unavailable

8

SPRING | K,L,M,A,B

09443-06023

$2.92

9

RECTIFIER ASSY | K; TO 32800-31021 This part replaces 32800-31020.

32800-31021

Unavailable

10

RECTIFIER ASSY | L,M,A,B

32800-31021

Unavailable

11

.NUT | K,L,M,A,B This part replaces 08311-11068.

08310-00067

$2.13

12

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

13

THERMOSWITCH | K; FROM 17690-65010

17680-31010

Unavailable

14

THERMOSWITCH | L,M,A,B; FROM 17690-65010

17680-31010

Unavailable

14

RELAY, THERMO SWITCH | K; OPT FROM 17690-65010K,L,M,A,B; FROM 17690-65010

17690-65011

Unavailable

15

SCREW | K; OPT FROM 17690-65010K,L,M,A,B; OPT This part replaces 02112-06168.

02112-06167

$1.49

16

WASHER | K; OPTL,M,A,B; OPT This part replaces 08322-21068.

08322-01067

$2.13

17

LOCK WASHER | K; OPTL,M,A,B; OPT This part replaces 08321-21068.

08321-01067

$2.13

18

FUSE CASE ASSY | K; TO 36740-31211

36740-31210

Unavailable

18

FUSE CASE ASSY | L,M,A,B; Includes Item(s) 19 This part replaces 36740-31211.

36740-31212

Unavailable

19

FUSE | K,L,M,A,B; 20A

09481-20001

$2.93

20

HOLDER, FUSE CASE | K

36791-25001

Unavailable

21

HOLDER, FUSE CASE | L,M,A,B

36791-33100

Unavailable

22

HORN | K; TO 38500-31011

38500-31010

Unavailable

23

HORN | L,M,A; TO 38500-31012 SEE MOTE

38500-31011

Unavailable

23

HORN | A,B This part replaces 38500-31012.

38500-31646

Unavailable

24

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62

25

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

26

NUT | K,L,M,A,B This part replaces 08312-32088.

08310-00087

$2.13

27

BRACKET, HORN | K,L,M,A,B

38591-31000

Unavailable

28

BOLT | K,L,M,A,B This part replaces 01112-06208.

01500-06207

$2.28

28

BOLT | K,L,M,A,B This part replaces 01112-06128.

01500-06127

$1.97

29

LOCK WASHER | K,L,M This part replaces 08321-21068.

08321-01067

$2.13
