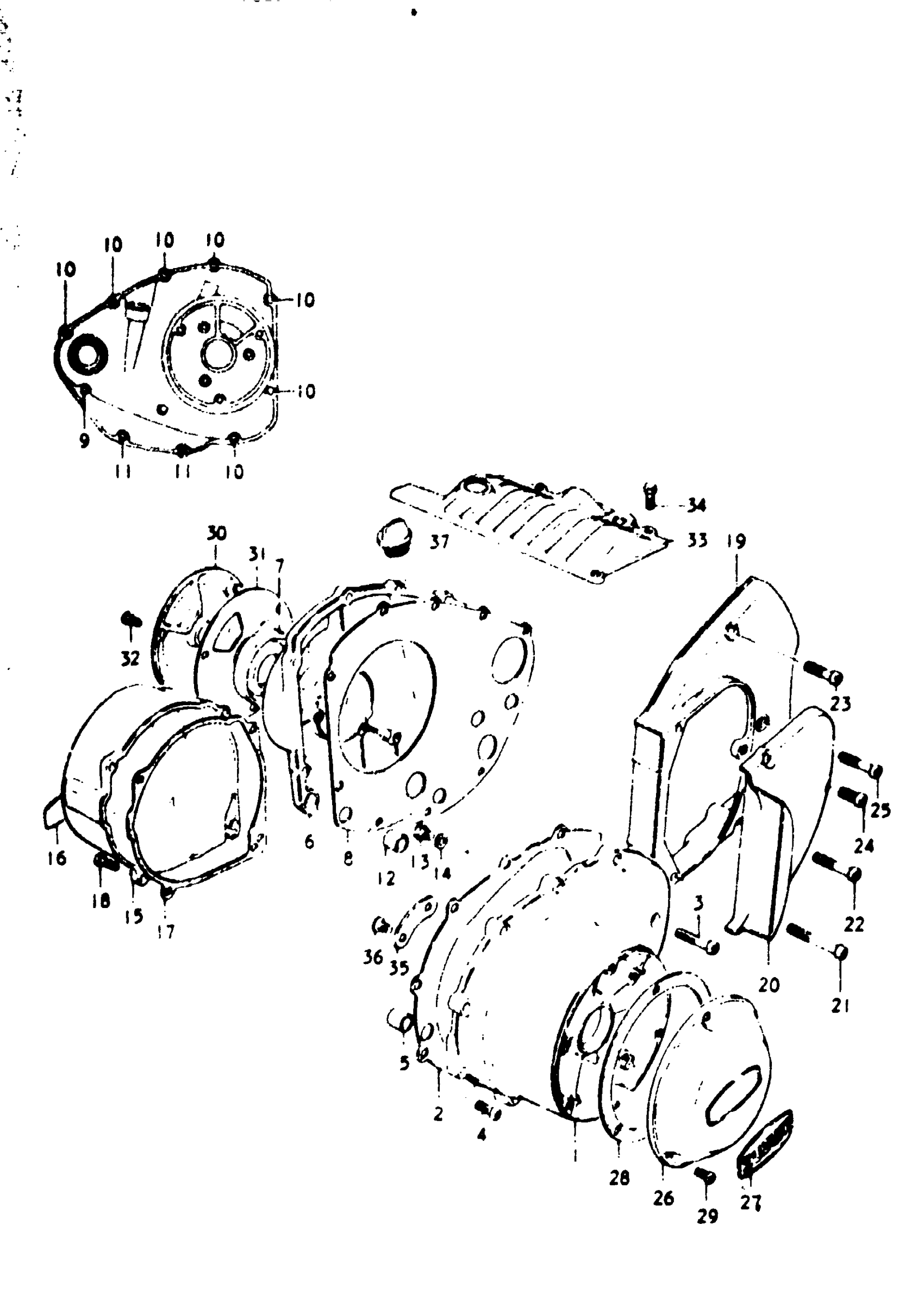

Suzuki GT750 (1977) COVER Diagram

#

Description
Price

1

COVER, STARTER GEAR | K,L,M,A,B

11331-31001

Unavailable

2

GASKET,STRT GR | K,L,M,A,B This part replaces 11485-31000.

11485-310V0

Unavailable

3

SCREW (6X40) | K,L,M,A,B This part replaces 02112-06408.

02112-06407

$1.78

4

SCREW | K,L,M,A This part replaces 02112-06258.

02112-06257

$1.78

5

PIN | K,L,M,A,B This part replaces 09206-13001.

04211-13189

$2.19

6

COVER, CLUTCH | K,L; TO 11341-31001 This part replaces 11341-31000.

11341-31001

Unavailable

6

COVER, CLUTCH | M,A,B

11341-31001

Unavailable

7

OIL SEAL | K,L,M,A,B; F.NO. 18527~

09285-25002

$8.00

8

GASKET,CLUTCH C | K,L,M,A,B This part replaces 11482-31000.

11482-31001

Unavailable

9

SCREW (6X45) | K,L,M,A,B This part replaces 02112-06458.

02112-06457

$1.78

10

SCREW | K,L,M,A,B This part replaces 02112-06258.

02112-06257

$1.78

11

SCREW | K,L,M,A,B This part replaces 02112-06208.

02112-06207

$1.78

12

PIN | K,L,M,A,B This part replaces 09206-13001.

04211-13189

$2.19

13

SCREW (6X10) | K,L,M,A,B This part replaces 09128-06004.

09128-06044

$1.49

14

GASKET | K,L,M,A,B

09168-06001

$1.49

15

COVER GENERATOR | K,L,M,A,B; FROM 11300-31840; Includes Item(s) 16 This part replaces 11300-31860.

11351-31001

Unavailable

16

EMBLEM | K,L,M,A,B

68233-31000

$9.61

17

GASKET | K,L,M,A,B

11483-31000

Unavailable

18

SCREW | K,L,M,A,B This part replaces 02111-05207.

02112-05207

$1.97

19

COVER, ENGINE SPROCKET INNER | K,L,M,A,B

11361-31000

Unavailable

20

COVER, ENGINE SPROCKET OUTER | K,L,M,A,B

11371-31000

Unavailable

21

SCREW | K,L,M,A,B

02112-06557

$2.53

22

SCREW (6X45) | K,L,M,A,B This part replaces 02112-06458.

02112-06457

$1.78

23

SCREW | K,L,M,A,B

02112-06307

$1.97

24

SCREW | K,L,M,A,B This part replaces 02112-06208.

02112-06207

$1.78

25

SCREW | K,L,M,A,B This part replaces 02112-06358.

02112-06357

$1.78

26

CAP, CONTRACT BRAKER | K,L,M,A,B; Includes Item(s) 27

11300-31830

Unavailable

27

EMBLEM | K,L,M,A,B

68233-31000

$9.61

28

GASKET | K,L,M,A,B

11491-31001

Unavailable

29

SCREW | K,L,M,A,B This part replaces 02111-05087.

02112-05087

$1.49

30

CAP, CLUTCH ADJUSTING | K,L,M,A,B

11387-31000

Unavailable

31

GASKET,CL RLSE | K,L,M,A,B This part replaces 11495-31000.

11495-31001

Unavailable

32

SCREW | K,L,M,A,B This part replaces 02112-05168.

02112-05167

$1.97

33

COVER, STARTER MOTOR | K,L,M,A,B; SEE NOTE 1

11440-31001

Unavailable

34

BOLT, RUBBER STOP | K,L,M,A,B This part replaces 01111-05128.

01500-05127

$2.10

35

PLATE, OIL RESERVOIR | K,L,M,A,B; FROM 12561-31000

12521-31000

Unavailable

36

SCREW | K,L,M,A,B This part replaces 02122-06108.

02122-0610A

$1.68

37

PLUG SET | K,L This part replaces 09259-20003.

09200-20811

$4.02

37

PLUG | M,AB This part replaces 09259-19001.

09259-19005

$2.98
