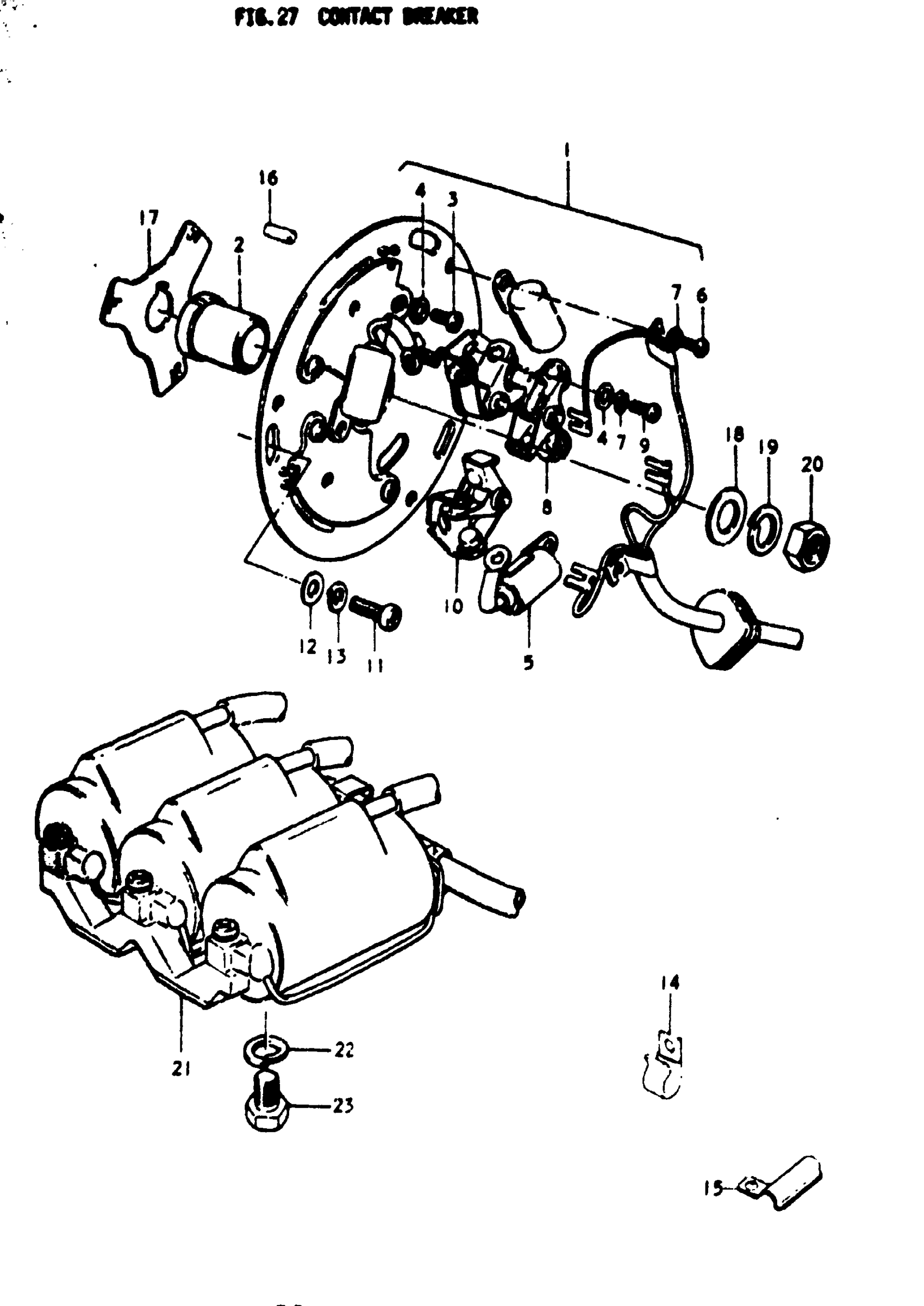

Suzuki GT750 (1977) CONTACT BREAKER Diagram

#

Description
Price

1

BREAKER ASSY, CONTACT | K

33100-31011

Unavailable

1

BREAKER ASSY, CONTACT | L,M,A,B; Includes Item(s) 2 - 10 This part replaces 33100-31210.

33100-31011

Unavailable

2

CAM | K,L,M,A,B

33310-31010

Unavailable

3

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

4

WASHER | K,L,M,A,B This part replaces 08322-21048.

08322-01047

$1.86

5

CONDENSER | K,L,M,A,B This part replaces 32341-31010.

33261-33010

Unavailable

6

SCREW 4X40 | K,L,M,A,B This part replaces 02111-04048.

02112-04047

$1.49

7

LOCK WASHER | K,L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

8

POINT ASSY | K,L,M,A,B

33160-31010

Unavailable

9

SCREW | K,L,M,A,B This part replaces 02111-04067.

02112-0406B

$1.55

10

POINT ASSY | K,L,M,A,B

33170-31010

Unavailable

11

SCREW | K,L,M,A,B

09125-05024

$1.72

12

WASHER | K,L,M,A,B This part replaces 08322-11058.

08322-01057

$2.13

13

LOCK WASHER | K,L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

14

CLAMP | K,L,M,A,B; TO 09403-00069 This part replaces 09403-09301.

09404-06037

Unavailable

14

CLAMP | K,L,M,A,B This part replaces 09403-00069.

09404-06037

Unavailable

15

CLAMP | M,A,B

33280-31000

Unavailable

16

PIN | M,A,B This part replaces 06211-03052.

04221-03059

$1.72

17

PLATE, IGNITION TIMING | K,L,M,A,B

33370-31001

Unavailable

18

WASHER | K,L,M,A,B This part replaces 08322-11108.

08322-01107

$2.15

19

LOCK WASHER | K,L,M,A,B This part replaces 08321-21108.

08321-01107

$1.84

20

NUT | K,L,M,A,B This part replaces 08312-12108.

08310-00107

$2.19

21

COIL ASSY, IGNITION | K,L,M,A,B

33410-31010

Unavailable

22

.LOCK WASHER | K,L,M,A This part replaces 08321-21088.

08321-01087

$2.13

23

BOLT | K,L,M,A,B This part replaces 01122-08128.

01500-08127

$2.62
