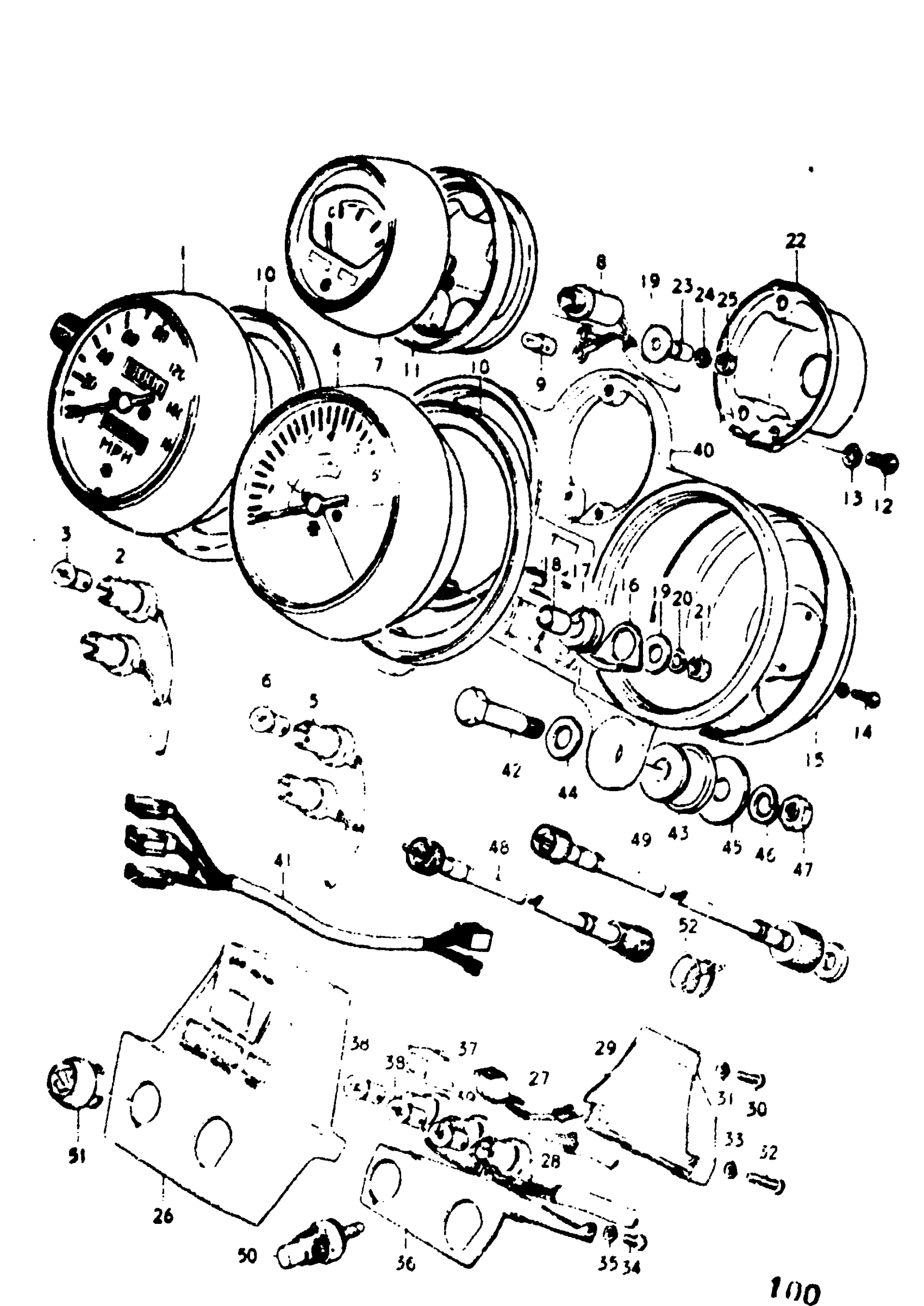

Suzuki GT750 (1977) COMBINATION METER (GT750L Diagram

#

Description
Price

COMBINATION METER ASSY | L,M; TO 34100-31721

34100-31630

Unavailable

COMBINATION METER ASSY | A; TO 34100-31631

34100-31721

Unavailable

COMBINATION METER ASSY | A; TO 34100-31632

34100-31631

Unavailable

COMBINATION METER ASSY | A; TO 34100-31633

34100-31632

Unavailable

COMBINATION METER ASSY | A; Includes Item(s) 1 - 41 This part replaces 34100-31633.

34100-31635

Unavailable

1

SPEEDOMETER ASSY | L,M

34101-31630

Unavailable

1

SPEEDOMETER ASSY | A This part replaces 34101-31632.

34101-31634

Unavailable

2

SOCKET | L,M,A

34270-31210

Unavailable

3

BULB | L,M,A; 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER ASSY | L,M

34201-31620

Unavailable

4

TACHOMETER ASSY | A This part replaces 34201-31622.

34201-31623

Unavailable

5

SOCKET | L,M,A

34270-31210

Unavailable

6

BULB | L,M,A 12V, 3.4W

09471-12001

$1.65

7

THERMOMETER ASSY | L,M TO 34400-31212

34400-31210

Unavailable

7

THERMOMETER ASSY | A; TO 34400-31212

34400-31211

Unavailable

7

THERMOMETER ASSY | A

34400-31212

Unavailable

8

SOCKET | L,M,A

34470-31210

Unavailable

9

BULB | L,M,A; 12V, 2W

09471-12023

Unavailable

10

CUSHION | L,M,A

34181-31000

Unavailable

11

CUSHION | L,M,A

34481-31000

Unavailable

12

SCREW | L,M,A This part replaces 02111-05127.

02112-05127

$1.97

13

LOCK WASHER | L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

14

SCREW | L,M,A This part replaces 02111-03108.

02112-03107

$1.49

15

PLATE, UNDER | L,M,A

34960-31012

Unavailable

16

BRACKET | L,M,A

34951-31012

Unavailable

17

CUSHION | L,M,A

34282-31000

Unavailable

18

SPACER | L,M,A

34972-31012

Unavailable

19

WASHER (5.5X16X1.2) | L,M,A; 5.5x16x1.2 This part replaces 09160-05017.

09160-05043

$2.30

20

LOCK WASHER | L,M,A This part replaces 08321-21058.

08321-0105A

$1.84

21

NUT | L,M,A This part replaces 08311-11058.

08310-00057

$1.84

22

PLATE, UNDER | L,M,A

34970-31000

Unavailable

23

SPACER, THERMOMETER | L,M,A

34491-31000

Unavailable

24

LOCK WASHER | L,M,A This part replaces 08321-21048.

08321-0104A

$1.84

25

NUT | L,M,A This part replaces 08311-11048.

08310-00047

$2.23

26

CASE ASSY | L,M,A; TO 34980-31212 This part replaces 34980-31210.

34980-31212

Unavailable

27

INDICATER ASSY, GEAR POSITION | L,M,A; TO 34890-31211

34890-31210

Unavailable

28

SOCKET ASSY, PILOT BULB | L,M,A

34160-31210

Unavailable

29

PLATE | L,M,A

34981-31210

Unavailable

30

SCREW | L,M,A This part replaces 02111-04127.

02112-0412A

$1.49

31

LOCK WASHER | L,M,A This part replaces 08321-21048.

08321-0104A

$1.84

32

SCREW | L,M,A This part replaces 02111-04208.

02112-0420A

$1.49

33

LOCK WASHER | L,M,A This part replaces 08321-21048.

08321-0104A

$1.84

34

SCREW | L,M,A This part replaces 02111-04067.

02112-0406B

$1.55

35

LOCK WASHER | L,M,A This part replaces 08321-21048.

08321-0104A

$1.84

36

UNDER BRACKET, PILOT BULB CAS | L,M This part replaces 34982-31210.

34982-31920

Unavailable

36

BRACKET | A

34982-31920

Unavailable

37

COVER, INDICATOR | L,M,A

34161-31210

Unavailable

38

BULB | L,M,A; 12V, 3.4W

09471-12001

$1.65

39

BULB | L,M,A; 12V, 1.7W

09471-12004

$2.69

40

BRACKET, METER | L,M,A

34950-31210

Unavailable

41

LEAD WIRE | L,M

34983-31700

Unavailable

42

BOLT | L,M,A; FROM 34952-31000

09111-08028

Unavailable

43

CUSHION | L,M,A This part replaces 34956-31000.

34956-31001

$4.37

44

WASHER | L,M,A This part replaces 08322-11108.

08322-01107

$2.15

45

WASHER, EXHAUST SUPPORT | L,M,A; 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

46

.LOCK WASHER | L,M,A This part replaces 08321-21088.

08321-01087

$2.13

47

NUT | L,M,A This part replaces 08312-11088.

08310-00087

$2.13

48

CABLE,SPEEDOMET | L,M,A; FROM 34910-34031 This part replaces 34910-18130.

34910-18991

$31.50

49

CABLE ASSY, TACHOMETER | L,M,A; L:1130

34940-18131

Unavailable

50

GAUGE ASSY, TEMPERATURE | L,M,A

34850-65011

Unavailable

51

CAP, METER | L,M,A

34995-31600

Unavailable

52

CLAMP, SPEEDOMETER CABLE | L,M,A

51452-31000

Unavailable
