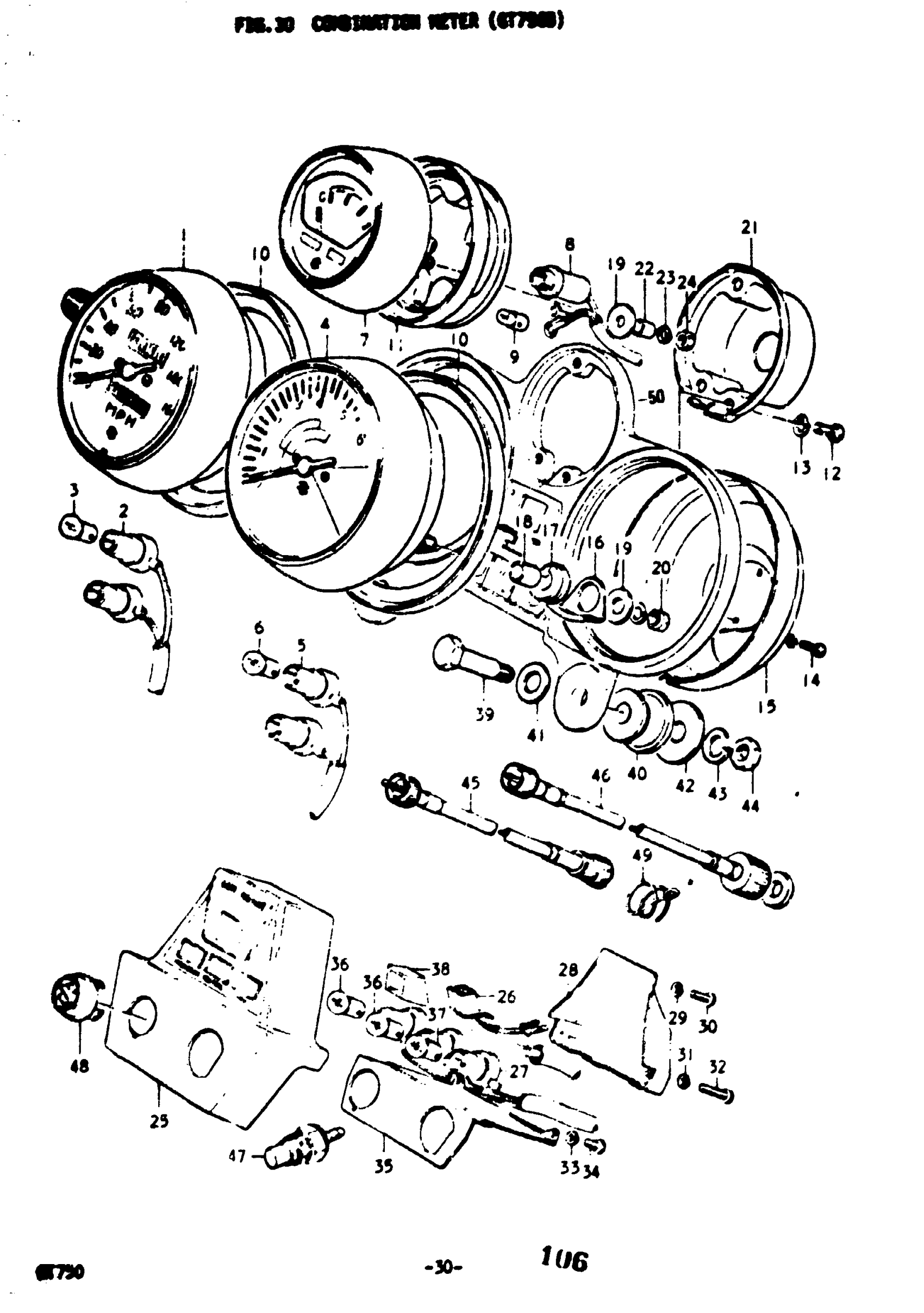

Suzuki GT750 (1977) COMBINATION METER (GT750B) Diagram

#

Description
Price

COMBINATION METER ASSY | B; Includes Item(s) 1 - 38

34100-31635

Unavailable

1

SPEEDOMETER ASSY | B

34101-31634

Unavailable

2

SOCKET | B

34170-31210

Unavailable

3

BULB | B; 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER ASSY | B

34201-31623

Unavailable

5

SOCKET | B

34270-31210

Unavailable

6

BULB | B; 12V, 3.4W

09471-12001

$1.65

7

THERMOMETER ASSY | B

34400-31212

Unavailable

8

SOCKET | B

34470-31210

Unavailable

9

BULB | B; 12V, 2W

09471-12023

Unavailable

10

CUSHION | B

34181-31000

Unavailable

11

CUSHION | B

34481-31000

Unavailable

12

SCREW | B

02111-05128

Unavailable

13

LOCK WASHER | B This part replaces 08321-21058.

08321-0105A

$1.84

14

SCREW | B This part replaces 02111-03108.

02112-03107

$1.49

15

UNDER PLATE, SPEEDOMETER | B

34960-31012

Unavailable

16

BRACKET | B

34951-31012

Unavailable

17

CUSHION | B

34282-31000

Unavailable

18

SPACER | B

34972-31012

Unavailable

19

WASHER (5.5X16X1.2) | B This part replaces 09160-05017.

09160-05043

$2.30

20

NUT | B This part replaces 08311-11058.

08310-00057

$1.84

21

UNDER PLATE, THERMOMETER | B

34970-31000

Unavailable

22

SPACER, THERMOMETER | B

34491-31000

Unavailable

23

LOCK WASHER | B This part replaces 08321-21048.

08321-0104A

$1.84

24

NUT | B This part replaces 08311-11048.

08310-00047

$2.23

25

CASE ASSY | B

34980-31212

Unavailable

26

NO DESCRIPTION AVAILABLE | B This part replaces 34890-31211.

36450-47040

Unavailable

27

SOCKET ASSY, PILOT BULB | B

34160-31210

Unavailable

28

PLATE, PILOT BULB CASE | B

34981-31210

Unavailable

29

LOCK WASHER | B This part replaces 08321-21048.

08321-0104A

$1.84

30

SCREW | B This part replaces 02111-04127.

02112-0412A

$1.49

31

LOCK WASHER | B This part replaces 08321-21048.

08321-0104A

$1.84

32

SCREW | B This part replaces 02111-04208.

02112-0420A

$1.49

33

LOCK WASHER | B This part replaces 08321-21048.

08321-0104A

$1.84

34

SCREW | B This part replaces 02111-04067.

02112-0406B

$1.55

35

UNDER BRACKET, PILOT BULB CAS | BB

34982-31920

Unavailable

36

BULB, NEUTRAL, BEEM | B; 12V, 3.4W

09471-12001

$1.65

37

BULB, TURN SIGNAL | B; 12V, 1.7W

09471-12004

$2.69

38

COVER, INDICATER | B

34161-31210

Unavailable

39

BOLT, METER BRACKET | B

09111-08028

Unavailable

40

CUSHION | B This part replaces 34956-31000.

34956-31001

$4.37

41

WASHER | B This part replaces 08322-11108.

08322-01107

$2.15

42

WASHER, EXHAUST SUPPORT | B This part replaces 09160-08002.

09160-08135

$2.35

43

.LOCK WASHER | B This part replaces 08321-21088.

08321-01087

$2.13

44

NUT | B This part replaces 08312-11088.

08310-00087

$2.13

45

CABLE,SPEEDOMET | B This part replaces 34910-18130.

34910-18991

$31.50

46

CABLE ASSY, TACHOMETER | B

34940-18131

Unavailable

47

CAUGE ASSY, TEMPARATURE | B

34850-65011

Unavailable

48

CAP, METER | B

34995-31600

Unavailable

49

CLAMP, SPEEDOMETER CABLE | B

51452-31000

Unavailable

50

METER BRACKET | B

34950-31210

Unavailable
