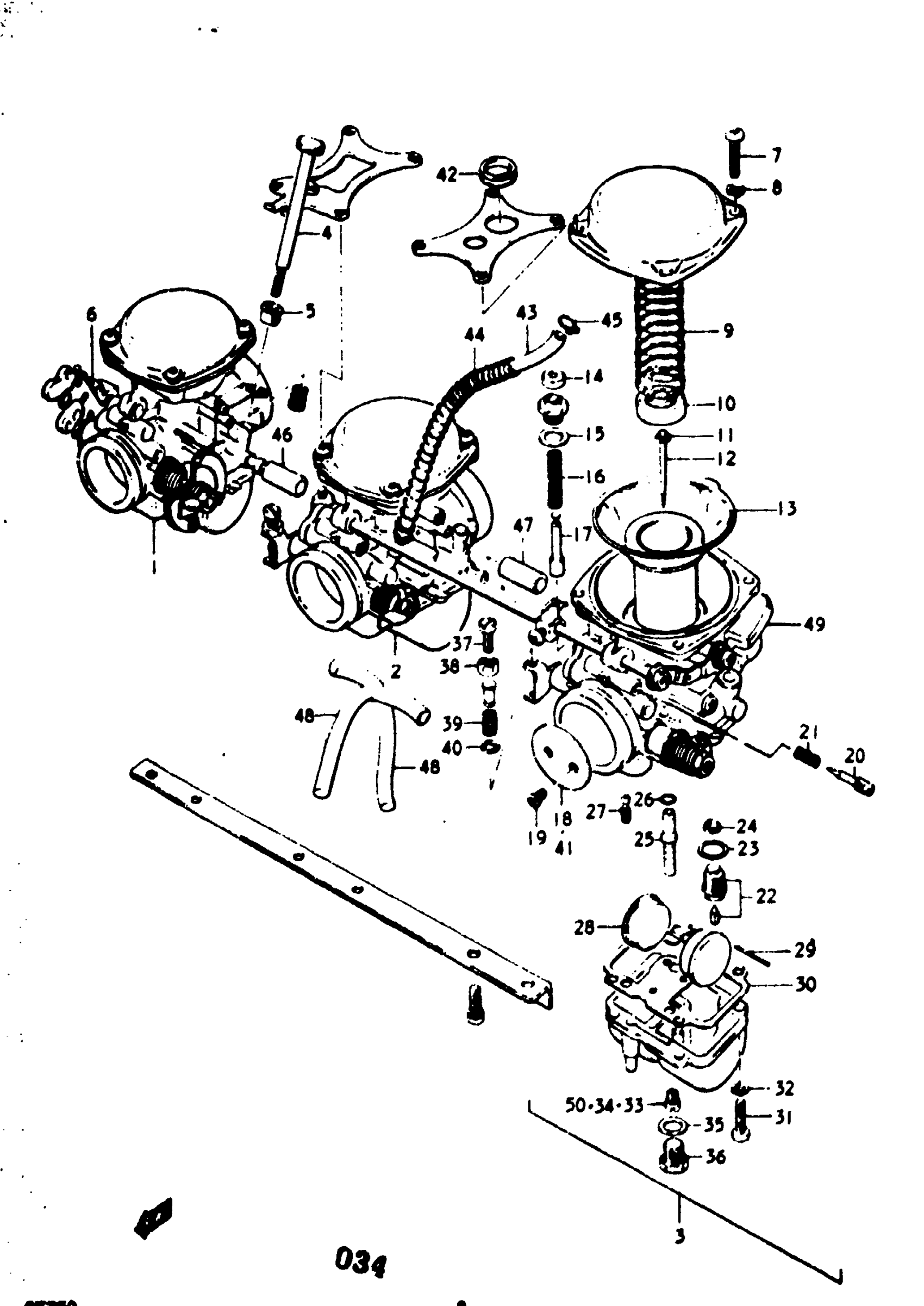

Suzuki GT750 (1977) CARBURETOR (GT750L Diagram

#

Description
Price

CARBURETOR ASSY | L; TO 13200-31211 INCLUDED REF.NO.1~3

13200-31210

Unavailable

NO DESCRIPTION AVAILABLE | M,A; TO 3200-31622 This part replaces 13200-31621.

13200-31623

Unavailable

NO DESCRIPTION AVAILABLE | B; Includes Item(s) 1 - 49 This part replaces 13200-31622.

13200-31623

Unavailable

1

CARBURETOR, RH | L; TO 10201-31211

13201-31210

Unavailable

1

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 13201-31621.

13201-31623

Unavailable

2

CARBURETOR, MIDDLE | L; TO 13202-31211

13202-31210

Unavailable

2

NO DESCRIPTION AVAILABLE | M,A,B This part replaces 13202-31621.

13202-31623

Unavailable

3

CARBURETOR, LH | L; TO 13203-31211

13203-31210

Unavailable

3

NO DESCRIPTION AVAILABLE | L,M,A,B This part replaces 13203-31621.

13203-31623

Unavailable

4

ADJUSTER, THROTTLE | L,M,A,B

13267-31210

Unavailable

5

BUSH | L,M,A,B

13276-31210

Unavailable

6

GASKET | L,M,A,B

13436-31210

Unavailable

7

SCREW | L,M,A,B This part replaces 02111-05207.

02112-05207

$1.97

8

LOCK WASHER | L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

9

SPRING | L,M,A,B

13503-31210

Unavailable

10

PLATE, NEEDLE | L,M,A,B

13398-31210

Unavailable

11

E RING | L,M,A,B

13394-31210

$4.64

12

NEEDLE, JET | L,M,A,B; 4DN18-3

13383-31210

Unavailable

13

DIAPHRAGM ASSY | L,M,A,B

13500-31210

Unavailable

14

.CAP, STARTER VALVE | L,M,A,B

13682-31210

$4.37

15

GASKET, STARTER VALVE | L,M,A,B

13419-31210

Unavailable

16

SPRING, STARTER VALVE | L

13417-08210

$3.56

16

SPRING, STARTER VALVE | M,A,B; TO 13417-18630

13417-20010

Unavailable

16

SPRING, STARTER VALVE | M,A,B

13417-18630

$6.00

17

PLUNGER, STERTER VALVE | L,M,A,B

13411-31210

Unavailable

18

VALVE, THROTTLE | L,M; #120

13551-31210

Unavailable

19

SCREW | L,M,A,B This part replaces 02111-03087.

02112-0308A

$1.80

20

SCREW, PILOT AIR | L,M,A,B

13269-31210

Unavailable

21

SPRING | L,M,A,B

13268-01010

$5.28

22

VALVE, NEEDLE | L,M,A,B

13372-31210

Unavailable

23

WASHER, NEEDLE VALVE | L,M,A,B

13392-16600

$1.94

24

FILTER | L,M,A,B This part replaces 13376-65010.

13376-19F00

$10.28

25

JET, NEEDLE | L,M,A,B; Z-0

09494-00141

Unavailable

26

O RING, NOZZLE | L,M,A,B This part replaces 13295-31210.

09280-03003

$1.91

27

JET, PILOT | L; #47.5 This part replaces 09492-47005.

09492-47017

Unavailable

27

JET, PILOT (45) | M,A,B; #45 This part replaces 09492-45012.

09492-45015

Unavailable

28

FLOAT | L,M,A,B

13252-31210

Unavailable

29

PIN, FLOAT | L,M,A

13254-11010

Unavailable

29

.PIN, FLOAT | B This part replaces 13254-35013.

13254-01010

$3.62

30

GASKET,FLOAT CA | L,M,A,B This part replaces 13251-31210.

13251-31211

Unavailable

31

SCREW | L,M,A,B This part replaces 02111-04127.

02112-0412A

$1.49

32

LOCK WASHER | L,M,A,B This part replaces 08321-21048.

08321-0104A

$1.84

33

JET,MAIN(107.5) | L,M,A,B; #107.5 This part replaces 09491-21011.

09491-21019

$12.72

34

JET, MAIN (110) | L,M,A,B; #110 This part replaces 09491-22010.

09491-22013

$11.38

35

GASKET (8.2X14X1) | L,M,A,B This part replaces 13249-31210.

09168-08016

$1.65

36

SCREW, PLUG | L,M,A,B

13247-31210

Unavailable

37

SCREW, THROTTLE STOP | L,M,A,B

13267-31600

Unavailable

38

NUT | L,M,A; ~F.NO.66007

13607-31610

Unavailable

39

SPRING, THROTTLE STOP SCREW | L,M,AB

13268-31210

$5.33

40

E RING | L,M,AB

13617-31210

Unavailable

41

VALVE, THROTTLE | A,B; #110

13551-31600

Unavailable

42

CAP | L,M,A,B

13625-33110

Unavailable

43

HOSE(4.5X8.5X60 | L,M,A,B This part replaces 13683-31610.

09355-45001-600

$9.48

44

SPRING | L

13689-31210

Unavailable

45

CLIP | L,M,A This part replaces 13671-33600.

13671-05A40

$3.71

46

HOSE | L,M,A,B This part replaces 13683-31600.

13683-10201

Unavailable

47

HOSE | L,M,A,B This part replaces 13683-31210.

13683-10201

Unavailable

48

HOSE | L,M,A,B

13686-31210

Unavailable

49

LEVER, STARTER | L,M,A,B

13413-31210

Unavailable

50

JET, MAIN (100) | L,M,A,B; #100; OPT This part replaces 09491-20010.

09491-20019

$10.54

50

M/J 105 (N10222 | L,M,A,B; #105; OPT This part replaces 09491-21012.

09491-21023

$11.83

30

JET, MAIN | L,M,A,B; #112.5; OPT

09491-22012

Unavailable
