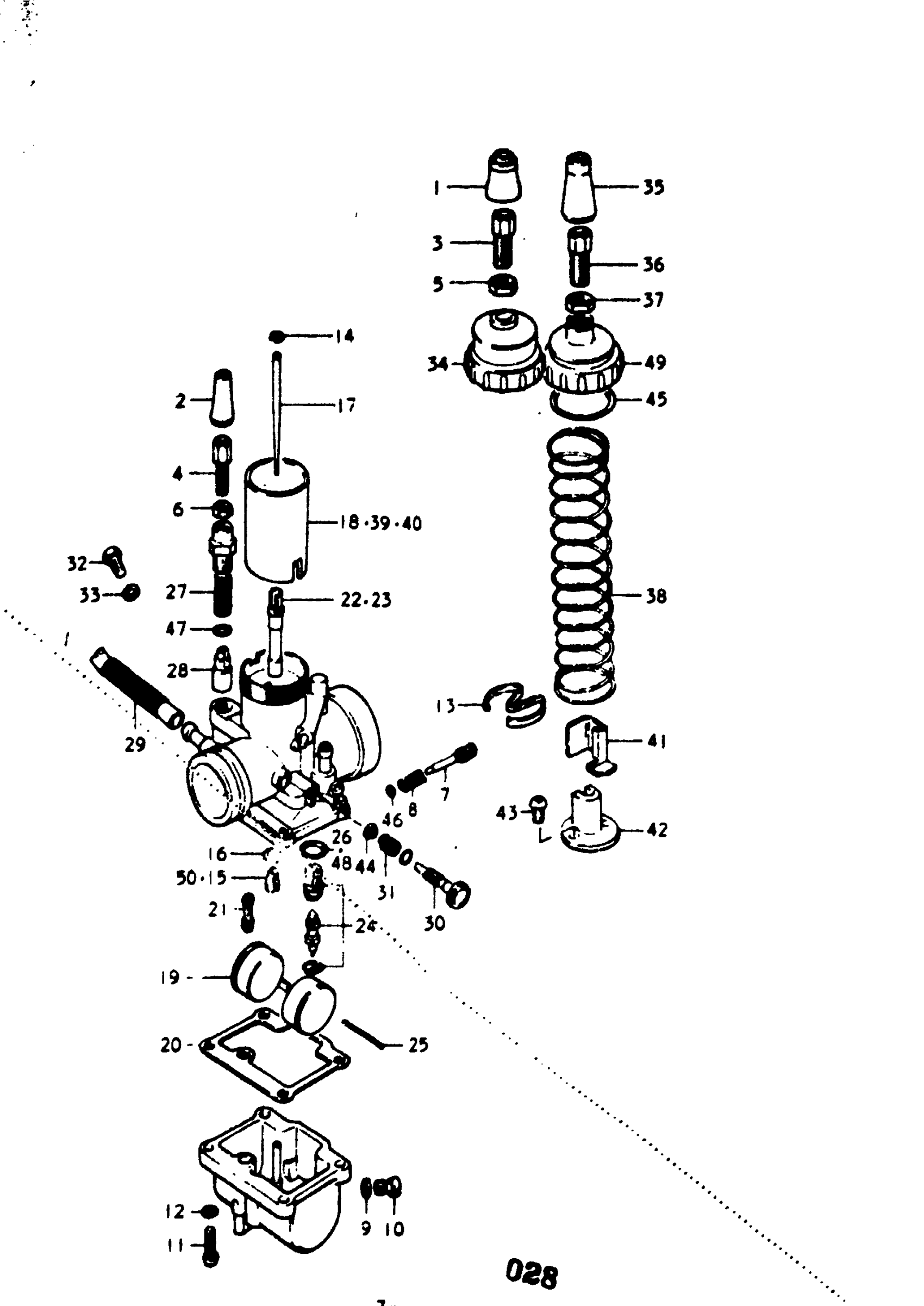

Suzuki GT750 (1977) CARBURETOR (GT750K) Diagram

#

Description
Price

CARBURETOR ASSY, RH | K; TO 13201-31015 PRESS-STAMPED 31014 This part replaces 13201-31014.

13201-31015

Unavailable

CARBURETOR ASSY, MIDDLE | K; TO 13202-31015 This part replaces 13202-31014.

13202-31015

Unavailable

CARBURETOR ASSY, LH | K; TO 13203-31015 This part replaces 13203-31014.

13203-31015

Unavailable

CARBURETOR ASSY, RH | K

13201-31015

Unavailable

CARBURETOR ASSY, MIDDLE | K;PRESS-STAMPED 31015 F.NO. 39101

13202-31015

Unavailable

CARBURETOR ASSY, LH | K; Includes Item(s) 1 - 49

13203-31015

Unavailable

1

BOOT | K

13681-31010

Unavailable

2

BOOT | K; FROM 13681-16600

13681-16601

$8.26

3

ADJUSTER, CABLE | K

13577-31010

Unavailable

4

ADJUSTER | K This part replaces 13577-03010.

13577-48110

$8.30

5

NUT, CABLE ADJUSTER | K

13661-31010

Unavailable

6

NUT, CABLE ADJUSTER | K

13661-16600

$4.64

7

SCREW, PILOT AIR | K

13269-15010

Unavailable

8

SPRING, PILOT AIR SCREW | K

13268-01010

$5.28

9

GASKET, DRAIN PLUG | K

13249-05010

$1.98

10

PLUG, DRAIN | K

13247-05010

$5.11

11

SCREW | K This part replaces 02111-04168.

02112-0416A

$1.49

12

LOCK WASHER | K This part replaces 08321-21048.

08321-0104A

$1.84

13

SEAT, THROTTLE VALVE | K; F.NO. 39100

13581-15010

Unavailable

14

CLIP, NEEDLE | K

13394-10010

$5.45

15

.JET (#102.5) | K; #102.5 This part replaces 09491-20004.

09491-20012

$11.38

15

JET, MAIN (MIDDLE) | K; #100

09491-20034

Unavailable

16

WASHER | K

13382-03110

$2.80

17

NEEDLE, JET | K; 5F 16-3

13383-31010

Unavailable

18

VALVE, THROTTLE (LH) | K; CA:2.5

13561-31012

Unavailable

18

VALVE, THROTTLE (RH & MIDDLE) | K; CA:2.5

13551-31012

Unavailable

19

FLOAT | K

13252-18010

Unavailable

20

GASKET, FLOAT CHAMBER | K; FROM 13251-18010

13251-33110

$9.03

21

JET, PILOT (30) | K; #30 This part replaces 09492-30003.

09492-30006

$9.55

22

JET, NEEDLE (RH & LH) | K; P-4

09494-00051

Unavailable

23

JET, NEEDLE (MIDDLE) | K; P-3

09494-00095

Unavailable

24

VALVE,NEEDLE | K This part replaces 13370-18010.

13370-41500

Unavailable

25

.PIN, FLOAT | K

13254-01010

$3.62

26

GASKET, VALVE SEAT | K This part replaces 13392-15010.

13392-16600

$1.94

27

SPRING, STARTER VALVE | K

13417-18630

$6.00

28

VALVE, STARTER | K

13411-01010

$18.43

29

HOSE, BOOST | K

44390-15050

Unavailable

30

SCREW, THROTTLE STOP | K

13267-33010

Unavailable

31

SPRING, STOP SCREW | K This part replaces 13268-31010.

13268-03110

$5.45

32

BOLT, VALVE INSPECTION | K; FROM 13664-31010

13664-18654

$8.98

33

GASKET, INSPECTION BOLT | K

13663-31010

$2.80

34

CAP, MIXING CHAMBER | K

13261-31011

Unavailable

35

BOOT | K; F.NO.39101~

13681-16601

$8.26

36

ADJUSTER | K; F.NO.39101~ This part replaces 13577-03010.

13577-48110

$8.30

37

NUT, CABLE ADJUSTER | K; F.NO.39101~

13661-16600

$4.64

38

SPRING, THROTTLE VALVE | K

13573-31011

Unavailable

38

SPRING, THROTTLE VALVE | K; F.NO.39101~

13573-31012

Unavailable

39

VALVE, THROTTLE LH | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13561-31013

Unavailable

40

VALVE, THROTTLE RH | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13551-31013

Unavailable

41

COVER, CONNECTOR | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13394-31010

Unavailable

42

HOLDER, JET NEEDLE | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~ This part replaces 13398-34010.

13581-40200

Unavailable

43

SCREW | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~ This part replaces 13399-34010.

02112-3308A

$2.23

44

COVER, THROTTLE STOP SCREW | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13291-34010

Unavailable

45

O RING | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13295-31010

Unavailable

46

O RING | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13295-33010

$4.48

47

O RING | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13295-34010

Unavailable

48

GASKET, VALVE SEAT | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13392-16600

$1.94

49

CAP, MIXING CHAMBER | K; USE FOR PRESS-STAMPED 31015 F.NO.39101~

13261-15111

Unavailable

50

JET, MAIN (97.5) | K; #97.5 OPT This part replaces 09491-97001.

09491-97003

$11.38

50

JET, MAIN (105) | K; #105 OPT This part replaces 09491-21003.

09491-21016

$12.13

50

JET, MAIN (#107.5) | K;' #107.5 OPT This part replaces 09491-21006.

09491-21014

$11.83

50

JET, MAIN (110) | K; #110 OPT This part replaces 09491-22004.

09491-22016

$10.06

50

JET, MAIN (112.5) | K; #112.5 OPT This part replaces 09491-22005.

09491-22015

$9.69
