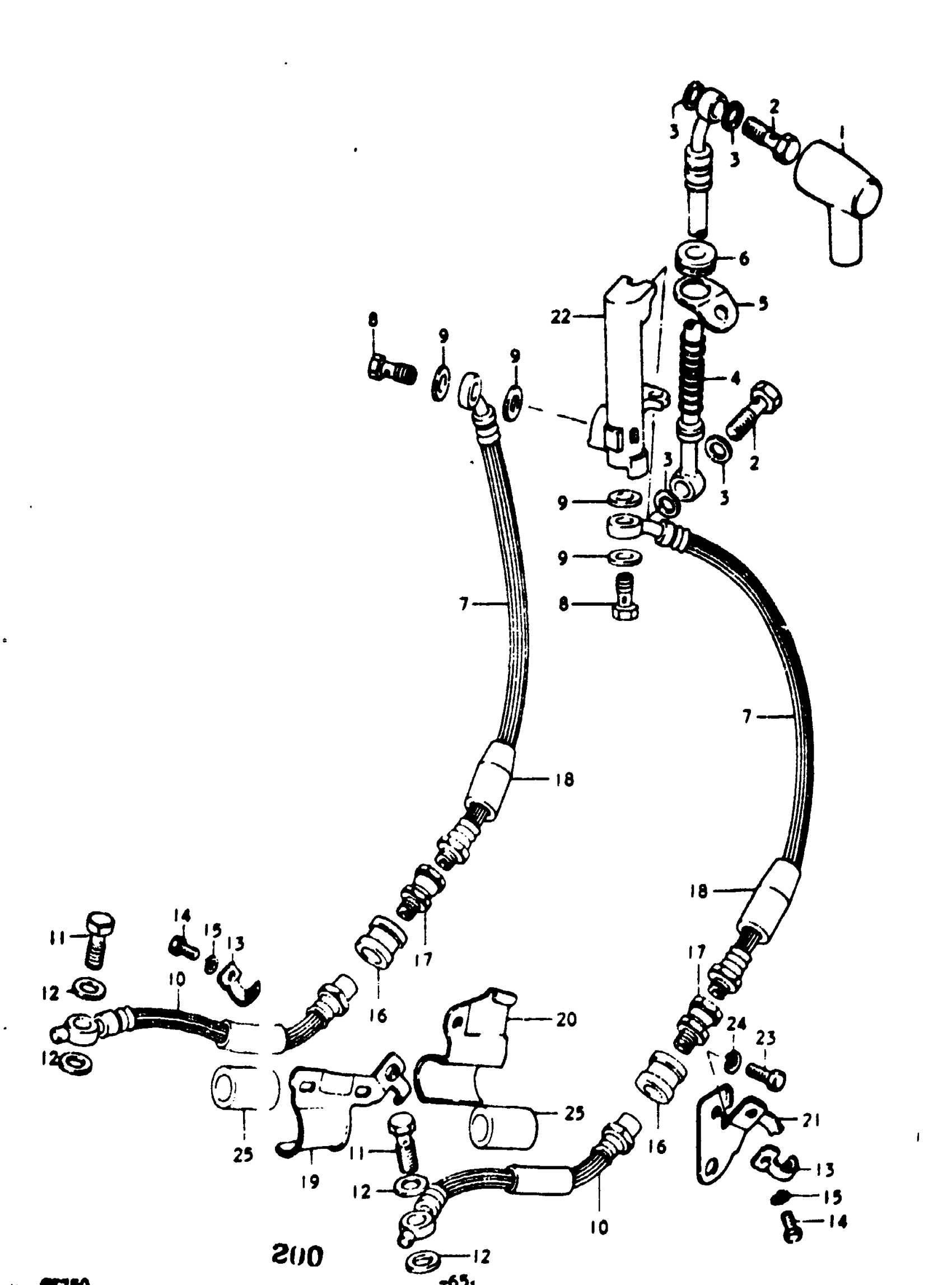

Suzuki GT750 (1977) BRAKE HOSE (GT750L Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | L,M,A,B This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | L,M,A,B This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) | L,M,A,B This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE,FRONT BRAK | L,M; TO 59480-31011 This part replaces 59480-31010.

59480-33410

Unavailable

4

HOSE,FRONT BRAK | A,B This part replaces 59480-31011.

59480-33410

Unavailable

5

GUIDE, BRAKE HOSE | L,M,A,B

59243-31000

Unavailable

6

GROMMET | L,M,A,B This part replaces 09308-14007.

09308-14009

Unavailable

7

HOSE, BRAKE (2) | L,M; TO 59240-31012 This part replaces 59240-31011.

59240-31012

Unavailable

7

HOSE, BRAKE (2) | A,B

59240-31012

Unavailable

8

UNION | L,M,A,B This part replaces 09360-10003.

09360-10017

$3.42

9

WASHER (10X15X1.5) | L,M,A,B This part replaces 09161-10005.

09161-10009

$1.84

10

BRAKE HOSE 3 | L,M; FROM 59520-31010 This part replaces 59520-31011.

59520-31013

Unavailable

10

BRAKE HOSE 3 | A,B; FROM 59520-31011 This part replaces 59520-31012.

59520-31013

Unavailable

11

UNION | L,M,A,B This part replaces 09360-10003.

09360-10017

$3.42

12

WASHER (10X15X1.5) | L,M,A,B This part replaces 09161-10005.

09161-10009

$1.84

13

CLAMP, BRAKE HOSE | L,M,A,B

59268-33100

Unavailable

14

FRM CVR,SCREW(6 | L,M,A,B This part replaces 09128-06011.

09128-06092

$1.92

15

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

16

BUSHING | L,M,A,B

09305-14003

Unavailable

17

ADAPTER, BRAKE HOSE | L,M,A,B

59290-33110

Unavailable

18

BOOT, BRAKE HOSE | L,M,A,B

59265-33100

Unavailable

19

COVER, BRAKE HOSE RH | L,M; TO 59280-33101A,B

59280-33101

Unavailable

20

COVER, BRAKE HOSE LH | L,M,A,B

59510-31200

Unavailable

21

GUIDE, BRAKE PIPE LH | L,M; TO 59470-31201

59470-31200

Unavailable

21

GUIDE, BRAKE PIPE LH | A,B

59470-31201

Unavailable

22

JOINT, THREE WAY, BRAKE HOSE | L,M,A,B

59491-31031

Unavailable

23

FRM CVR,SCREW(6 | L,M,A,B This part replaces 09128-06011.

09128-06092

$1.92

24

LOCK WASHER | L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13

25

CUSHION, BRAKE HOSE | L,M,A,B

09320-14003

Unavailable
