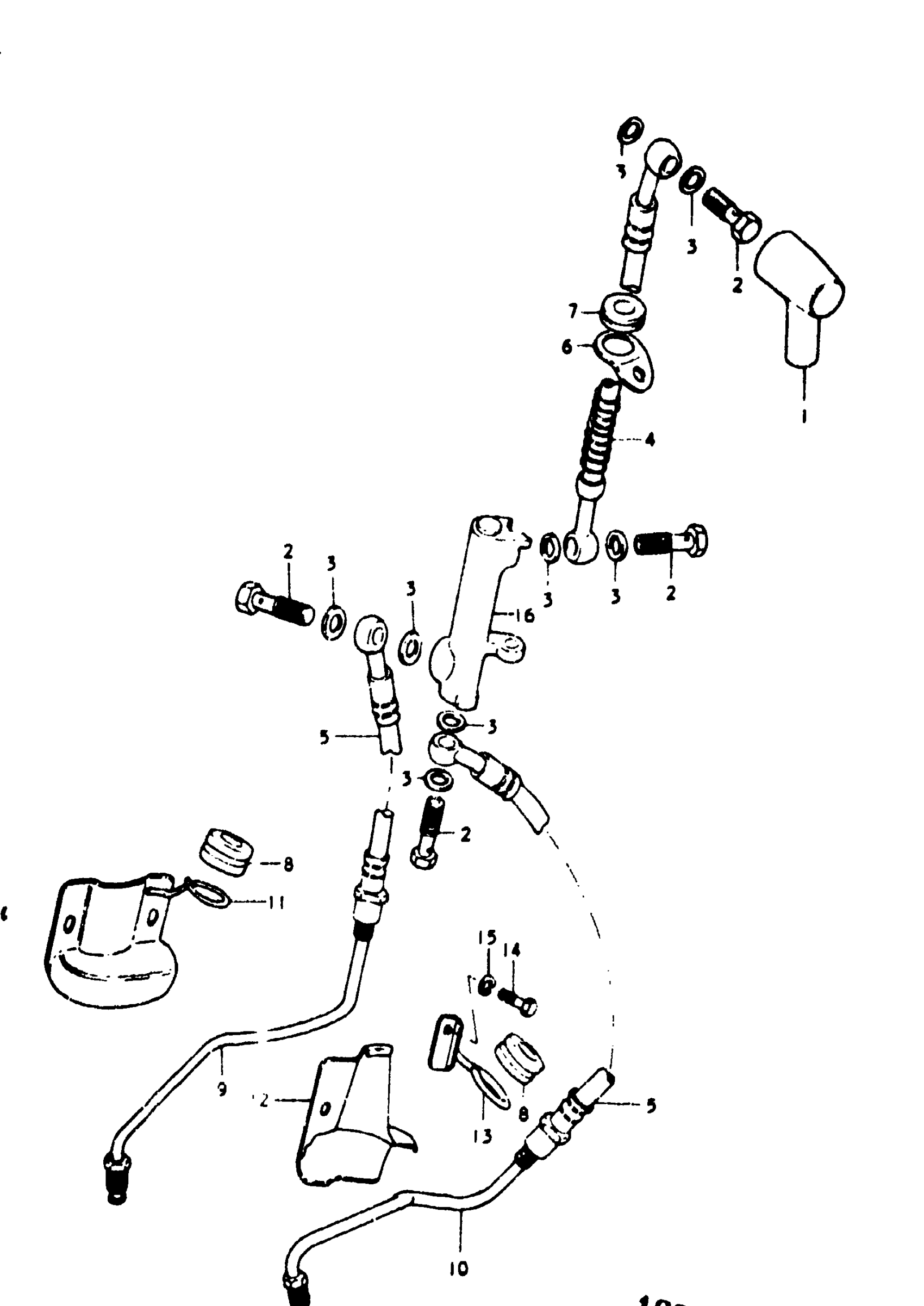

Suzuki GT750 (1977) BRAKE HOSE (GT750K) Diagram

#

Description
Price

1

BOOT, MASTER CYLINDER | K This part replaces 59711-18400.

59711-49001

$7.51

2

UNION | K This part replaces 09360-10003.

09360-10017

$3.42

3

WASHER (10X15X1.5) | K This part replaces 09161-10005.

09161-10009

$1.84

4

HOSE,FRONT BRAK | K; TO 59480-31011 This part replaces 59480-31010.

59480-33410

Unavailable

5

NO DESCRIPTION AVAILABLE | K; TO 59240-31700 This part replaces 59240-31010.

59240-31700

Unavailable

6

GUIDE, BRAKE HOSE | K

59243-31000

Unavailable

7

GROMMET | K This part replaces 09308-14007.

09308-14009

Unavailable

8

GROMMET, BRAKE HOSE | K

59244-18400

Unavailable

9

PIPE, BRAKE RH | K; TO 59250-34600

59250-34020

Unavailable

10

PIPE, BRAKE LH | K; TO 59450-31600

59450-31020

Unavailable

11

COVER, BRAKE PIPE RH | K

59280-18400

Unavailable

12

COVER, BRAKE PIPE LH | K

59510-31000

Unavailable

13

COVER, BRAKE PIPE LH | K

59470-31000

Unavailable

14

FRM CVR,SCREW(6 | K This part replaces 09128-06011.

09128-06092

$1.92

15

LOCK WASHER | K This part replaces 08321-21068.

08321-01067

$2.13

16

JOINT, THREE WAY BRAKE HOSE | K; TO 59491-31031

59491-31030

Unavailable
