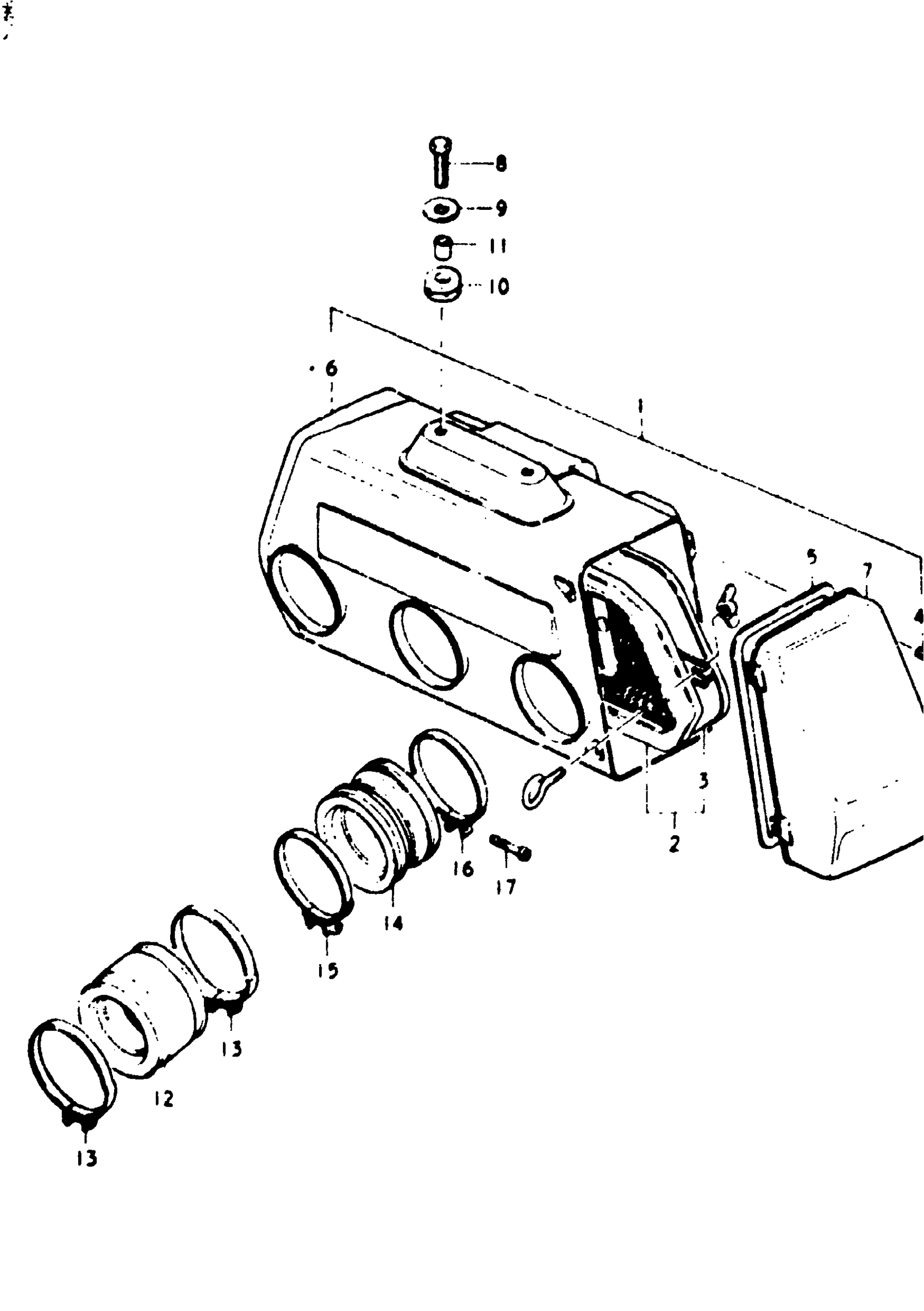

Suzuki GT750 (1977) AIR CLEANER (GT750L Diagram

#

Description
Price

1

CLEANER ASSY, AIR | L; TO 13700-31212

13700-31211

Unavailable

1

CLEANER ASSY, AIR | M,A

13700-31212

Unavailable

1

CLEANER ASSY, AIR | B; Includes Item(s) 2 - 7

13700-31213

Unavailable

2

FILTER | L,M,A,B

13780-31210

Unavailable

3

FILTER | L,M,A,B This part replaces 13781-31210.

13780-31210

Unavailable

4

SCREW | L,M,A,B This part replaces 02111-05108.

02112-05107

$1.49

5

GASKET | L,M,A,B

13799-31210

Unavailable

6

COVER, SIDE RH | M,A,B

13760-31210

Unavailable

7

COVER, SIDE LH | M,A,B

13770-31210

Unavailable

8

BOLT | L,M,A,B This part replaces 01112-06208.

01500-06207

$2.28

9

WASHER (6.5X20X1.2) | L,M,A,B; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

10

CUSHION (8.5X20X8) | L,M,A,B This part replaces 09320-08007.

09320-08510

$1.97

11

SPACER (6.5X9X7) | L,M,A,B; 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

12

PIPE, INTAKE | L,M,A,B

13111-31201

Unavailable

13

CLAMP | L,M,A,B

09402-58306

$4.77

14

ROSE, AIR INLET | L,M,A,B; FROM 13881-31200

13881-31201

Unavailable

15

CLAMP | L,M,A,B; FROM 09402-62304 This part replaces 09402-62306.

09402-62208

$6.58

16

CLAMP | L,M,A,B

09402-66306

$6.42

17

SCREW | L,M,AB This part replaces 03211-04258.

03211-0425B

$2.70
