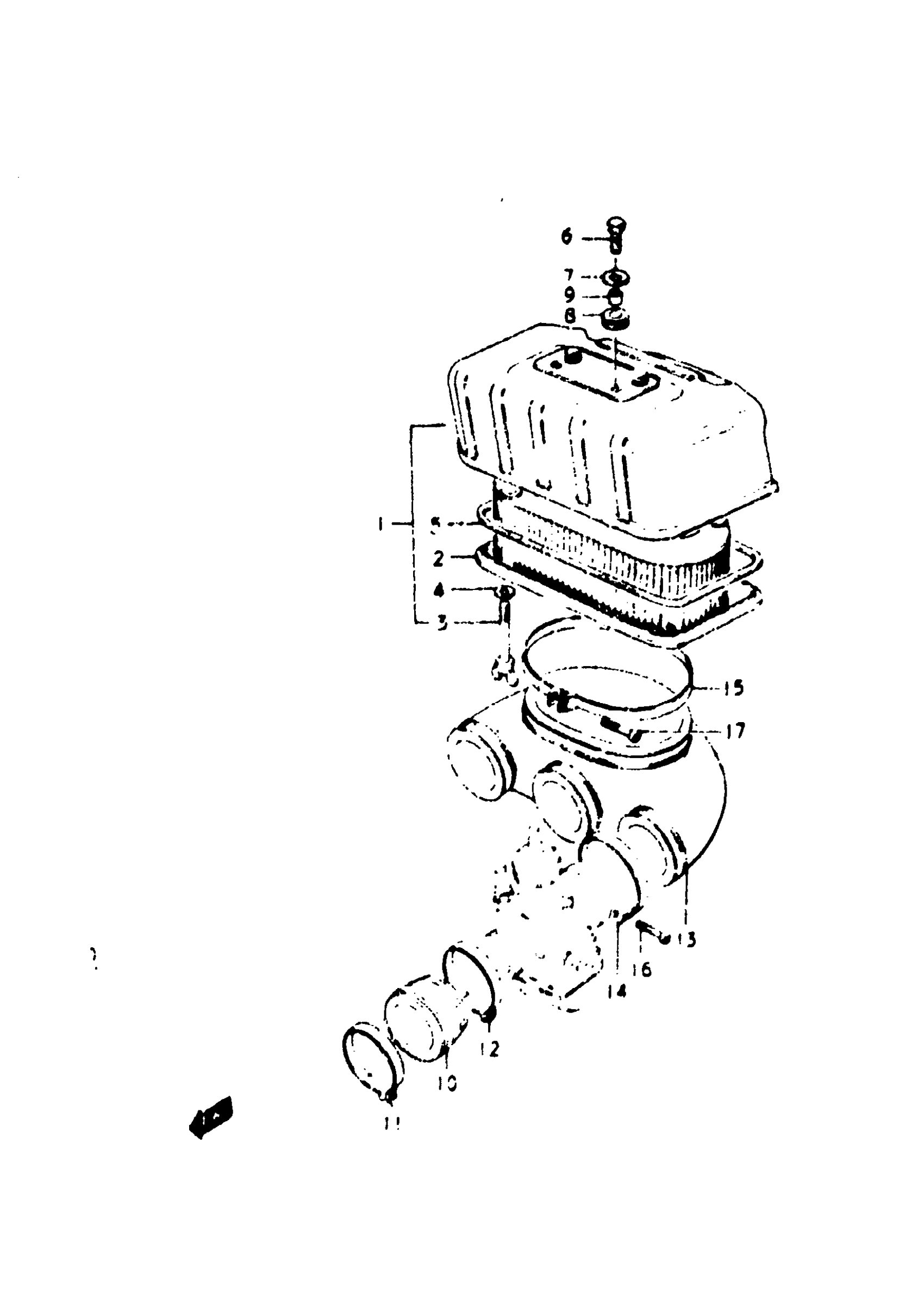

Suzuki GT750 (1977) AIR CLEANER (GT750K) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | k; Includes Item(s) 2 - 5

13700-31011

Unavailable

2

FILTER | K

13780-31011

Unavailable

3

BOLT | K

13751-31010

Unavailable

4

.WASHER | K This part replaces 08322-11068.

08322-0106B

$2.26

5

GASKET | K

13743-31010

Unavailable

6

BOLT | K This part replaces 01112-06258.

01500-06257

$1.97

7

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

8

CUSHION (8.5X20X8) | K This part replaces 09320-08007.

09320-08510

$1.97

9

SPACER (6.5X9X7) | 7x9x7 This part replaces 09180-07005.

09180-06259

$2.48

10

PIPE, INTAKE | F.NO.21134~

13110-32200

Unavailable

11

CLAMP | F.NO.21134~ This part replaces 09402-54305.

09402-54303

$3.91

12

CLAMP | WITH SCREW FROM 09402-00229

09402-50306

$4.77

13

HOSE, AIR INLET | FROM 13880-31000

13880-31001

Unavailable

14

CLAMP | FROM 09402-00235 TO 09402-64306 This part replaces 09402-64304.

09402-64203

$6.58

15

CLAMP | K

09402-00219

Unavailable

16

SCREW | K This part replaces 02111-04208.

02112-0420A

$1.49

17

SCREW | K

02111-04258

Unavailable
