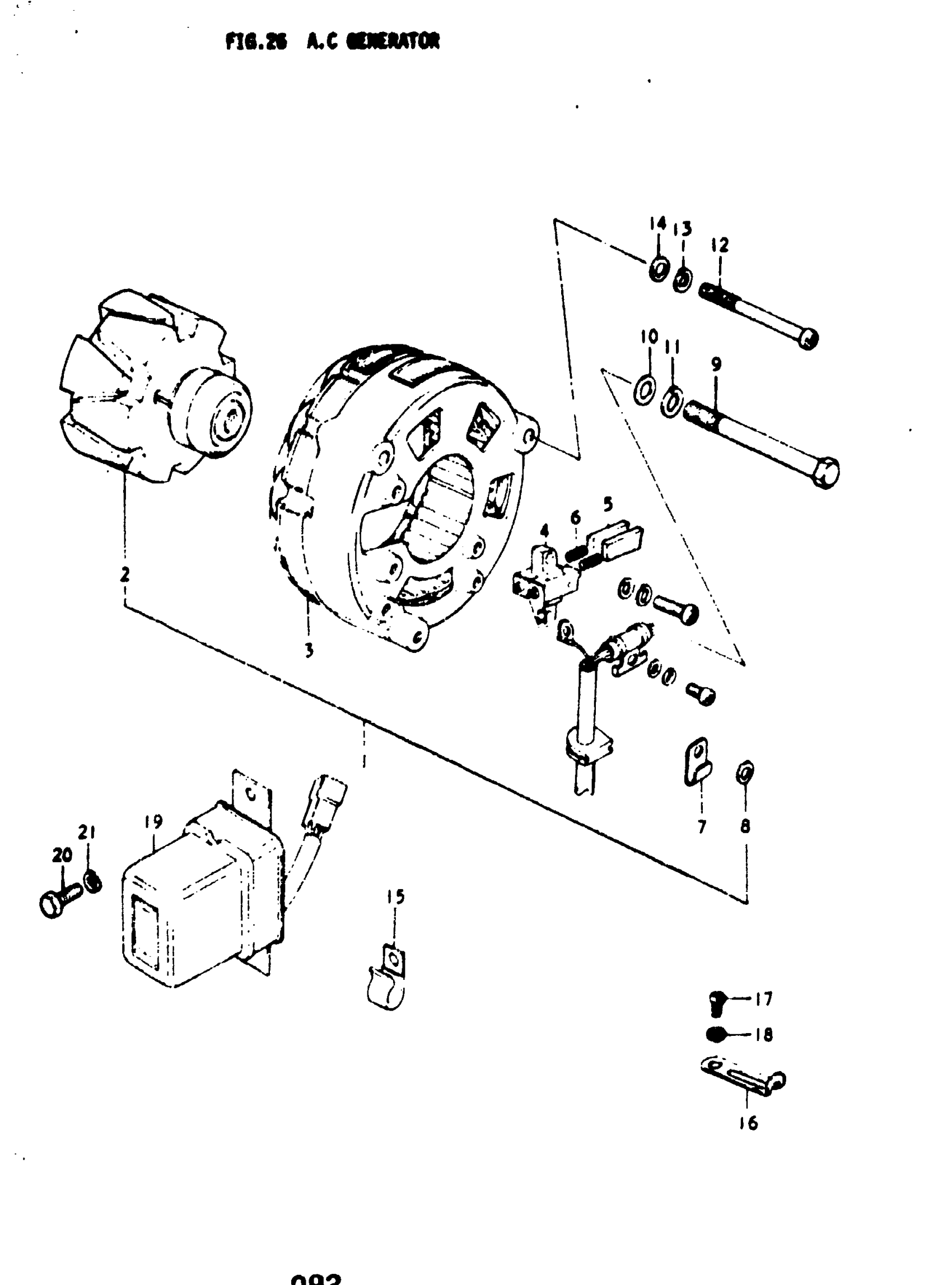

Suzuki GT750 (1977) A.C GENERATOR Diagram

#

Description
Price

1

GENERATOR ASSY | K,L,M,A; ~F.NO.66765 TO 31400-31011

31400-31010

Unavailable

1

GENERATOR ASSY | A,B; Includes Item(s) 2 - 8

31400-31011

Unavailable

2

ROTOR ASSY | K; TO 31402-31012 This part replaces 31402-31011.

31402-31012

Unavailable

2

ROTOR ASSY | L,M,A,B

31402-31012

Unavailable

3

STATOR ASSY | K,L,M,A; ~F.NO.66765 TO 31401-31013 This part replaces 31401-31012.

31401-31013

Unavailable

3

STATOR ASSY | A,B

31401-31013

Unavailable

4

HOLDER, BRUSH | K,L,M,A; ~F.NO.66765 TO 31656-31012 This part replaces 31656-31011.

31656-31012

Unavailable

4

HOLDER, BRUSH | A,B

31656-31012

Unavailable

5

BRUSH | K,L,M,A,B

31631-31011

Unavailable

6

SPRING | K,L,M,A; ~F.NO.66765 D.:0.45 This part replaces 31635-55011.

31635-55012

Unavailable

6

SPRING | A,B; D.:0.5

31635-55012

Unavailable

7

PLATE, TERMINAL | K,L,M,A,B

31667-31010

Unavailable

8

INSULATOR, HOLDER | K,L,M,A,B

31668-31010

Unavailable

9

BOLT | K,L,M,A,B

09100-08092

Unavailable

10

WASHER | K,L,M,A,B This part replaces 09160-08030.

09160-08128

$2.80

11

.LOCK WASHER | K,L,M,A,B This part replaces 08321-21088.

08321-01087

$2.13

12

SCREW | K,L,M,A,B This part replaces 02111-05658.

02112-0565B

$2.98

13

LOCK WASHER | K,L,M,A,B This part replaces 08321-21058.

08321-0105A

$1.84

14

WASHER | K,L,M,A,B This part replaces 08322-21058.

08322-01057

$2.13

15

CLAMP | K,L; FROM 09403-00048 This part replaces 09403-09302.

09404-08420

$3.16

16

CLAMP | M,A,B This part replaces 09404-08404.

09404-08420

$3.16

17

SCREW | M,A,B This part replaces 02112-06108.

02112-06107

$1.49

18

LOCK WASHER | M,A,B This part replaces 08321-21068.

08321-01067

$2.13

19

REGULATOR ASSY, VOLTAGE | K,L,M,A,B

32500-31010

Unavailable

20

BOLT, CANISTER | K,L,M,A,B This part replaces 01112-06168.

01500-06167

$1.97

21

LOCK WASHER | K,L,M,A,B This part replaces 08321-21068.

08321-01067

$2.13
