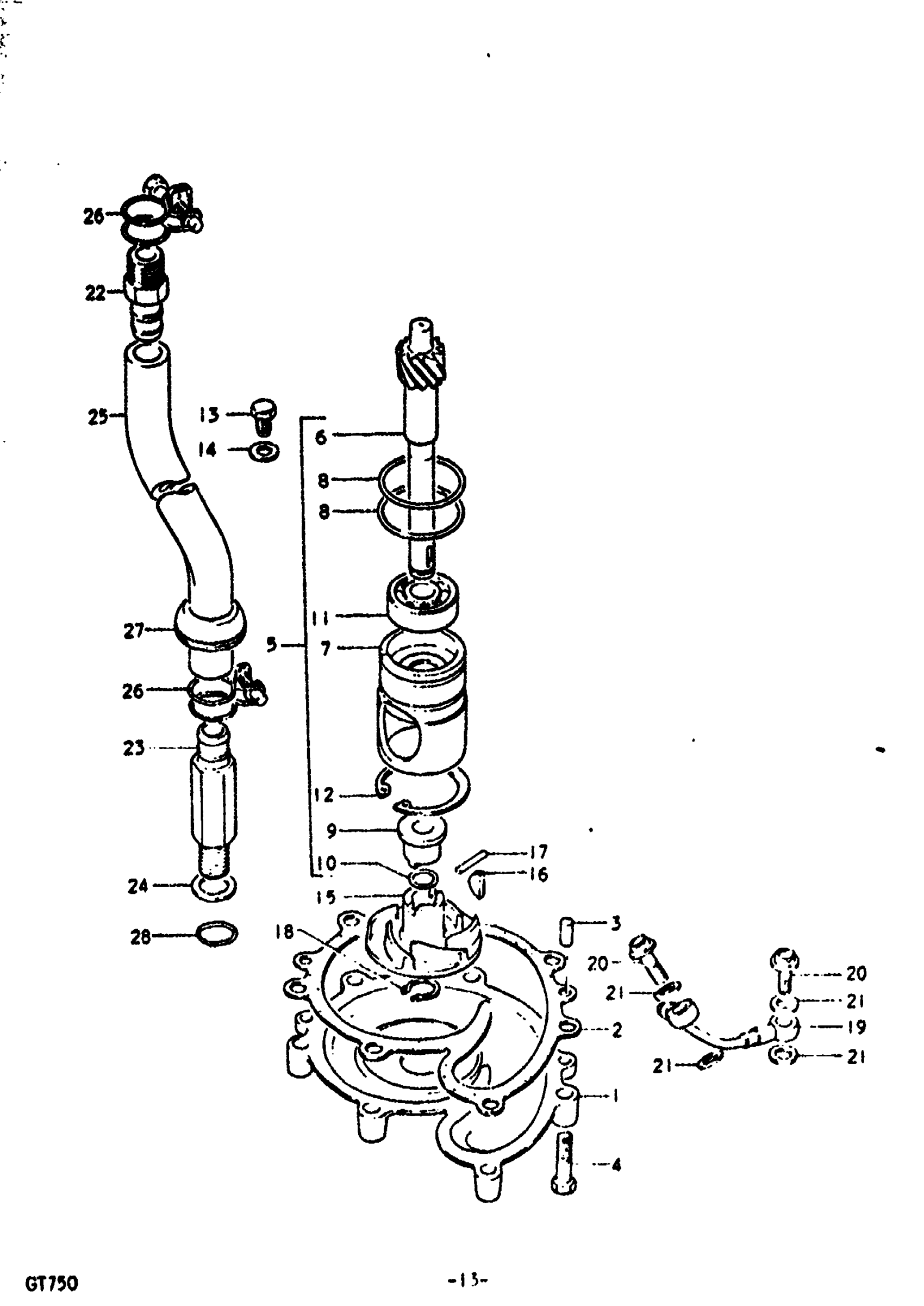

Suzuki GT750 (1972) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP

17411-31001

Unavailable

2

GASKET,WTR PUMP | FROM 17431-31001 This part replaces 17431-31002.

17431-31002-H17

Unavailable

3

PIN This part replaces 06211-05103.

04221-05109

$1.49

4

BOLT This part replaces 01112-06258.

01500-06257

$1.97

5

WATER PUMP SET | FROM 17000-31819; Includes Item(s) 6 - 11

17400-31830

Unavailable

6

SHAFT, DRIVEN | FROM 17461-31000

17461-31001

Unavailable

7

DRIVEN SHAFT HOLDER SET

17400-31809

Unavailable

8

O RING, GEAR HOUSING | 32.6x1.9 This part replaces 09280-33001.

09280-33005

$2.64

9

SEALING SEAT

17476-31000

Unavailable

10

O RING | 9.6x1.3

09280-10001

$2.02

11

BEARING

08110-62000

$14.53

12

CIRCLIP This part replaces 09381-40001.

08331-41406

$2.10

13

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

IMPELLER,WATER PUMP | FROM 17466-31000

17466-31001

Unavailable

16

KEY

08341-31039

$1.89

17

PIN

09205-03012

$2.30

18

CIRCLIP This part replaces 08331-11109.

08331-31109

$1.78

19

PIPE, AIR BREATHER

17620-31030

Unavailable

20

UNION BOLT

09360-06003

$3.76

21

GASKET | 6x11.8x1.5 This part replaces 09168-06002.

09168-06004

$1.49

22

UNION, WATER BY-PASS HOSE (1)

09362-16001

Unavailable

23

UNION, WATER BY-PASS HOSE (2)

17631-31000

Unavailable

24

GASKET

09168-14004

$1.83

25

HOSE, WATER BY-PASS

09343-13004

Unavailable

26

CLAMP This part replaces 09400-22301.

09400-22312

$3.16

27

GROMMET

09308-18005

Unavailable

28

O RING, OIL GALLERY This part replaces 09280-12002.

09280-12012

$4.64
