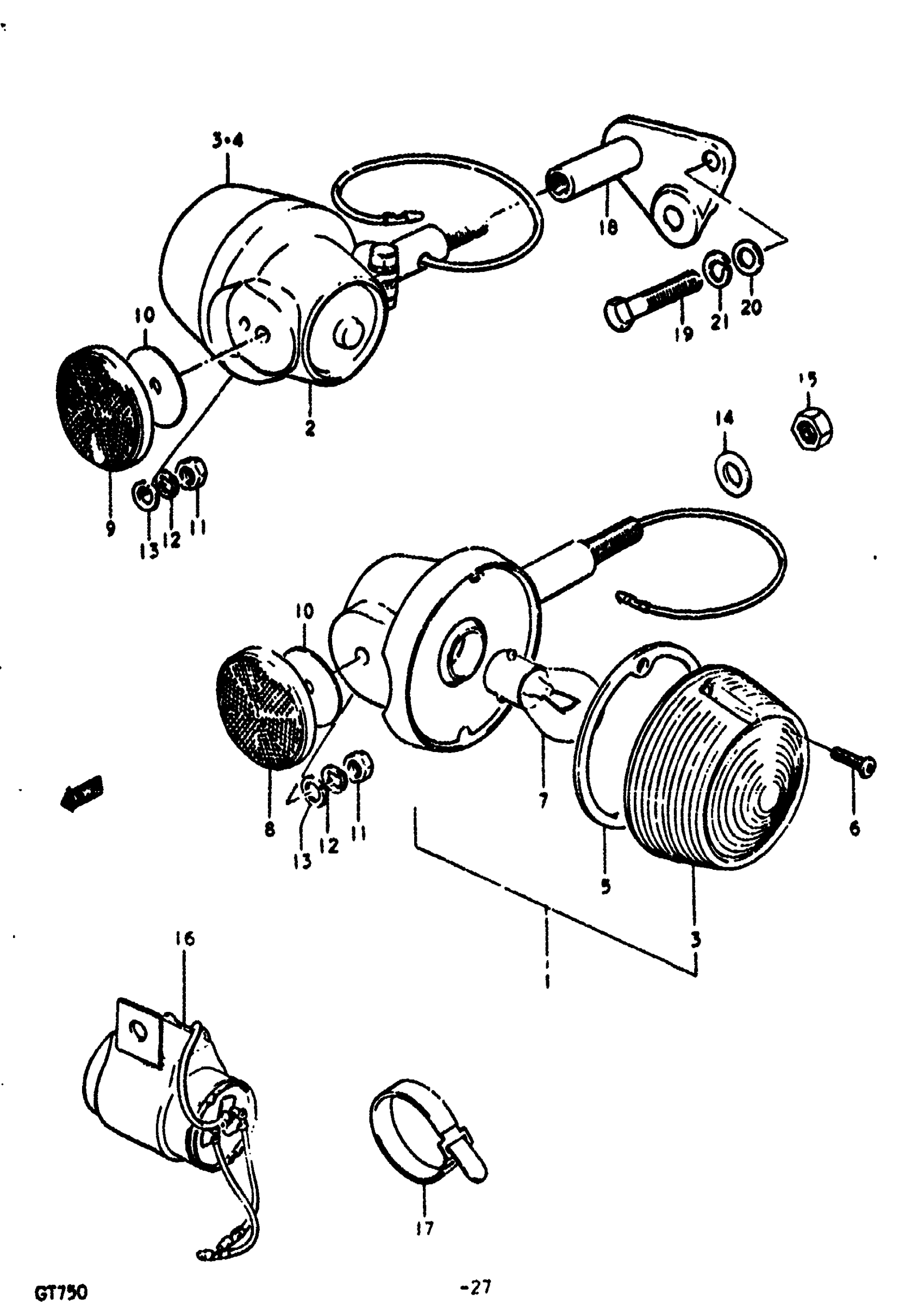

Suzuki GT750 (1972) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | FROM 35601-31010-999

35601-31010

Unavailable

2

NO DESCRIPTION AVAILABLE | FROM 35000-31815-999; Includes Item(s) 3 - 7 This part replaces 35603-31010.

35603-31010-999

Unavailable

3

LENS | AMBER

35612-31010

Unavailable

4

LENS, REAR | RED

35652-31610

Unavailable

5

GASKET

35613-03610

$13.34

6

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

7

BULB | 12V, 23W

09471-12006

$3.98

8

REFLEX REFLECTOR FRONT | AMBER This part replaces 35950-31010.

35950-49080

$17.24

9

REFLEX REFLECTOR ASSY, REAR | RED

35970-31610

Unavailable

10

CUSHION

35656-31010

Unavailable

11

NUT This part replaces 08311-11058.

08310-00057

$1.84

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

13

WASHER (5.5X18X1) | 5.5x18x1 This part replaces 09160-05003.

09160-05045

$1.93

14

WASHER This part replaces 08322-21108.

08322-01107

$2.15

15

NUT This part replaces 08312-12108.

08310-00107

$2.19

16

TURN SIGNAL REL | TO 38610-32210 This part replaces 38610-15611.

38610-322V0

Unavailable

17

CLAMP | L:90 This part replaces 09407-11302.

09407-18302

$2.28

18

BRACKET, REAR TURN SIGNAL RH

41640-33001

Unavailable

18

BRACKET, REAR TURN SIGNAL LH

41650-33001

Unavailable

19

BOLT | F.NO.22007~ This part replaces 01111-10207.

01500-1020B

$3.16

20

WASHER This part replaces 08322-21108.

08322-01107

$2.15

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
