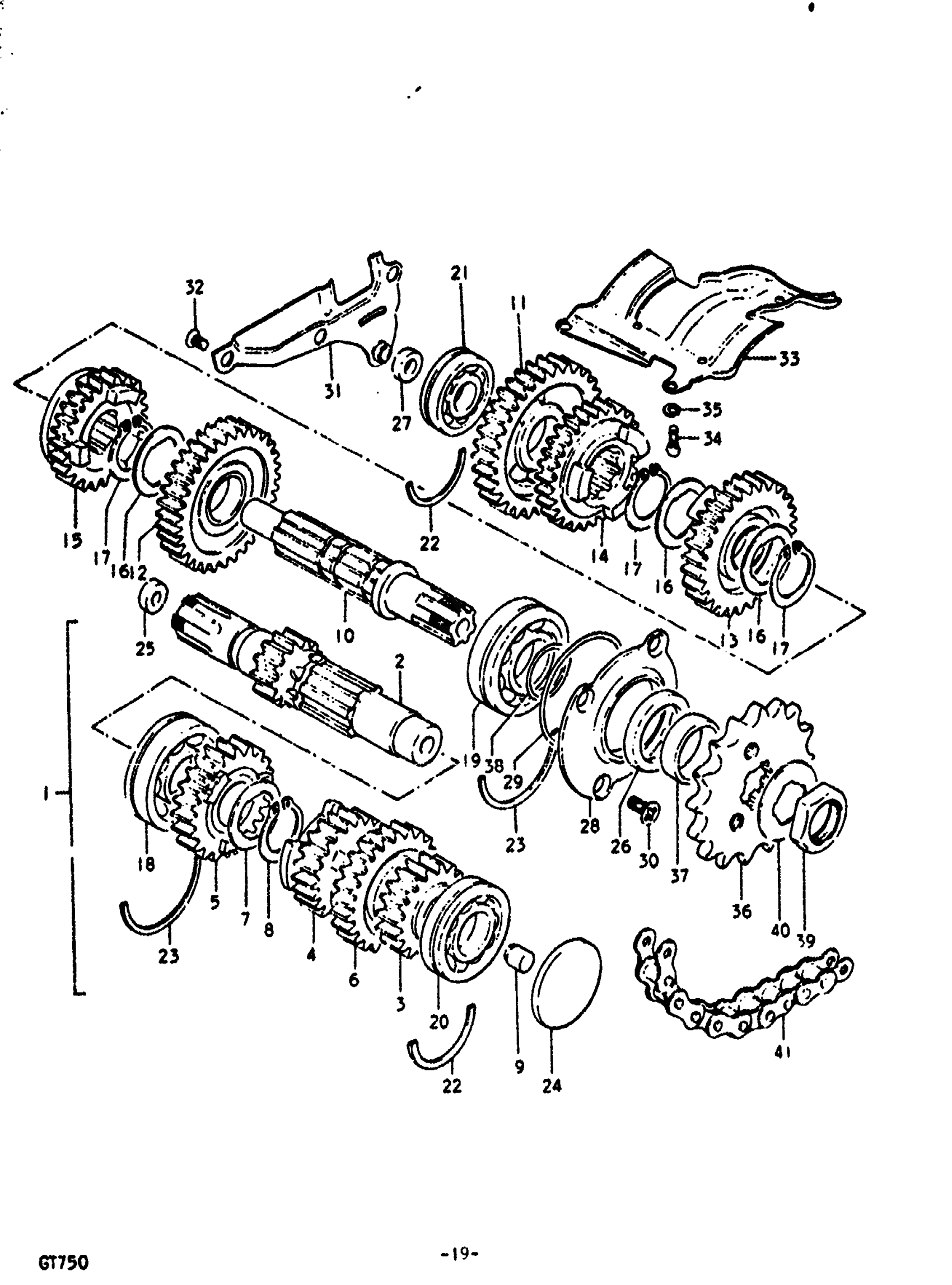

Suzuki GT750 (1972) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 9

24120-31000

Unavailable

2

COUNTERSHAFT | NT:13

24121-31000

Unavailable

3

GEAR, 2ND DRIVE (NT:18) | NT:19 This part replaces 24221-31000.

24221-49001

Unavailable

4

GEAR, 3RD DRIVE | NT:22

24231-31000

Unavailable

5

GEAR, 4TH DRIVE | NT:24 This part replaces 24240-31000.

24240-49000

Unavailable

6

GEAR, 5TH DRIVE | NT:26 TO 24250-31001 This part replaces 24250-31000.

24250-31001

Unavailable

7

WASHER

09167-28001

$4.60

8

CIRCLIP | FROM 09380-28002 This part replaces 08331-11289.

08331-31289

$2.19

9

PLUG

09243-09001

Unavailable

10

DRIVE SHAFT

24131-31000

Unavailable

11

GEAR SET, 1ST DRIVEN | NT:37 SEE NOTE

24310-31821

Unavailable

12

GEAR SET, 2ND DRIVEN | NT:33 SEE NOTE

24320-31822

Unavailable

13

GEAR, 3RD DRIVEN | NT:30 This part replaces 24330-31000.

24330-37000

Unavailable

14

GEAR, 4TH DRIVEN | NT:27

24341-31000

Unavailable

15

GEAR, 5TH DRIVEN | NT:24 FROM 24351-31000

24351-31001

Unavailable

16

WASHER

09167-28001

$4.60

17

CIRCLIP | FROM 09380-28002 This part replaces 08331-11289.

08331-31289

$2.19

18

BEARING

09262-25024

Unavailable

19

BEARING

08163-63050

Unavailable

20

B1 20X47X14 BEA This part replaces 08163-62040.

09262-20047

$34.92

21

BEARING

09262-20036

Unavailable

22

O RING

09390-47003

Unavailable

23

O RING

09390-62001

Unavailable

24

PLUG

09242-47001

Unavailable

25

OIL SEAL

09284-10002

$2.90

26

OIL SEAL

09283-32003

$7.31

27

OIL SEAL

09285-08003

Unavailable

28

RETAINER, OIL SEAL

24751-31000

Unavailable

29

O RING This part replaces 09280-64002.

09280-64001

Unavailable

30

SCREW This part replaces 02122-06128.

02122-06127

$1.84

31

PLATE, OIL RESERCOIR

24870-31000

Unavailable

32

SCREW This part replaces 02122-06128.

02122-06127

$1.84

33

PLATE, OIL GUIDE

24881-31000

Unavailable

34

SCREW This part replaces 02112-05168.

02112-05167

$1.97

35

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

36

SPROCKET, ENGINE | NT:15

27511-33600

Unavailable

36

SPROCKET, ENGINE | NT:16 OPT

27511-34000

Unavailable

37

SPACER | 25x32x10.7

09180-25033

Unavailable

38

O RING

09280-25001

$1.56

39

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

40

WASHER

09167-25007

Unavailable

41

CHAIN, DRIVE | DID 50HDSS, 108l FROM 27000-31013 This part replaces 27600-31015.

27600-15911

Unavailable
