1972 Suzuki GT750 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

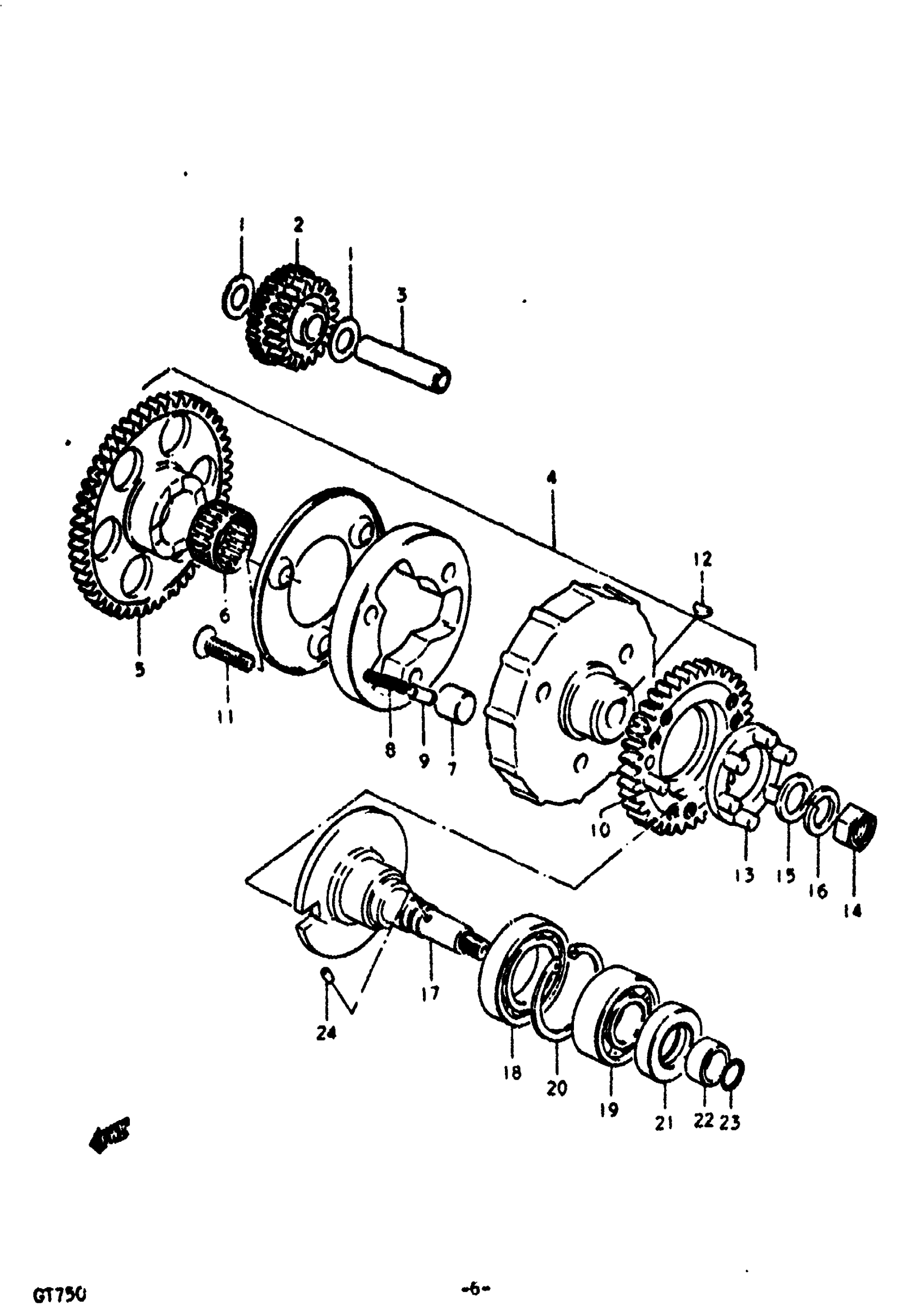

1972 Suzuki GT750 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WASHER | 13.3x25x0.85

09160-13003

2
Out of stock

2

GEAR, STARTER IDLE | NT:43/22

12611-31000

1
Out of stock

3

PIN

09206-13003

1
Out of stock

4

NO DESCRIPTION AVAILABLE | FROM 12603-31816; Includes Item(s) 5 - 11 This part replaces 12600-31832.

12600-31833

1
Out of stock

5

GEAR | NT:55

12620-31003

1
Out of stock

6

BEARING This part replaces 09263-25011.

09263-25020

2
Out of stock

7

ROLLER

09261-15001

3
Out of stock

8

SPRING

09440-04015

3
Out of stock

9

PIECE, ROLLER PUSH

12633-31000

3
Out of stock

10

PIN | FOR 12643-31002 PAINTED BLUE

09261-07003

—
Out of stock

10

PIN (L:20) | FOR 12643-31002 PAINTED RED This part replaces 06211-07202.

04221-07209

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 02121-08308.

09126-08003

3
Out of stock

12

KEY

08341-31039

1
Out of stock

13

RUBBER, BREAKER CAM SHAFT | FROM 12719-31040

12582-31040

1
Out of stock

14

NUT, FIXED DRIVE FACE This part replaces 08312-11128.

09140-12039

1
Out of stock

15

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

16

LOCK WASHER This part replaces 08321-21128.

08321-01127

1
Out of stock

17

SHAFT, BREAKER CAM | FROM 12711-31000

12555-31000

1
Out of stock

18

BEARING

09262-30020

1
Out of stock

19

BEARING (15X42X13) This part replaces 08110-63020.

09262-15027

1
Out of stock

20

CIRCLIP This part replaces 08331-21429.

08331-41429

1
Out of stock

21

OIL SEAL

09283-20024

1
Out of stock

22

SPACER

09180-14006

1
Out of stock

23

O RING

09280-12003

1
Out of stock

24

PIN This part replaces 06211-03052.

04221-03059

1
Out of stock
