1972 Suzuki GT750 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

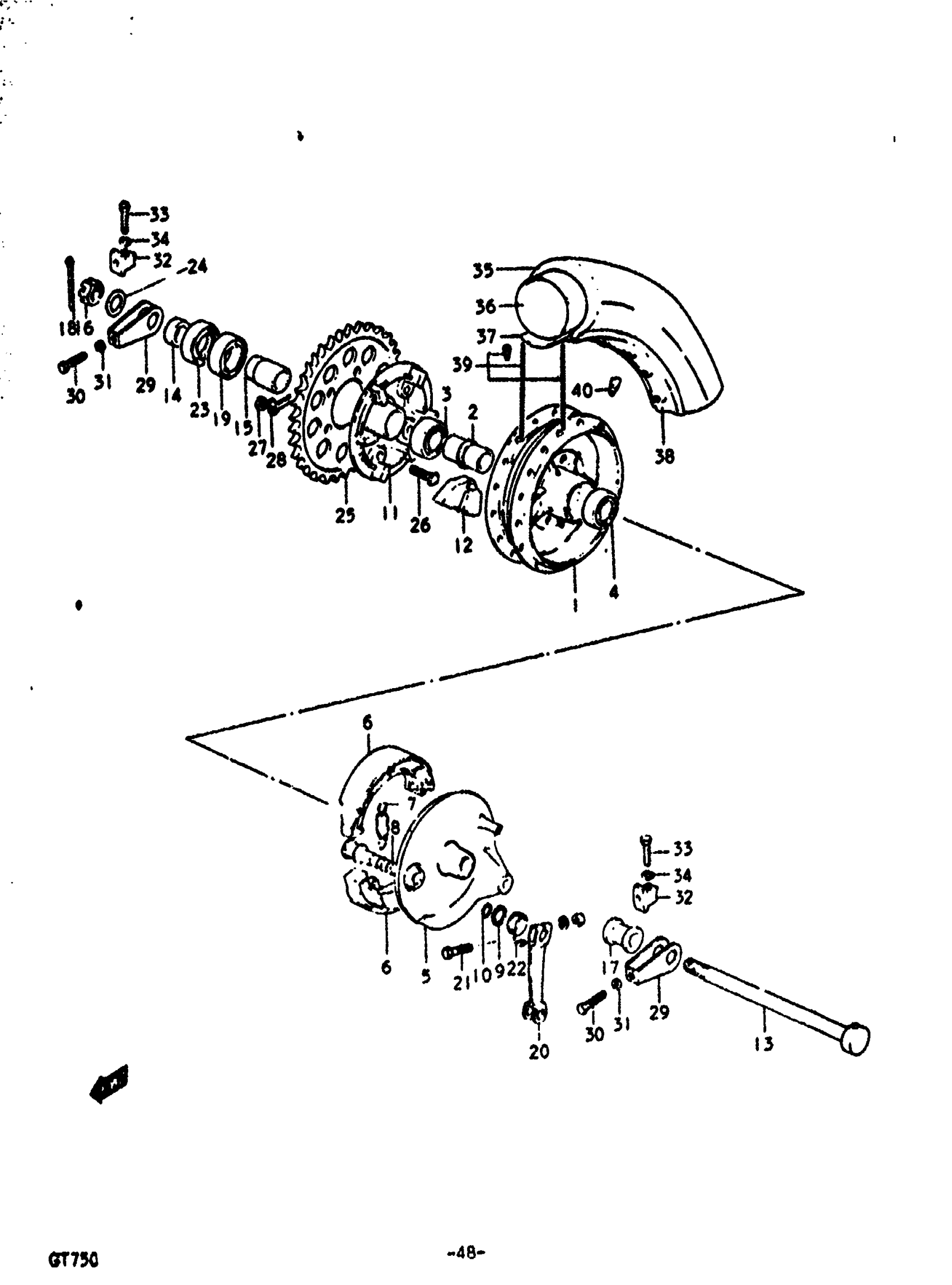

1972 Suzuki GT750 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB SET, WHEEL | Includes Item(s) 2 - 4

64100-31830

1
Out of stock

2

SPACER

64730-31000

1
Out of stock

3

1

$36.75

In stock

4

BEARING, LH This part replaces 08143-62040.

09262-20042

1
Out of stock

5

PANEL

64210-31001

—
Out of stock

6

SHOE SET, BRAKE This part replaces 64410-31000.

64400-31830

2
Out of stock

7

SPRING

55420-30000

2
Out of stock

8

CAM, BRAKE | FROM 54440-11002 This part replaces 54440-11003.

64440-38A00

1
Out of stock

9

WASHER | 15x24x1.6 This part replaces 09160-15001.

09160-15048

1
Out of stock

10

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

11

DRUM, SPROCKET This part replaces 64611-31000.

64611-31003

1
Out of stock

12

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

6
Out of stock

13

AXLE, REAR

64711-31000

1
Out of stock

14

SPACER

09180-20041

1
Out of stock

15

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

1
Out of stock

16

NUT | FROM 08314-31187 This part replaces 08314-31188.

08314-3118A

1
Out of stock

17

SPACER | 20x33x10.5

09180-20040

1
Out of stock

18

PIN, COTTER This part replaces 04111-40408.

04111-4040A

1
Out of stock

19

BEARING, DRUM This part replaces 08113-63054.

09262-25073

1
Out of stock

20

LEVER, BRAKE CAM

64451-31002

1
Out of stock

21

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

22

SPRING This part replaces 09448-30001.

09448-30001-XC0

1
Out of stock

23

OIL SEAL

09285-33001

1
Out of stock

24

WASHER | 19x34x4

09160-19008

1
Out of stock

25

SPROCKET, REAR | NT:47

64511-31731

1
Out of stock

25

SPROCKET, REAR | NT:43 OPT

64511-31700

1
Out of stock

25

SPROCKET, REAR | NT:45 OPT

64511-31000

1
Out of stock

25

NO DESCRIPTION AVAILABLE | NT:49 OPT This part replaces 64511-31740.

64511-31741

1
Out of stock

25

SPROCKET, REAR | NT:51 OPT

64511-31750

1
Out of stock

26

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

27

NUT This part replaces 08312-32108.

08310-00107

6
Out of stock

28

WASHER

09169-10007

3
Out of stock

29

ADJUSTER, CHAIN This part replaces 61410-31000.

61410-31001

2
Out of stock

30

BOLT (8X50) | 8x50 This part replaces 09104-08006.

09104-08034

2
Out of stock

31

2

$1.93

In stock

32

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

33

BOLT This part replaces 01122-08408.

01500-0840A

2
Out of stock

34

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

35

TIRE | 4.00-18FROM 65100-31012

65100-31600

—
Out of stock

36

TUBE, INNER | 4.00-18 This part replaces 65200-15011.

65200-49015

1
Out of stock

37

IN TUBE PROTECT | 25-18 This part replaces 65261-15010.

55261-26F10

1
Out of stock

38

RIM | 2.158-18

65311-15020

1
Out of stock

39

SPOKE SET, REAR

65300-31812

1
Out of stock

40

BALANCER WHEEL (30G) | (0~3) FROM 55412-37000 30G This part replaces 55412-11000.

55413-41F00

1
Out of stock

40

BALANCER WHEEL (15G) | (0~3) FROM 55411-37000 20G This part replaces 55411-11000.

55411-26G00

1
Out of stock
