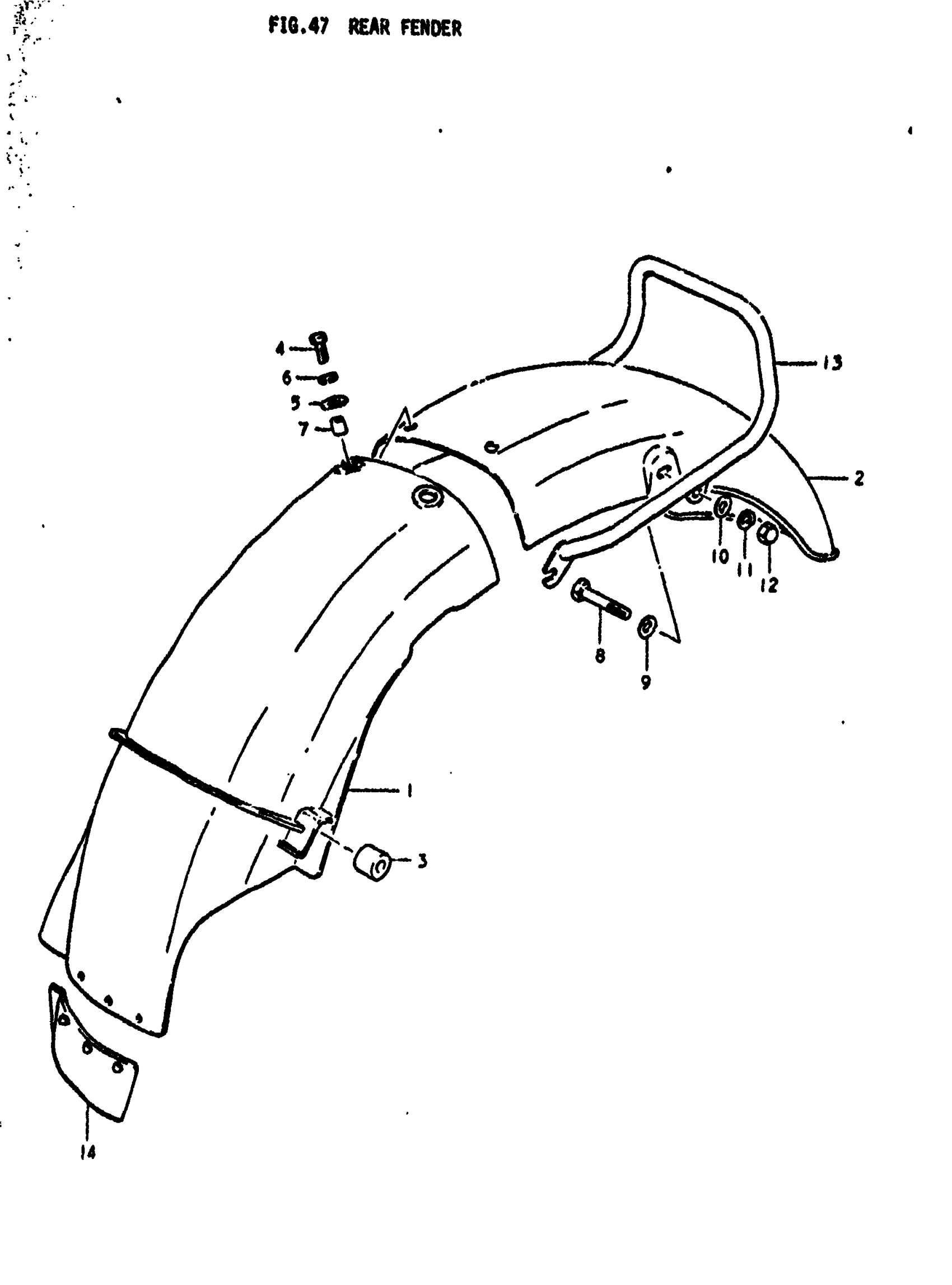

Suzuki GT750 (1972) REAR FENDER Diagram

#

Description
Price

1

BODY RR FENDER, | TO 63112-31001 USED WITH 09250-09003 (2PCS) This part replaces 63112-31000.

63112-31002

Unavailable

2

BODY, REAR FENDER REAR | FROM 63113-31000 TO 63113-31002

63113-31001

Unavailable

3

CUSHION This part replaces 09329-05003.

09329-05009

$2.37

4

BOLT This part replaces 01112-06208.

01500-06207

$2.28

5

.WASHER This part replaces 08322-21063.

08322-0106B

$2.26

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

SPACER | 7.6x10x5

09180-07007

Unavailable

8

BOLT This part replaces 01122-08558.

01500-08557

$3.16

9

WASHER This part replaces 09160-08033.

09160-08126

$2.44

10

WASHER This part replaces 08322-21088.

08322-01087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

NUT This part replaces 08313-11087.

08313-10087

$2.28

13

BUMPER, REAR

94710-31000

Unavailable

14

MUD GUARD, REAR FENDER

63411-15101

Unavailable
