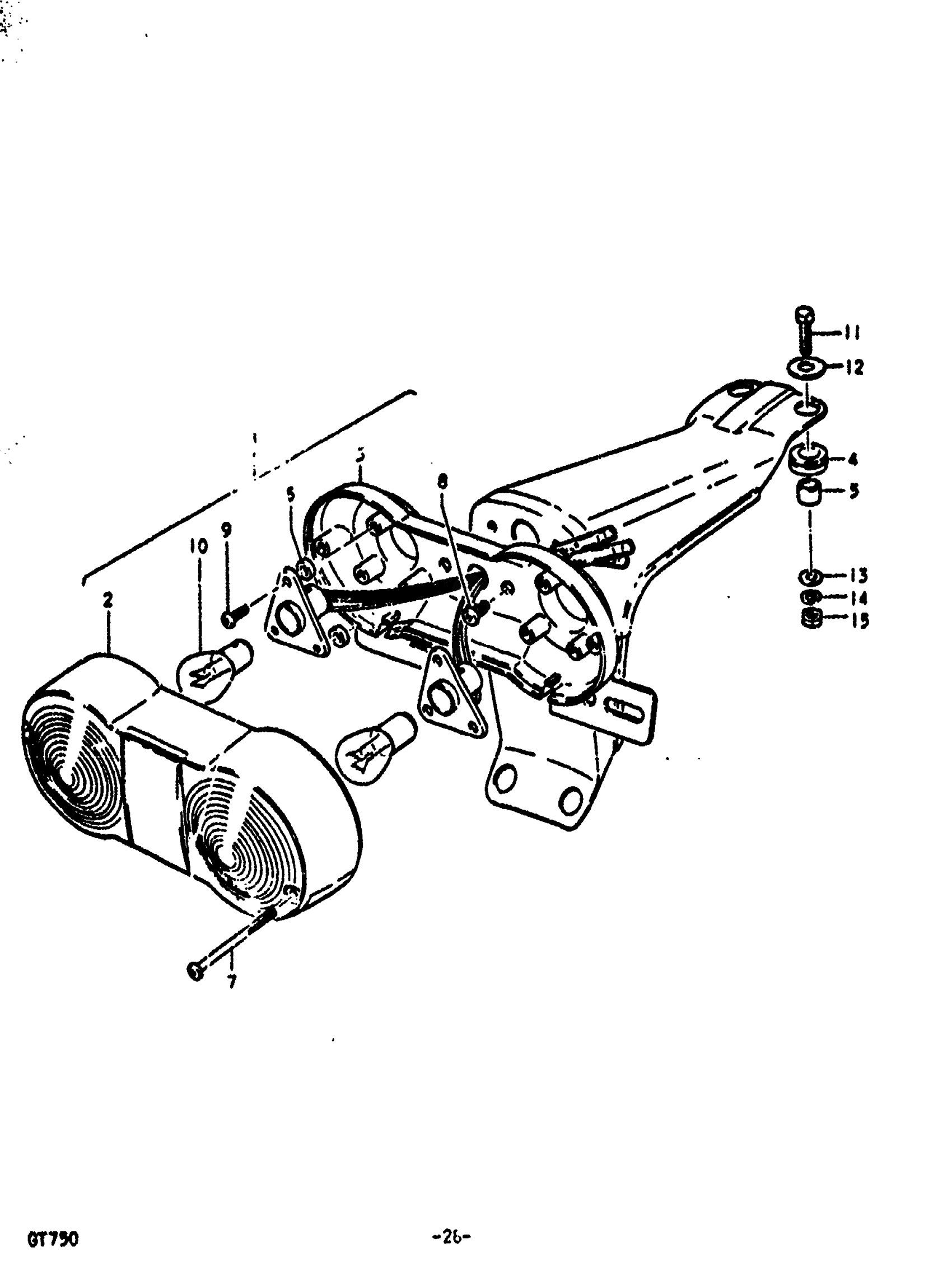

Suzuki GT750 (1972) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION | FROM 35710-31611-99@; Includes Item(s) 2 - 10

35710-31611

Unavailable

2

LENS

35712-31610

Unavailable

3

HOUSING

35715-31610

Unavailable

4

CUSHION

35765-15010

Unavailable

5

SPACER This part replaces 35766-15010.

35766-37110

$5.28

6

CUSHION

35765-31610

Unavailable

7

SCREW This part replaces 02111-04508.

02112-0450A

$1.51

8

SCREW This part replaces 02111-05087.

02112-05087

$1.49

9

SCREW This part replaces 02111-04107.

02112-04107

$1.55

10

BULB | 12V, 23/8W

09471-12035

$4.49

11

BOLT, GEAR SHIFT ARM | 6x22 This part replaces 09100-06039.

01500-0625A

$1.78

12

WASHER (6.5X20X1.6) | 6.5x20x1.6 This part replaces 09160-06020.

09160-06066

$1.89

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

15

.NUT This part replaces 08311-11068.

08310-00067

$2.13
