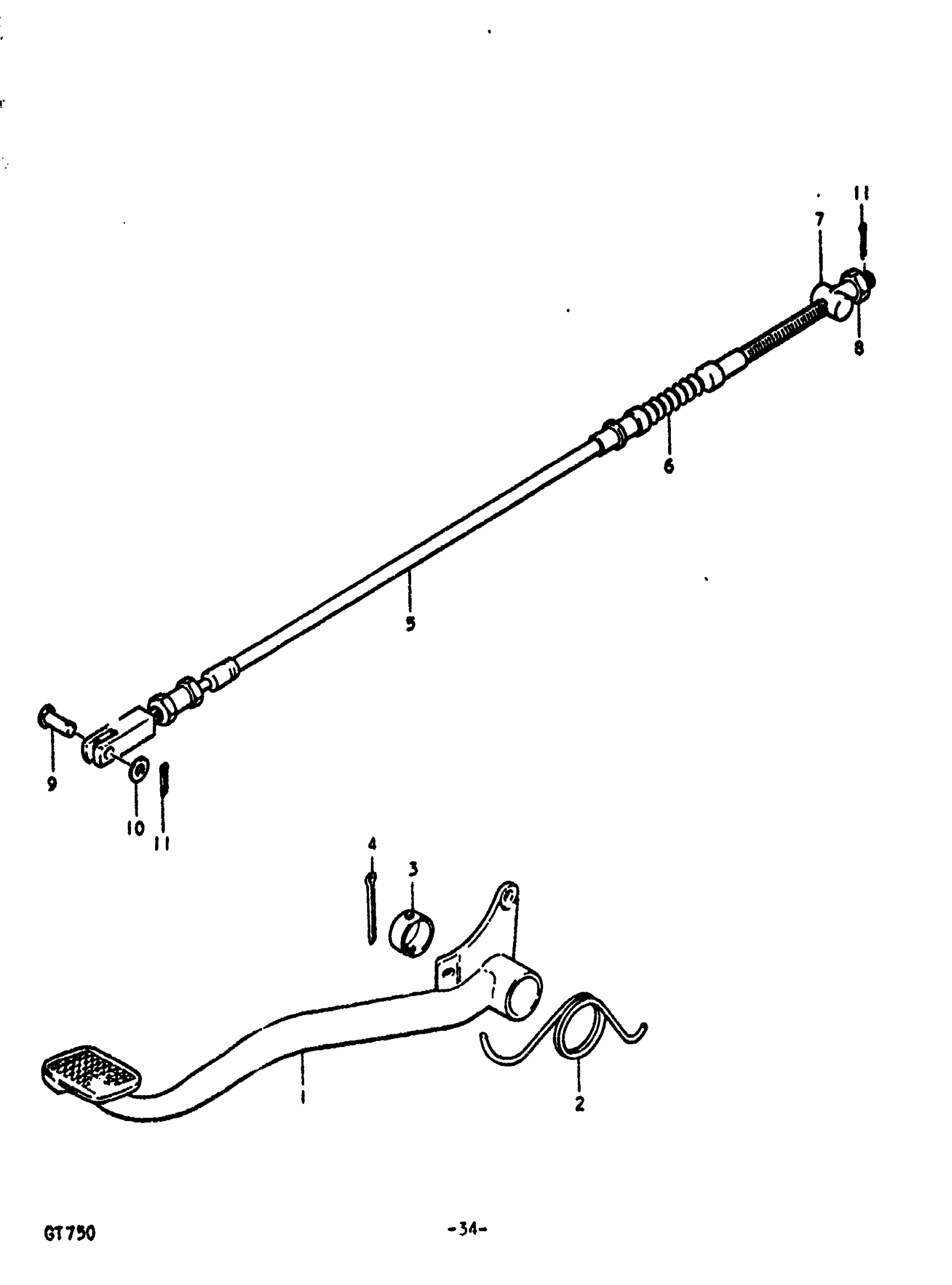

Suzuki GT750 (1972) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-31000

Unavailable

2

SPRING This part replaces 09448-37010.

09448-37010-XC0

$3.93

3

C\P

43135-31000

Unavailable

4

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

5

CABLE ASSY, REAR BRAKE | Includes Item(s) 6 - 8

58500-31000

Unavailable

6

DUST SEAL

09287-05001

Unavailable

7

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

8

.NUT This part replaces 09150-06001.

09150-06010

$3.10

9

PIN

09200-05001

$1.65

10

WASHER This part replaces 08322-21068.

08322-01067

$2.13

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
