1972 Suzuki GT750 Radiator SUB Tank Diagram

← All diagrams

Find the part on the Radiator SUB Tank diagram for your 1972 Suzuki GT750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

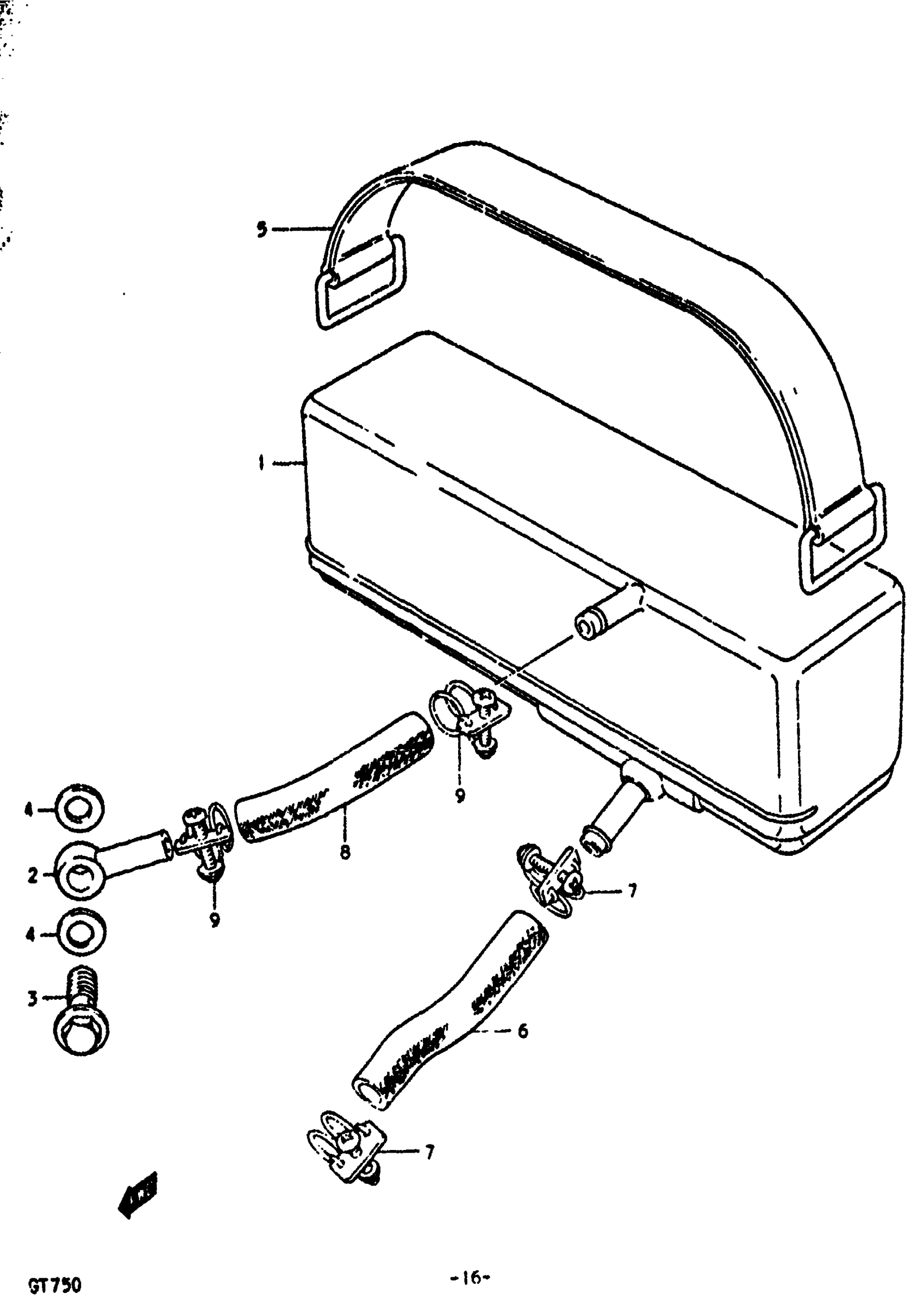

1972 Suzuki GT750 Radiator SUB Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, RADIATOR SUB

17721-31000

1
Out of stock

2

HOSE, OIL (L:512!97) This part replaces 09363-06006.

16810-07520

1
Out of stock

3

UNION BOLT

09360-06003

1

$3.70

In stock

4

GASKET

09168-06004

2
Out of stock

5

BAND This part replaces 09462-00051.

09462-00051-XC0

1
Out of stock

7

OIL HOSE CLAMP This part replaces 09400-10301.

09400-10302

2
Out of stock

8

HOSE (2) | 5.5x9.5x52

09343-05087

1

$7.02

In stock

9

OIL HOSE CLAMP This part replaces 09400-10301.

09400-10302

2
Out of stock
