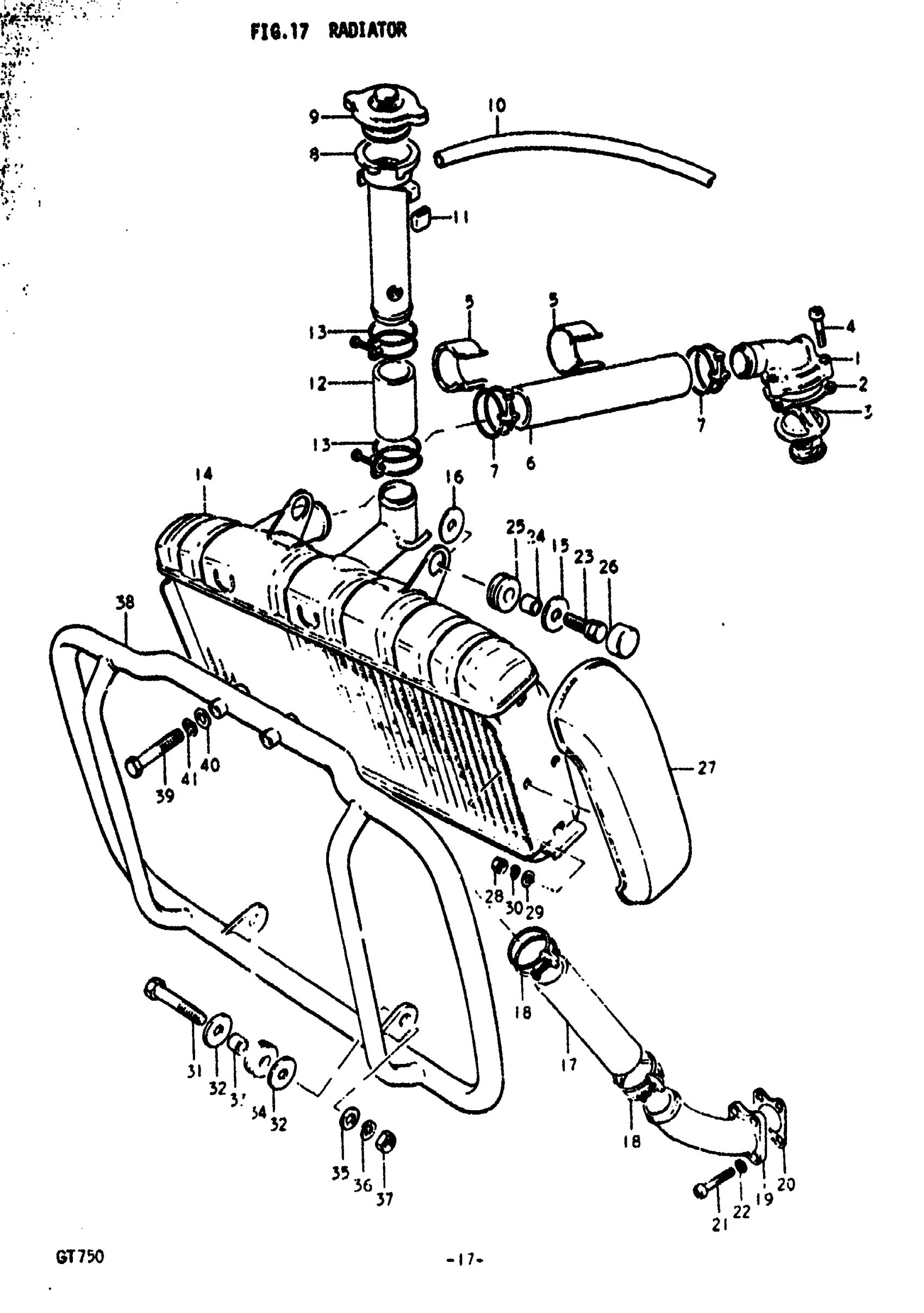

Suzuki GT750 (1972) RADIATOR Diagram

#

Description
Price

1

COVER, THERMOSTAT | FROM 17661-31000

17661-31002

Unavailable

2

GASKET, THERMOSTAT COVER

17668-31000

Unavailable

3

THERMOSTAT, WATER

17670-65020

Unavailable

4

SCREW

02112-06307

$1.97

5

COVER, RADIATOR HOSE

17856-31000

Unavailable

6

HOSE

09343-31001

Unavailable

7

CLAMP | FROM 09400-00013 This part replaces 09400-40401.

09400-40311

$2.85

8

PIPE, WATER INLET | Includes Item(s) 9 - 10

17710-31010

Unavailable

9

CAP COMP,RES TA This part replaces 17780-31010.

17920-78000

$40.10

10

HOSE, WATER OVER FLOW

17715-31010

Unavailable

11

CUSHION

09329-01003

$2.72

12

HOSE | TO 09343-31001 This part replaces 09343-31003.

09343-31001

Unavailable

13

CLAMP | FROM 94000-00013 This part replaces 09400-40401.

09400-40311

$2.85

14

RADIATOR SET | FROM 17700-31813; Includes Item(s) 15 - 16

17700-31830

Unavailable

15

WASHER, EXHAUST SUPPORT | (2~4) 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

16

WASHER | (0~2) 8.5x29x2

09160-08006

Unavailable

17

HOSE | TO 09343-31001 This part replaces 09343-31002.

09343-31001

Unavailable

18

CLAMP | FROM 09400-00013 This part replaces 09400-40401.

09400-40311

$2.85

19

CONNECTOR, WATER INLET

17854-31000

Unavailable

20

GASKET, INLET CONNECTOR

17855-31000

Unavailable

21

SCREW This part replaces 02112-06258.

02112-06257

$1.78

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

BOLT

09111-08010

Unavailable

24

SPACER, TAIL COVER RR RR | 8.6x13.8x9 This part replaces 09180-08050.

09180-08199

$2.12

25

CUSHION This part replaces 09320-13005.

09320-13025

$2.72

26

STOPPER

09329-10009

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 17760-31000-195.

17700-31840

Unavailable

27

NO DESCRIPTION AVAILABLE This part replaces 17760-31000-216.

17700-31840

Unavailable

28

NUT This part replaces 08311-11058.

08310-00057

$1.84

29

WASHER This part replaces 08322-11058.

08322-01057

$2.13

30

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

31

BOLT This part replaces 01122-08408.

01500-0840A

$2.60

32

WASHER, EXHAUST SUPPORT | 2~4)8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

32

WASHER | 0~2)8.5x29x2

09160-08006

Unavailable

33

SPACER, TAIL COVER RR RR This part replaces 09180-08050.

09180-08199

$2.12

34

CUSHION This part replaces 09320-13005.

09320-13025

$2.72

35

WASHER This part replaces 08322-11088.

08322-01087

$2.13

36

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

37

NUT This part replaces 08312-11088.

08310-00087

$2.13

38

BUMPER, RADIATOR

94970-31000

Unavailable

39

BOLT This part replaces 01122-08508.

01500-08507

$3.05

40

WASHER This part replaces 08322-11088.

08322-01087

$2.13

41

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
