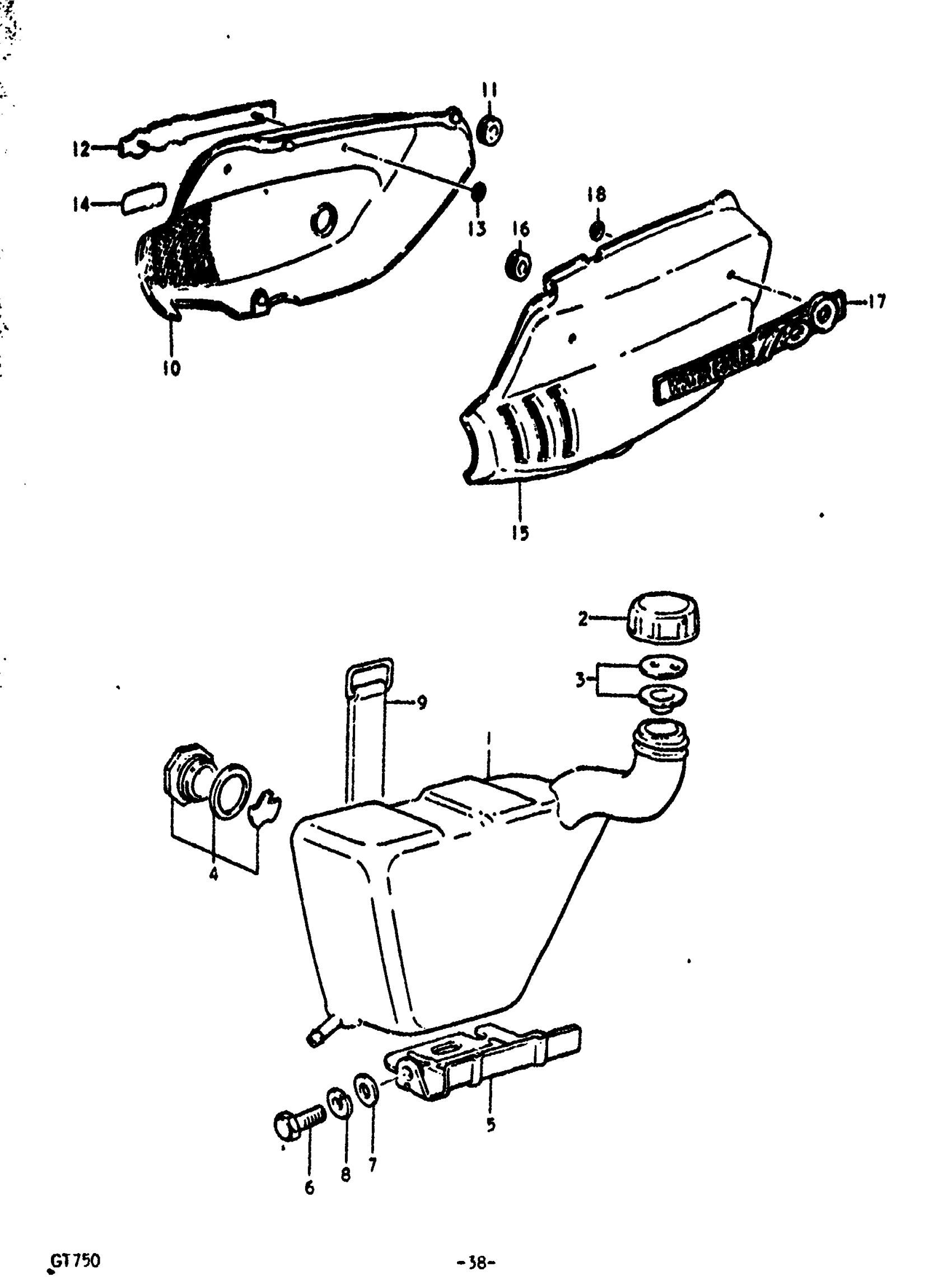

Suzuki GT750 (1972) OIL TANK - FRAME COVER Diagram

#

Description
Price

1

TANK, OIL

44611-31000

Unavailable

2

CAP, OIL TANK | FROM 44651-05000 This part replaces 44651-05001.

44651-05003

$5.05

3

GASKET SET | FROM 44600-33806 This part replaces 44600-35821.

44600-30833

$5.42

4

OIL LEVEL INSPE | FROM 44660-31807 This part replaces 44600-31830.

44600-31832

$11.07

5

HOLDER, OIL TANK

44820-31000

Unavailable

6

BOLT This part replaces 01112-06128.

01500-06127

$1.97

7

WASHER This part replaces 08322-21068.

08322-01067

$2.13

8

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

9

BAND

09462-00055

$6.09

10

COVER, FRAME RH This part replaces 47101-31810-195.

47101-31810

Unavailable

10

COVER, FRAME RH

47101-31810-216

Unavailable

11

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

12

EMBLEM, FRAME COVER | WATER COOLD 750 This part replaces 68141-31000.

68141-31600

$52.33

13

NUT This part replaces 09148-04007.

09148-04032

$2.17

14

EMBLEM | CCI

68171-26000

$3.59

15

COVER, FRAME, L This part replaces 47201-31811-195.

47201-31811

Unavailable

15

COVER, FRAME LH

47201-31811-216

Unavailable

16

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

17

EMBLEM, FRAME COVER | WATER COOLD 750 This part replaces 68141-31000.

68141-31600

$52.33

18

NUT This part replaces 09148-04007.

09148-04032

$2.17
