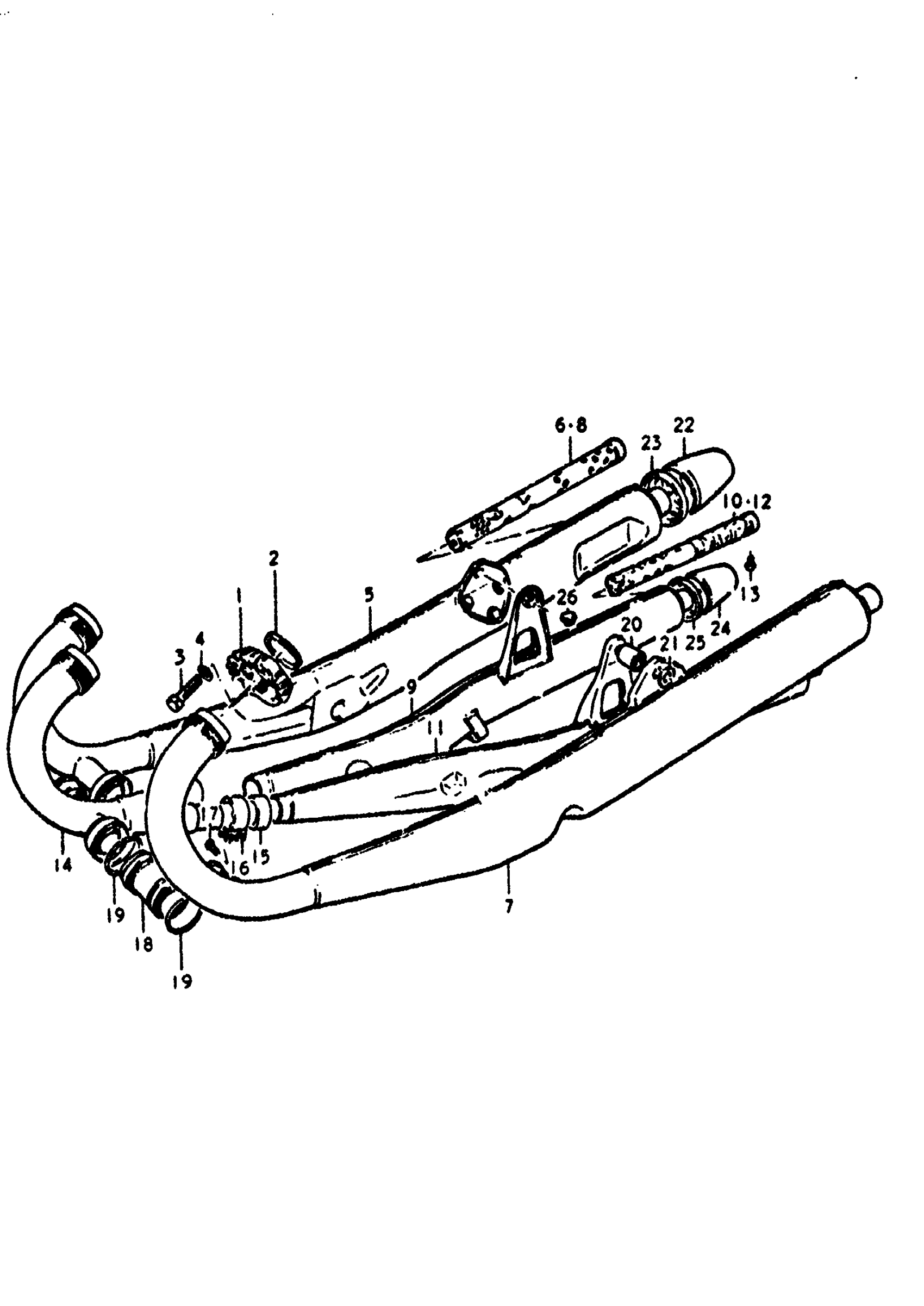

Suzuki GT750 (1972) MUFFLER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 14182-31000.

14182-31001

Unavailable

2

GASKET,EXHAUST This part replaces 14181-15010.

14181-15020

Unavailable

3

BOLT This part replaces 01221-08357.

01204-08357

$2.09

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

NO DESCRIPTION AVAILABLE | Includes Item(s) 6 - 8 This part replaces 14301-31000.

14301-31000-H01

Unavailable

6

PIPE, BAFFLE

14510-31000

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 14302-31000.

14302-31000-H01

Unavailable

8

PIPE, BAFFLE

14510-31000

Unavailable

9

MUFFLER ASSY, CENTER RH | Includes Item(s) 10

14303-31600

Unavailable

10

PIPE, BAFFLE CENTER

14610-31000

Unavailable

11

MUFFLER ASSY, CENTER LH | Includes Item(s) 12

14304-31600

Unavailable

12

PIPE, BAFFLE CENTER

14610-31000

Unavailable

13

SCREW This part replaces 02112-05068.

09125-05122

$2.06

14

PIPE, EXHAUST CENTER

14170-31000

Unavailable

15

CONNECTOR, CENTER MUFFLER This part replaces 14771-06080.

14771-06090

$10.14

16

CLAMP | TO 09402-36706

09402-00048

Unavailable

17

SCREW This part replaces 02112-06208.

02112-06207

$1.78

18

PIPE, EXHAUST COUPLER

14211-31001

Unavailable

19

O-RING This part replaces 09280-44003.

09280-43002

$2.12

20

BUSH MUFFLER This part replaces 09319-10016.

09319-10029

Unavailable

21

WASHER This part replaces 08322-21108.

08322-01107

$2.15

22

COVER, REAR

14860-31000

Unavailable

23

CLIP, MUFFLER REAR COVER

14869-31000

Unavailable

24

COVER, REAR CENTER

14880-31000

Unavailable

25

CLIP, REAR COVER CENTER

14889-31000

Unavailable

26

CUSHION

09321-10007

$2.71
