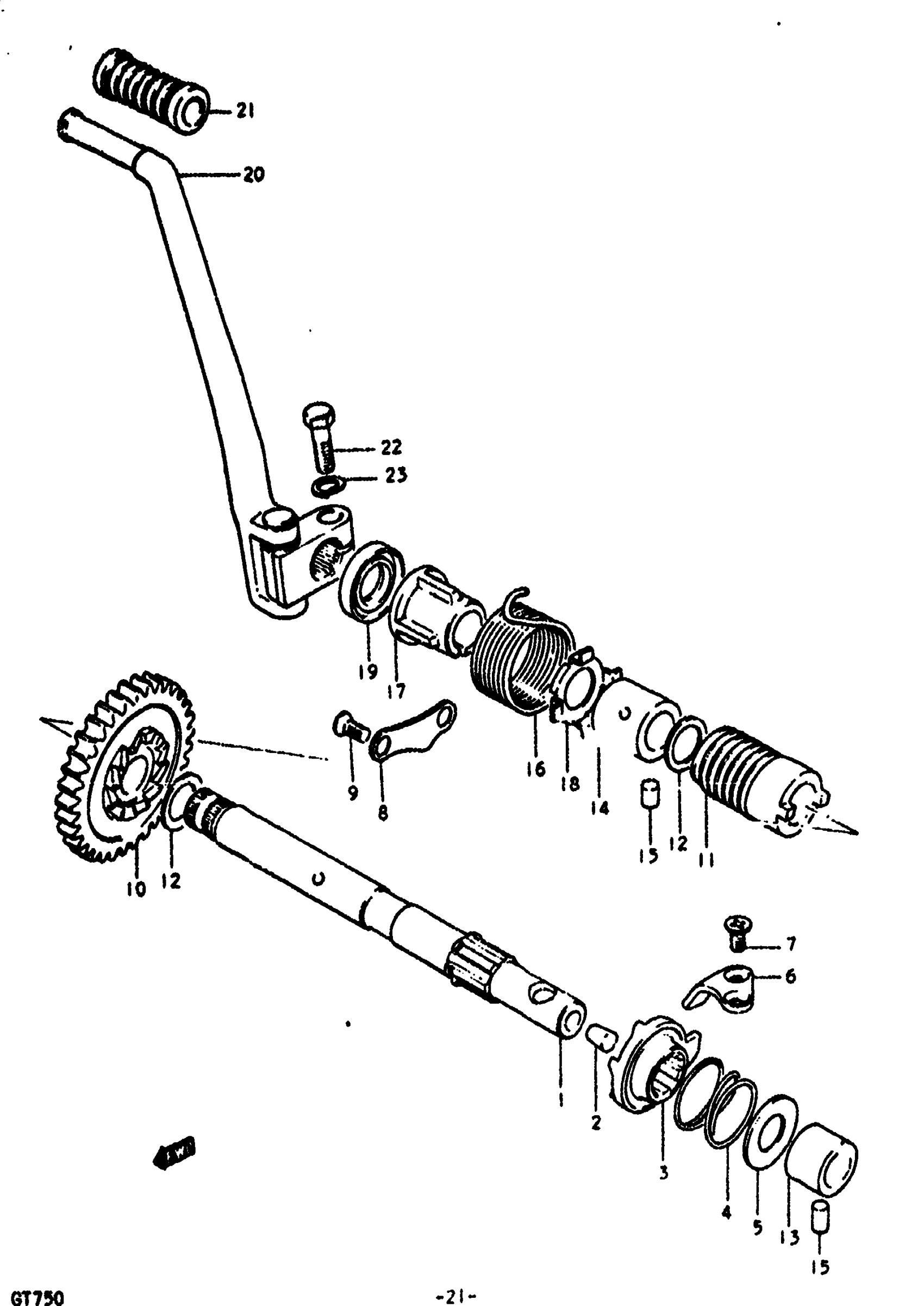

Suzuki GT750 (1972) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER

26211-31000

Unavailable

2

PLUG

09243-09001

Unavailable

3

STARTER, KICK This part replaces 26231-30000.

26231-22A10

$63.88

4

SPRING

09440-32002

$2.27

5

THRUST WASHER

08211-17342

$2.72

6

GUIDE, KICK STARTER

26232-31000

Unavailable

7

SCREW This part replaces 02122-06168.

02122-06167

$1.49

8

PLATE, OIL RESERVOIR

26219-31000

Unavailable

9

SCREW This part replaces 02122-06128.

02122-06127

$1.84

10

GEAR SET, DRIVE | SEE NOTETO 26200-31830

26240-31823

Unavailable

11

GEAR, OIL PUMP DRIVE

16320-31001

Unavailable

12

SHIM (20X28X1) This part replaces 08211-20281.

09181-20167

$2.62

13

BUSHING

09300-17002

Unavailable

14

BUSHING

09300-20012

Unavailable

15

PIN This part replaces 06211-07122.

04221-07129

$1.86

16

SPRING

09448-47002

Unavailable

17

GUIDE, SPRING

26221-30000

Unavailable

18

HOLDER, SPRING

26222-30000

Unavailable

19

OIL SEAL (20X37X7) | FROM 09283-20005

09283-20025

$5.64

20

LEVER ASSY, KICK STARTER | Includes Item(s) 21

26300-31000

Unavailable

21

RUBBER,KICK STA This part replaces 26352-16401.

26352-16402

$3.56

22

BOLT This part replaces 01122-10308.

01500-1030A

$3.16

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
