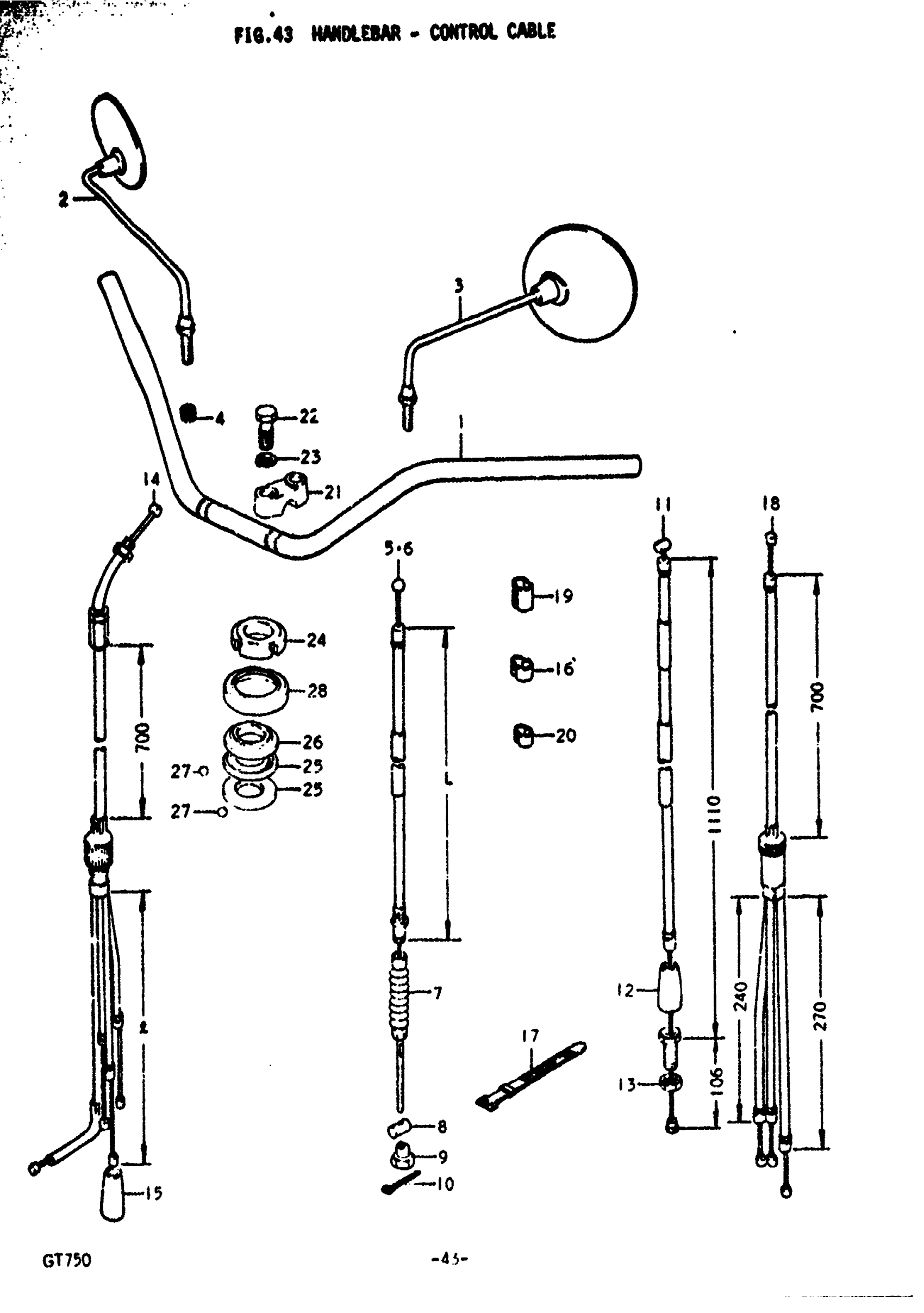

Suzuki GT750 (1972) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR

56111-31000

Unavailable

2

MIRROR ASSY,RR | 8SCREW This part replaces 56500-31010.

56500-23412

$70.29

2

MIRROR ASSY,RR This part replaces 56500-31011.

56500-31014

$48.02

3

MIRROR ASSY,RR | 10SCREW This part replaces 56600-31010.

56600-23412

$82.68

3

MIRROR ASSY,RR This part replaces 56600-31011.

56600-31014

$48.02

4

SPACER | CHANGEEBLE 10SCREW/8SCREW

56741-31700

Unavailable

5

CABLE, FRONT BRAKE RH | L:1100, 2:50

58110-31000

Unavailable

6

CABLE, FRONT BRAKE LH | L:1120, l:50; Includes Item(s) 7

58110-31600

Unavailable

7

DUST SEAL

09287-05001

Unavailable

8

.PIN (13X18) This part replaces 09209-13003.

09209-13018

$3.42

9

.NUT This part replaces 09150-06001.

09150-06010

$3.10

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

CABLE ASSY, CLUTCH | L:1110, 2:106; Includes Item(s) 12 - 13 This part replaces 58200-31000.

58200-31001

Unavailable

12

BOOT

09287-10001

Unavailable

13

NUT This part replaces 08312-11088.

08310-00087

$2.13

14

CABLE ASSY, THROTTLE | L:700, L:415

58300-31000

Unavailable

15

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

16

CLIP

09408-00002

$2.30

17

BAND

09407-12402

$3.04

18

CABLE ASSY, STARTER | L1:700, L2:240, L3:270

58400-31000

Unavailable

19

CLIP

09408-00001

Unavailable

20

CLIP

09408-00002

$2.30

21

HOLDER, HANDLE, UPPER This part replaces 56211-27200-019.

56211-27200-291

$17.90

22

BOLT This part replaces 01221-08357.

01204-08357

$2.09

23

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

24

NUT, STEERING STEM

51631-28000

$17.37

25

INNER RACE, STEERING | FROM 51611-33001

51611-33002

$13.81

26

OUTER RACE, STEERING UPPER

51621-30001

Unavailable

27

STEEL BALL

06111-08003

$1.49

28

DUST SEAL, STEERING UPPER

51643-30000

Unavailable
