Partiron

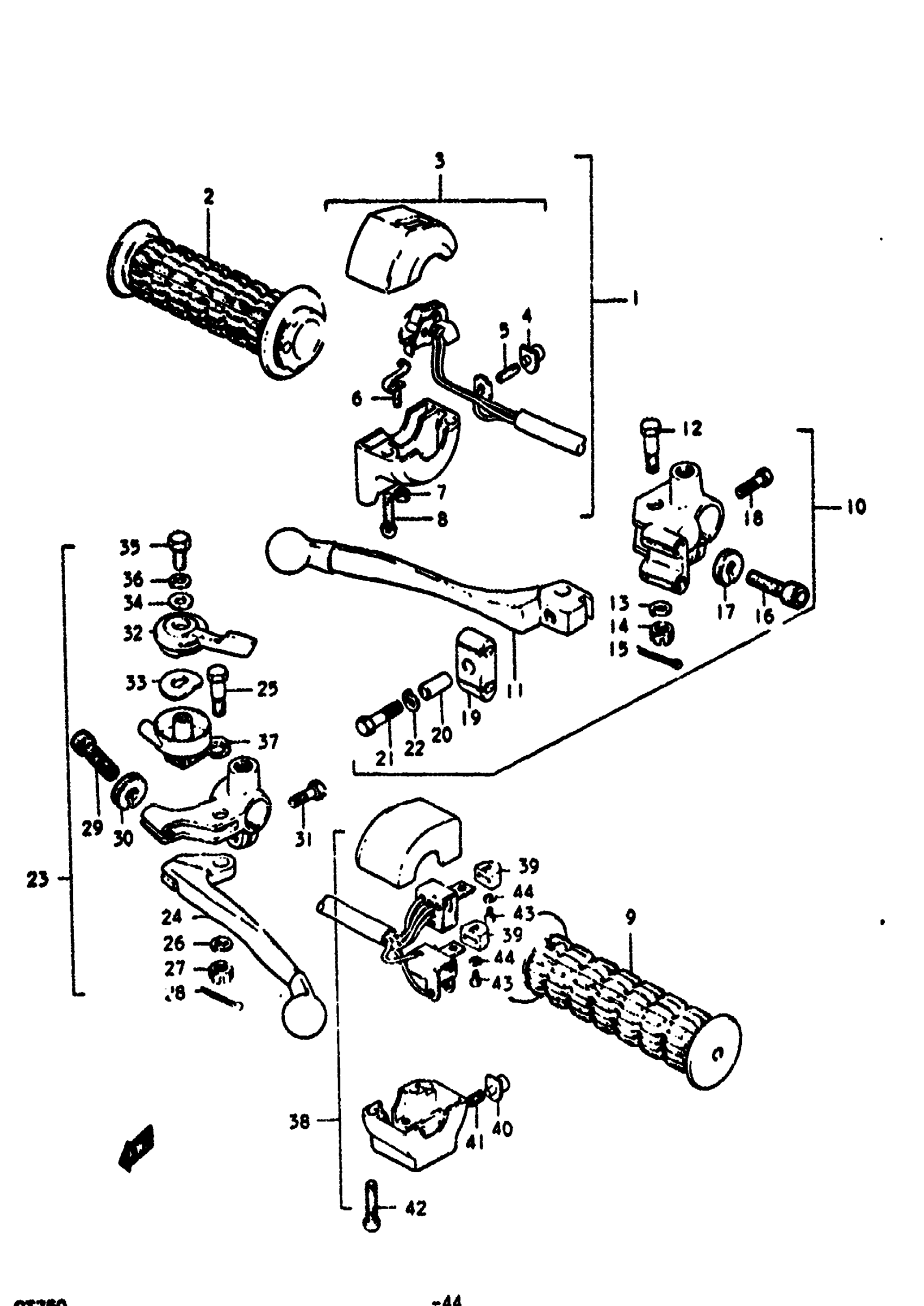

Suzuki GT750 (1972) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP ASSY, THROTTLE | FROM 57100-31010; Includes Item(s) 2 - 8 This part replaces 57100-31011.

57100-31013

Unavailable

2

GRIP, THROTTLE | FROM 57110-15110

57110-31012

Unavailable

3

NO DESCRIPTION AVAILABLE | FROM 57100-31818 This part replaces 57100-31830.

57100-31831

Unavailable

4

BUTTON, STARTER

57370-01311

Unavailable

5

SPRING, STARTER BUTTON

57382-01311

Unavailable

6

ADJUSTER, THROTTLE GRIP

57170-11011

Unavailable

7

NUT This part replaces 08311-11058.

08310-00057

$1.84

8

SCREW This part replaces 02111-05257.

02112-05257

$1.49

9

GRIP, LH

57211-15110

Unavailable

10

LEVER ASSY, BRAKE | Includes Item(s) 11 - 22

57300-31010

Unavailable

11

LEVER, BRAKE

57421-31010

Unavailable

12

BOLT, LEVER PLVOT

57431-31010

$9.32

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

NUT

57433-11010

$5.64

15

PIN This part replaces 04111-16158.

04111-1620A

$1.49

16

ADJUSTER, CABLE

57441-11010

$5.62

17

NUT

57442-11010

$2.79

18

BOLT | FROM 57451-11010 This part replaces 01112-06208.

01500-06207

$2.28

19

PIECE, CABLE END

57452-31010

Unavailable

20

SPACER

57453-31010

Unavailable

21

BOLT

57454-31010

Unavailable

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

NO DESCRIPTION AVAILABLE | Includes Item(s) 24 - 37 This part replaces 57500-31010.

57500-31601

Unavailable

24

LEVER, CLUTCH This part replaces 57620-31010.

57620-45010

Unavailable

25

BOLT

57431-31010

$9.32

26

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

27

NUT

57433-11010

$5.64

28

PIN This part replaces 04111-16158.

04111-1620A

$1.49

29

ADJUSTER, CABLE

57441-11010

$5.62

30

NUT

57442-11010

$2.79

31

BOLT This part replaces 01112-06208.

01500-06207

$2.28

32

LEVER, STARTER

58721-03010

Unavailable

33

WASHER, ADJUSTER

58722-03010

$3.71

34

.WASHER (6.5X16X1) This part replaces 58723-03010.

09160-06129

$2.30

35

BOLT This part replaces 01112-06128.

01500-06127

$1.97

36

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

37

BODY, STARTER LEVER This part replaces 58710-31010.

58710-31600

Unavailable

38

SWITCH ASSY, HANDLE LH | Includes Item(s) 39 - 44

57700-31600

Unavailable

39

KNOB, SWITCH

57742-26010

Unavailable

40

BUTTON, HORN

57850-31010

Unavailable

41

SPRING, HORN BUTTON

57761-26010

Unavailable

42

SCREW

09125-05109

Unavailable

43

SCREW This part replaces 02111-03067.

02112-0306B

$1.59

44

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49
