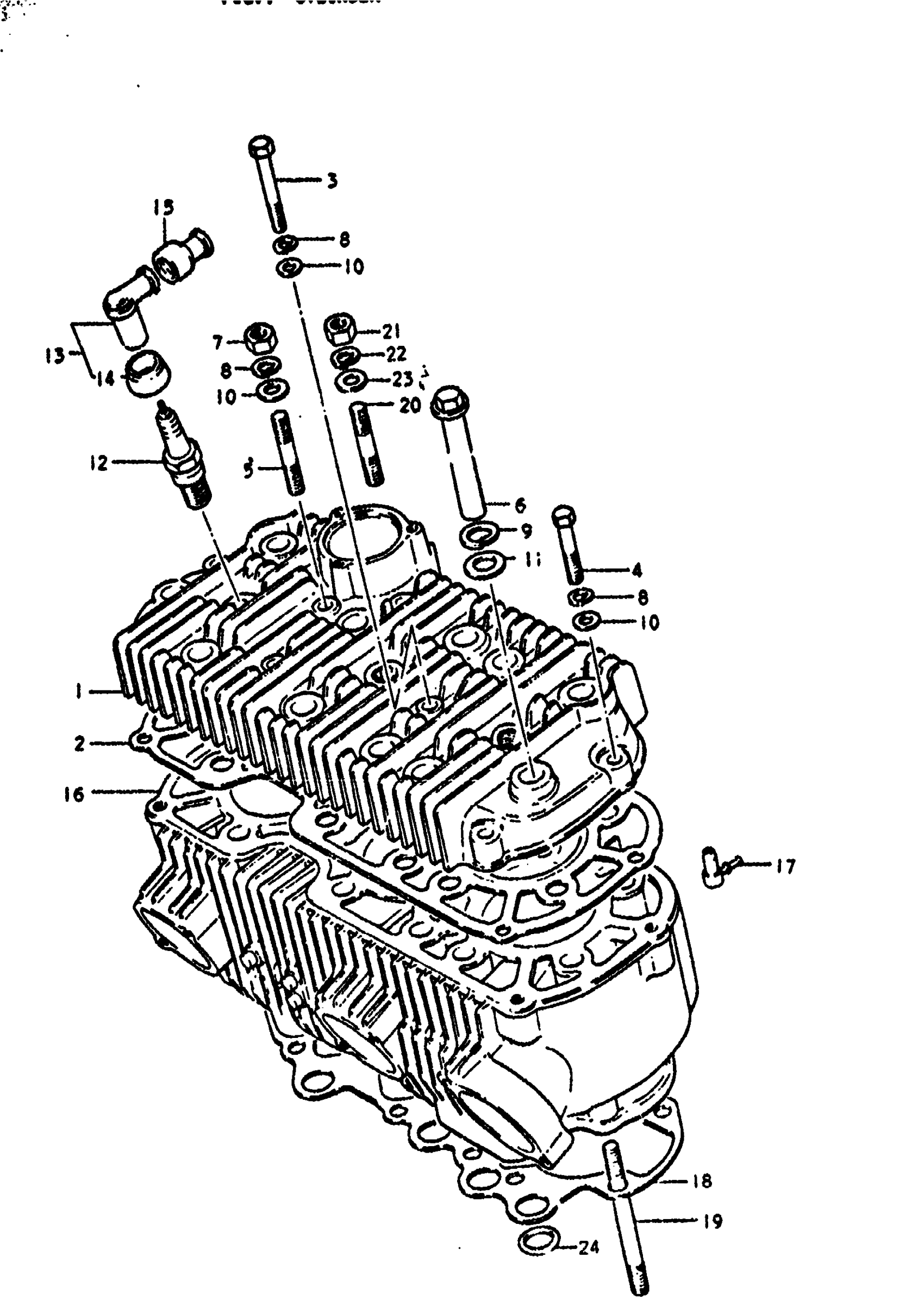

Suzuki GT750 (1972) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | FROM 11111-31001

11111-31003

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11141-31002.

11141-31010

Unavailable

3

BOLT | FROM 09104-08009 This part replaces 01221-08557.

01204-08557

$2.85

4

BOLT | FROM 09104-08008 This part replaces 01221-08407.

01204-08407

$2.12

5

8X45 STUD BOLT | FROM 09108-08035 This part replaces 01421-08458.

01421-0845A

$2.74

6

NUT

09159-10010

Unavailable

7

NUT This part replaces 08312-11088.

08310-00087

$2.13

8

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

9

WASHER,LOCK This part replaces 08321-21148.

08321-0114A

$2.10

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

WASHER

09168-14008

$7.82

12

SPARK PLUG (NGK,BR7ES) | NGK B-7ES This part replaces 09482-00089.

09482-00117

$3.03

12

SPARK PLUG | ND W22ES

09482-00090

Unavailable

13

CAP, SPARK PLUG | Includes Item(s) 14 This part replaces 33510-31010.

33510-97313

$14.73

14

SEAL, SPARK PLUG CAP

33541-31010

Unavailable

15

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

16

CYLINDER | TO 11210-31600; Includes Item(s) 17 This part replaces 11210-31003.

11210-31600

Unavailable

17

UNION, OIL HOSE This part replaces 16910-31000.

16910-31010

$6.64

18

GASKET,CYLINDER This part replaces 11241-31000.

11241-31001

$21.77

19

STUD BOLT

09108-10006

Unavailable

20

BOLT,STUD This part replaces 01421-10258.

01421-1025B

$3.16

21

NUT This part replaces 08312-12108.

08310-00107

$2.19

22

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

23

WASHER This part replaces 08322-11108.

08322-01107

$2.15

24

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65
