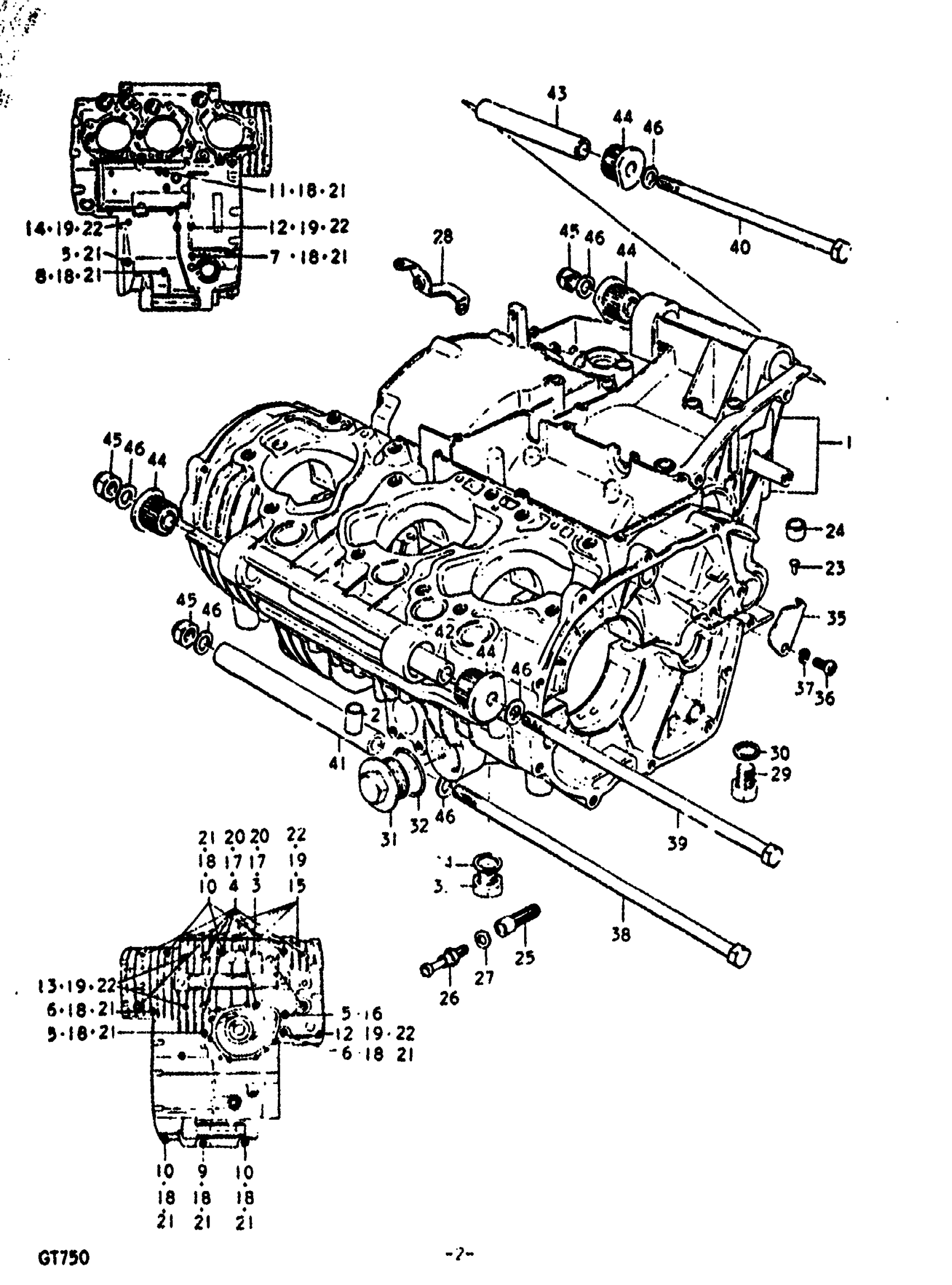

Suzuki GT750 (1972) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | TO 11300-31845

11304-31802

Unavailable

1

CRANKCASE SET | TO 11300-31850 USED WITH 09263-16012 AND 09284-16002

11300-31845

Unavailable

1

CRANKCASE SET | TO 11300-31851 This part replaces 11300-31850.

11300-31852

Unavailable

1

CRANKCASE SET | TO 11300-31852 USED WITH 24221-37000; Includes Item(s) 2 - 28

11300-31851

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

NO DESCRIPTION AVAILABLE | 10x130 This part replaces 09100-10070.

09100-10280

Unavailable

4

BOLT | 10x100

09100-10035

Unavailable

5

BOLT | 8x110

09100-08026

Unavailable

6

BOLT This part replaces 01122-08958.

01500-0895A

$4.32

7

BOLT This part replaces 01122-08858.

01500-0885B

$4.25

8

BOLT This part replaces 01122-08758.

01500-0875B

$4.10

9

BOLT This part replaces 01122-08508.

01500-08507

$3.05

10

BOLT This part replaces 01122-08508.

01500-08507

$3.05

11

BOLT This part replaces 01122-08408.

01500-0840A

$2.60

12

BOLT | 6x110

09100-06060

Unavailable

13

BOLT This part replaces 01112-06958.

01500-0695B

$20.93

14

BOLT This part replaces 01112-06858.

01500-0685B

$3.85

15

BOLT This part replaces 01112-06358.

64455-07L00

$1.59

16

GASKET (8.2X14X1) | 8.2x14x1.0 This part replaces 09168-08008.

09168-08016

$1.65

17

WASHER This part replaces 08322-11108.

08322-01107

$2.15

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

PIN This part replaces 09220-04001.

09223-04001

$1.68

24

BUSHING, WATER PUMP DRIVEN

09304-10003

Unavailable

25

STRAINER, SRIS | USED TO 11304-31802 TO 16521-31010

16521-31080

Unavailable

25

STRAINER, SRIS

16521-31010

Unavailable

26

CHECK VALVE, SRIS | .THREADED

16710-31012

Unavailable

26

CHECK VALVE, SRIS | NOT INCLUDES NEW CRANKCASE SET

16710-31011

Unavailable

27

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

28

HOLDER, OIL PUMP ADJUSTER

16293-31000

Unavailable

29

PLUG, DRAIN | FROM 09247-14010 This part replaces 09247-14007.

09247-14025

$2.79

30

GASKET

09168-14004

$1.83

31

PLUG, WATER DRAIN

09247-32001

Unavailable

32

O RING, GEAR HOUSING This part replaces 09280-33001.

09280-33005

$2.64

33

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

34

GASKET

09168-14004

$1.83

35

PLATE, TACHOMETER OIL RESERVOI

26448-31000

Unavailable

36

SCREW This part replaces 02112-06128.

02112-06127

$1.84

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

38

BOLT | 10x310

09100-10075

Unavailable

39

NO DESCRIPTION AVAILABLE | 10x270 This part replaces 09100-10074.

09100-10074-XC0

Unavailable

40

BOLT 0.1X185 | 10x185 This part replaces 09100-10073.

09100-10267

$12.22

41

SPACER | 10.2x16x182

09180-10031

Unavailable

42

SPACER | 10.2x16x164

09180-10032

Unavailable

43

SPACER | 10.2x16x107

09180-10030

Unavailable

44

BUSH This part replaces 09319-10015.

09319-10084

Unavailable

45

NUT | FROM 09159-10001

09159-10011

$3.23

46

WASHER This part replaces 08322-11108.

08322-01107

$2.15
