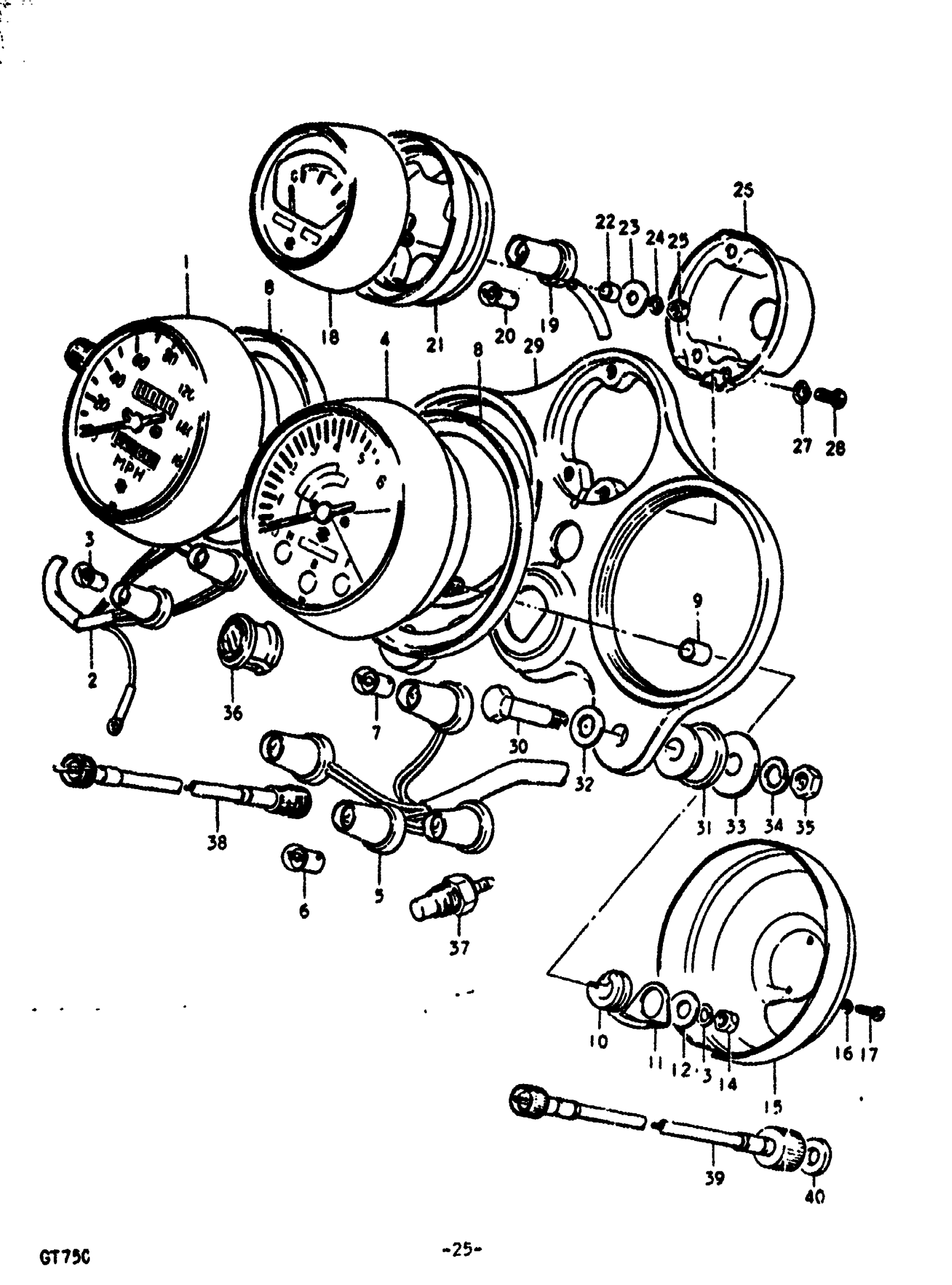

Suzuki GT750 (1972) COMBINATION METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | FROM 34100-31610-999; Includes Item(s) 2 - 3

34100-31610

Unavailable

2

SOCKET ASSY

34170-31610

Unavailable

3

BULB | 12V, 3.4W

09471-12001

$1.65

4

TACHOMETER ASSY | FROM 34200-31011-999; Includes Item(s) 5 - 7

34200-31011

Unavailable

5

SOCKET

34270-31011

Unavailable

6

BULB | 12V, 3.4W

09471-12001

$1.65

7

BULB | 12V, 1.7W

09471-12004

$2.69

8

CUSHION

34181-31000

Unavailable

9

SPACER

34972-31000

Unavailable

10

CUSHION

34282-31000

Unavailable

11

BRACKET

34951-31000

Unavailable

12

WASHER (5.5X16X1.2) | 5.5X16X1.2 This part replaces 09160-05017.

09160-05043

$2.30

13

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

14

NUT This part replaces 08311-11058.

08310-00057

$1.84

15

PLATE, UNDER

34960-31000

Unavailable

16

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

17

SCREW This part replaces 02111-03108.

02112-03107

$1.49

18

THERMOMETER ASSY | FROM 34400-31011-999; Includes Item(s) 19 - 20

34400-31011

Unavailable

19

SOCKET ASSY

34470-31011

Unavailable

20

BULB | 12V, 3.4W

09471-12001

$1.65

21

CUSHION

34481-31000

Unavailable

22

SPACER

34491-31000

Unavailable

23

WASHER | 4.5x14x1

09160-04001

Unavailable

24

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

25

NUT This part replaces 08311-11048.

08310-00047

$2.23

26

PLATE, UNDER

34970-31000

Unavailable

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

28

SCREW This part replaces 02111-05127.

02112-05127

$1.97

29

BRACKET

34950-31010

Unavailable

30

BOLT | TO 09111-08028

34952-31000

Unavailable

31

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

32

WASHER This part replaces 08322-11108.

08322-01107

$2.15

33

WASHER | 8.5x29x2

09160-08006

Unavailable

34

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

35

NUT This part replaces 08312-11088.

08310-00087

$2.13

36

CAP, COMBINATION METER

34995-31600

Unavailable

37

GAGE ASSY, TEMPERATURE

34850-65011

Unavailable

38

CABLE ASSY, SPEEDOMETER | FROM 34910-31030

34910-18431

Unavailable

39

CABLE ASSY, TACHOMETER | FROM 34940-31030; Includes Item(s) 40

34940-18131

Unavailable

40

OIL SEAL This part replaces 34928-08430.

34943-11030

$3.11
