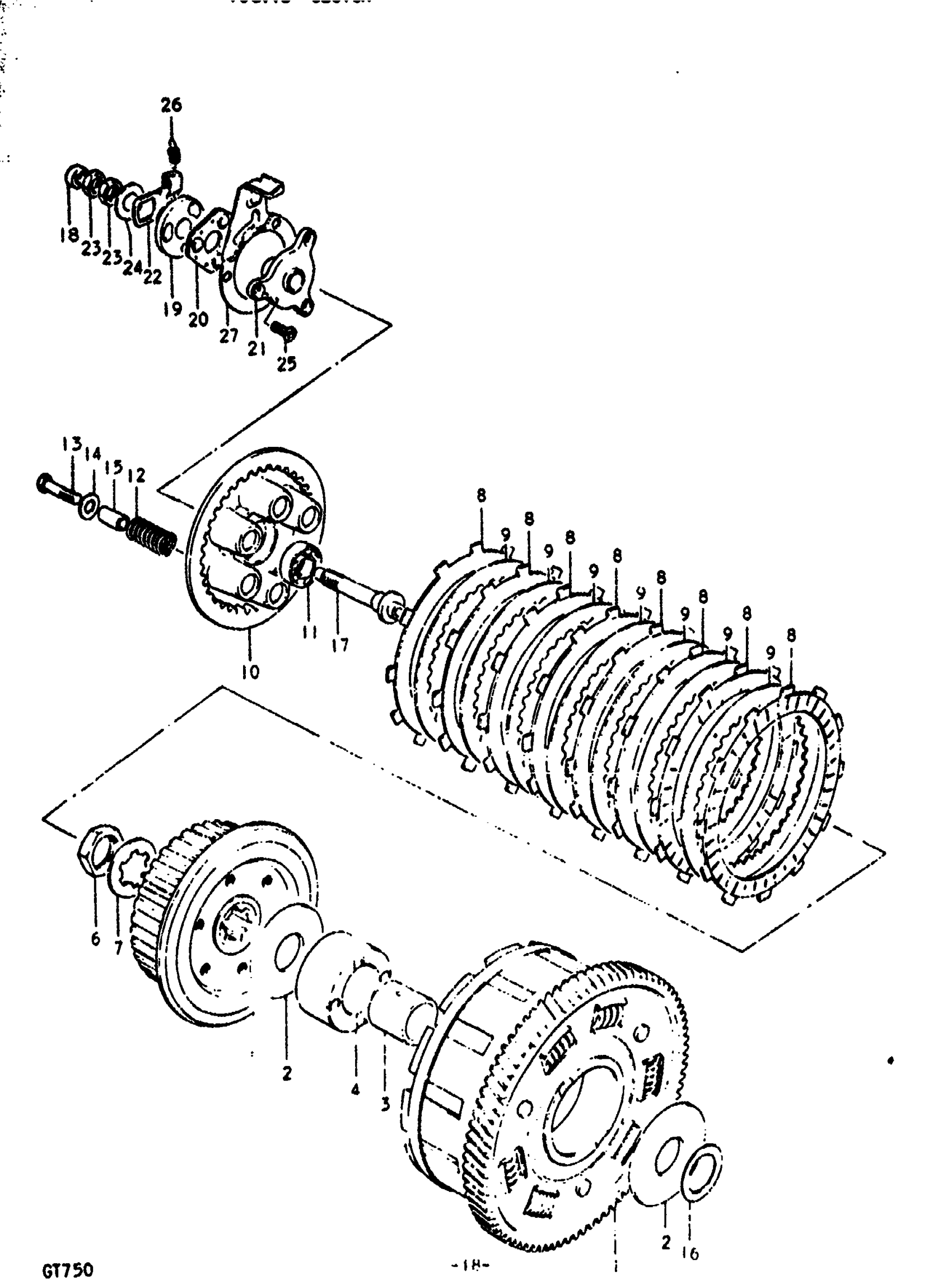

Suzuki GT750 (1972) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | NT:82 FROM 21200-31000 This part replaces 21200-31002.

21200-31700

Unavailable

2

WASHER | 25x64x3.5

09160-25020

Unavailable

3

SPACER | 25x31x28

09180-25034

Unavailable

4

SPACER This part replaces 21250-31000.

21251-49200

Unavailable

5

HUB, SLEEVE

21411-31000

Unavailable

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

7

WASHER | 21.5x42x0.8

09167-25007

Unavailable

8

PLATE, DRIVE | FROM 21441-31000 This part replaces 21441-31600.

21441-45001

$24.07

9

PLATE, DRIVEN

21451-31000

$10.40

10

DISK, PRESSURE

21462-31000

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 08113-60030.

09262-17037

Unavailable

12

SPRING

09440-19007

$2.52

13

BOLT This part replaces 01122-08408.

01500-0840A

$2.60

14

WASHER | 8.2x20x1.6 This part replaces 08322-21088.

08322-01087

$2.13

15

SPACER | 8x12x23.2

09180-08025

Unavailable

16

SHIM (T:0.50) This part replaces 08221-25365.

09181-25186

$3.93

17

SHAFT, RELEASE

23121-31000

Unavailable

18

OIL SEAL This part replaces 09282-10003.

09282-10001

$4.92

19

BALL GUIDE, RELEASE OUTER This part replaces 23211-31000.

23211-31001

Unavailable

20

BALL, RELEASE This part replaces 23250-31001.

23250-31003

$28.18

21

BALL GUIDE, RELEASE INNER | FROM 23231-31000

23231-31001

Unavailable

22

ARM, RELEASE

23220-31001

Unavailable

23

NUT, FIXED DRIVE FACE This part replaces 08312-31128.

09140-12039

$3.05

24

WASHER | 12.2x24x1

09160-12013

Unavailable

25

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

26

SPRING

09443-08001

$2.92

27

PLATE, OIL RESERVOIR

23510-31000

Unavailable
